30
DSM-G600 User’s Manual
D-Link Systems, Inc.

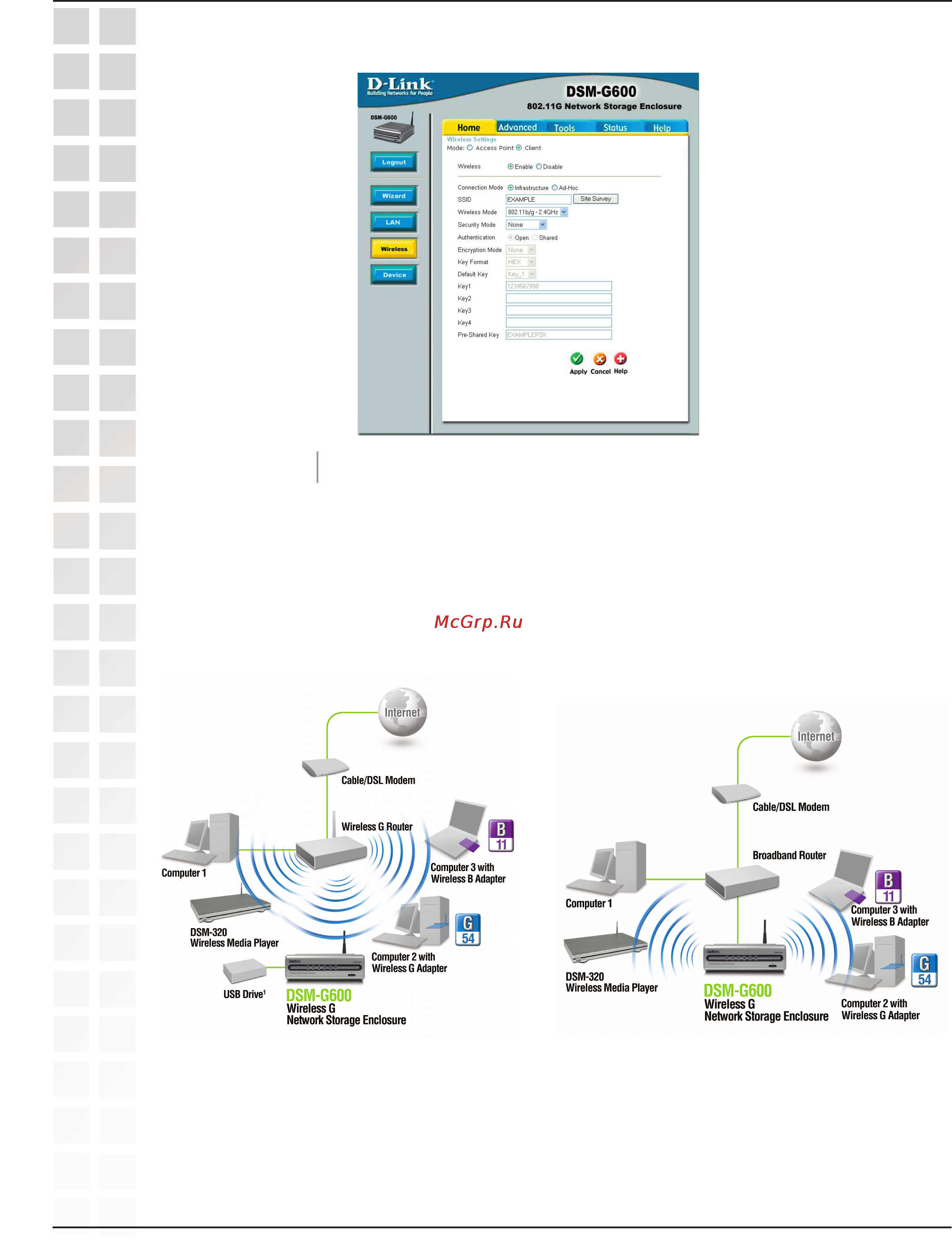

Using the Configuration Utility
Home > Wireless
Mode:
Select Client or Access Point.
Select Client if you want to connect to an access point or wireless router. Select
Access Point if you want to connect wireless clients directly to the DSM-G600. Below
are examples of typical network setups.
Client Mode
Access Point
Mode
