DSM-G600 User’s Manual
D-Link Systems, Inc.
Networking Basics
Input your DNS server addresses. (Note: If you are entering a DNS server, you
must enter the IP address of the default gateway.)
The DNS server information will be supplied by your ISP (Internet Service Provider.)
Click OK.

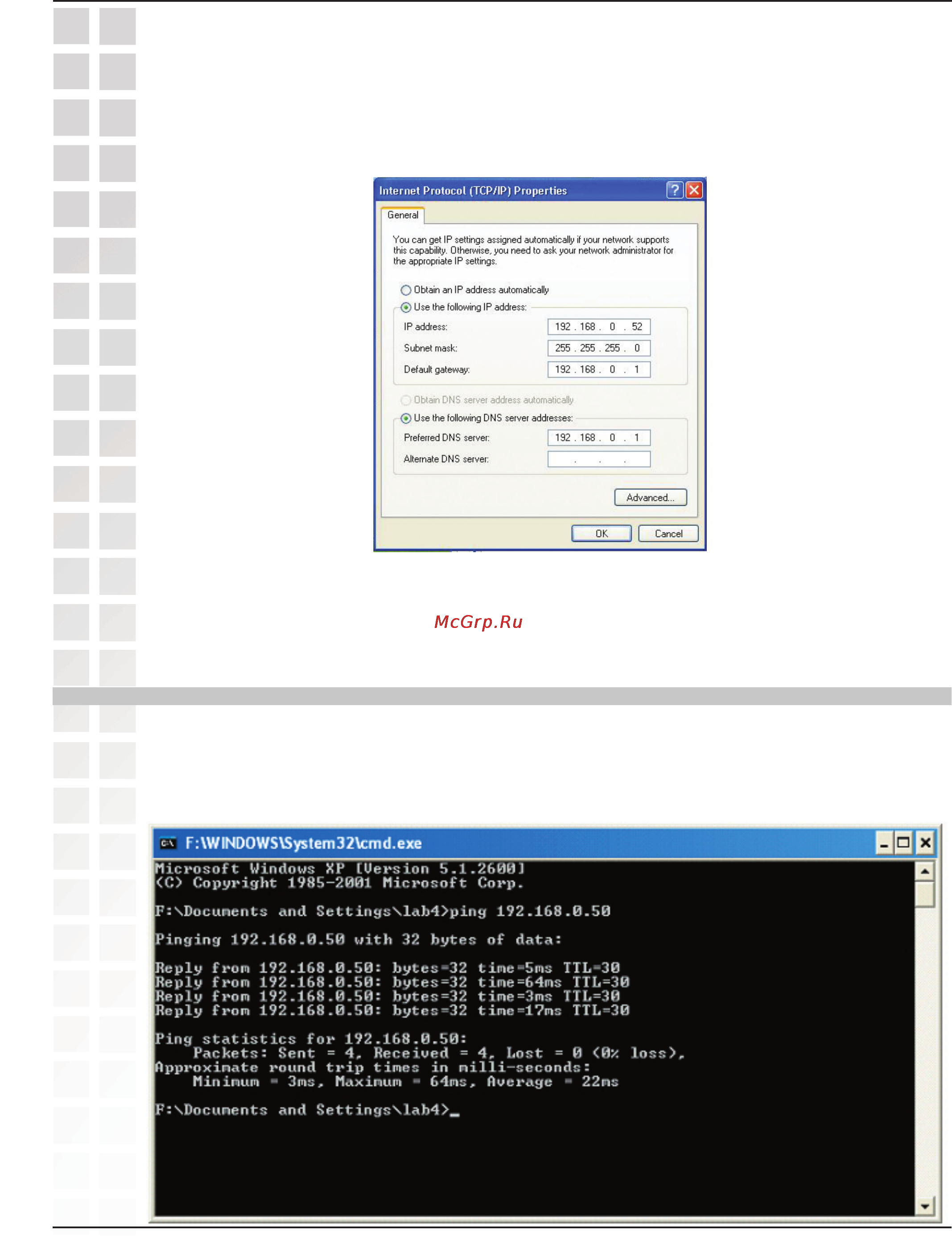

Go to Start > Run > type cmd. A window similar to this one will appear. Type ping
xxx.xxx.xxx.xxx, where xxx is the IP address of the wireless router or access point.
A good wireless connection will show four replies from the wireless router or access
point, as shown.
Checking the Wireless Connection by Pinging
in Windows XP and 2000
