52
DSM-G600 User’s Manual
D-Link Systems, Inc.
Using the Configuration Utility

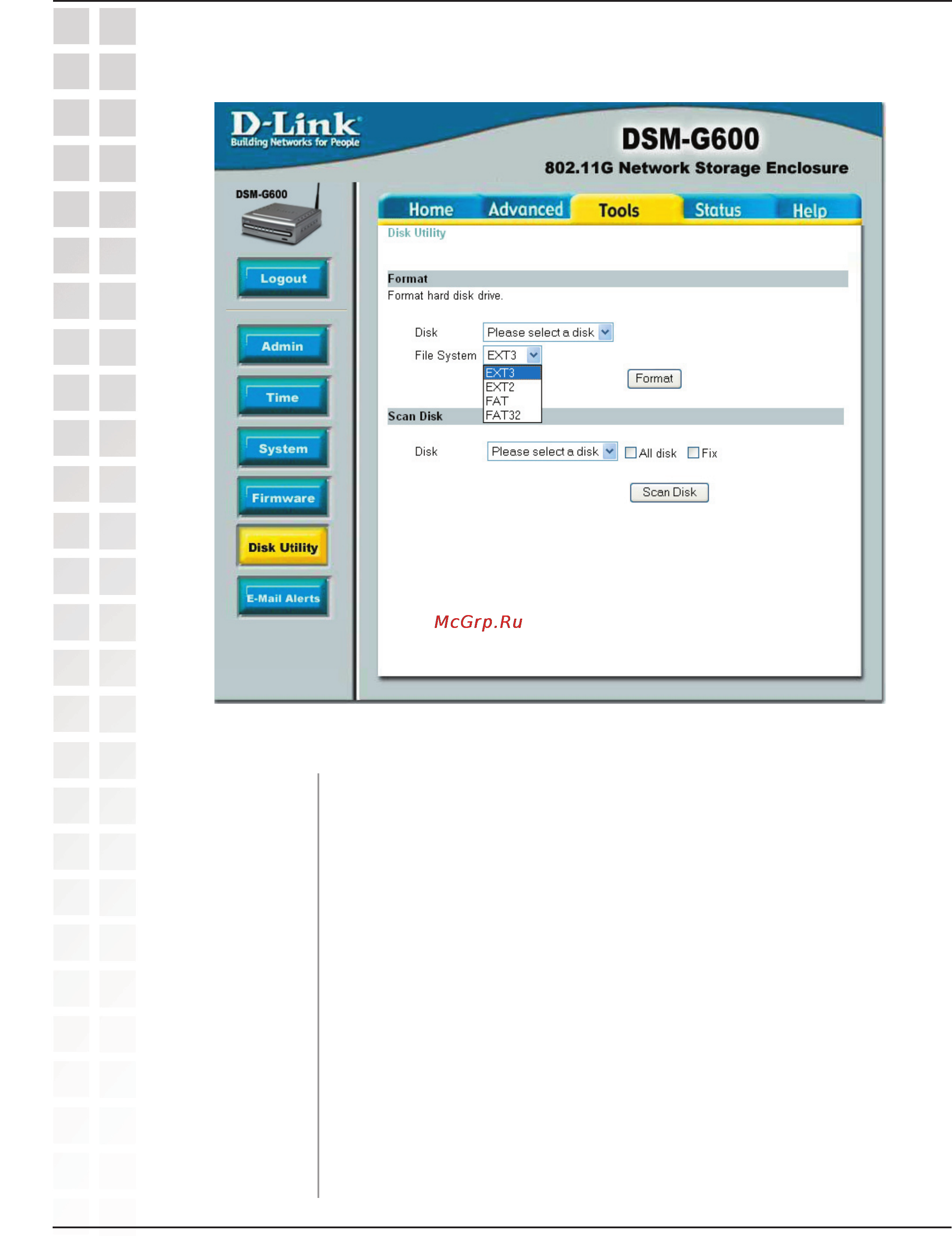

Tools > Disk Utility
Format Disk:
Select the hard drive you would like to format from the drop-down
menu. Formatting the drive will erase all data on the drive.
Select the file type you want to format your drive to: EXT3, EXT2,
FAT
, or FAT32.
Click the
Format button to start the formatting process.
Select the hard drive you want to scan for errors from the drop-down
menu.
Check to select all drives.
The DSM-G600 will automatically fix any errors found. You cannot
uncheck this option.
Click the
Scan Disk button to start the scanning process.
File System:
Format Button:
Scan Disk:
All Disk:
Fix:
Scan Disk Button:
