![D-Link DSM-G600 Инструкция по эксплуатации онлайн [62/74] 42293](/views2/1045701/page62/bg3e.png)
62
DSM-G600 User’s Manual
D-Link Systems, Inc.

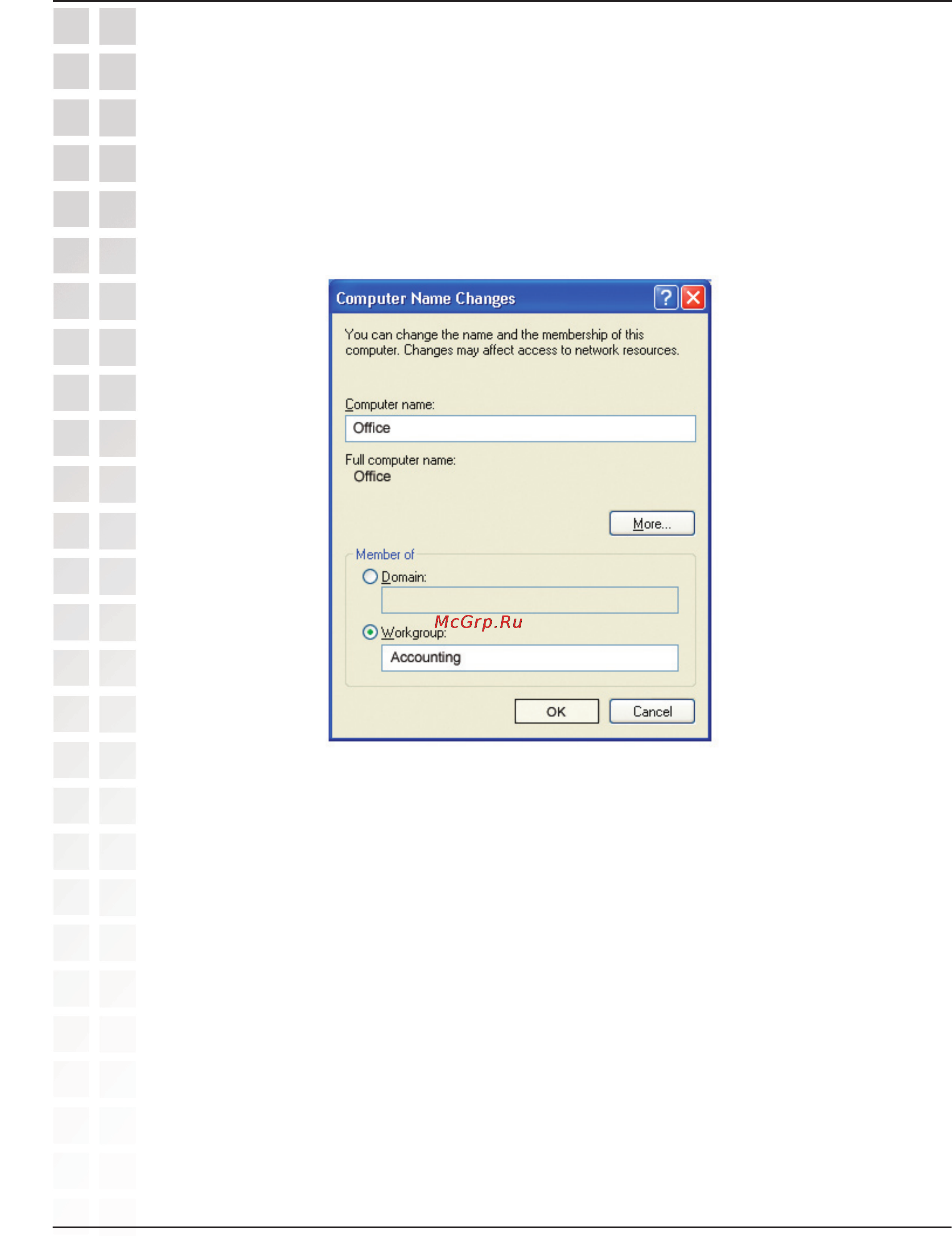

In this window, enter the Computer name.
Select Workgroup and enter the name of the Workgroup.
All computers on your network must have the same Workgroup name.
Click OK.
Networking Basics
