Epson GT-9500 [23/54] Control option

7/8/96-B 21

Control option

(1) Code: ESC e

ASCII: ESC e

decimal: 27,101 i

hexadecimal: 1B,65 i

(2) Function: Control enable or disenable of the option equipment.

i = 00H : Disable the option equipment.

i = 01H : Enable the option equipment(TPU,ADF Single Side)

i = 02H : Enable the option equipment(Duplex Scanning ADF).

Default value : i=00H

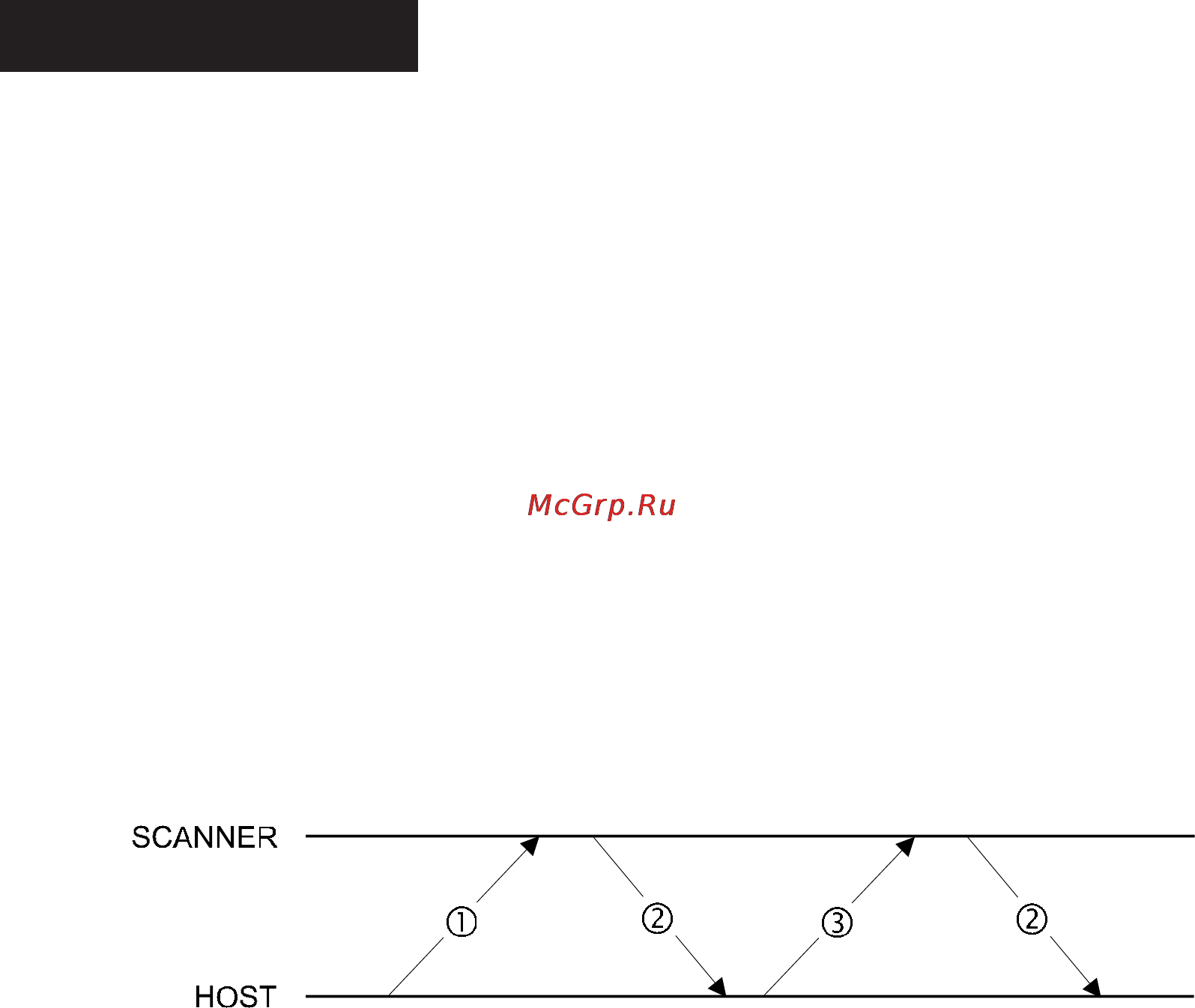

(3) Handshaking

1) ESC e code

2) Ack( 06H )

3) parameter i

Note1:This is available only when the optional equipment is installed.

If the option equipment is not installed, the scanner sends NACK code

after receiving it.

Note2:This code should be set before [ESC C] because the color page scanning

is disable in the ADF.

Note3:This code should be set before [ESC A],[ESC R],[ESC H],because these

command setting are reset when this code is received.
