Epson GT-9500 [29/54] Initialize

7/8/96-B 27

Initialize

(1) Code: ESC @

ASCII: ESC @

decimal: 27,64

hexadecimal: 1B,40

(2) Function: Initializes the scanner.

All parameters except down loaded data are initialized to

the default value. Down loaded data is remained.

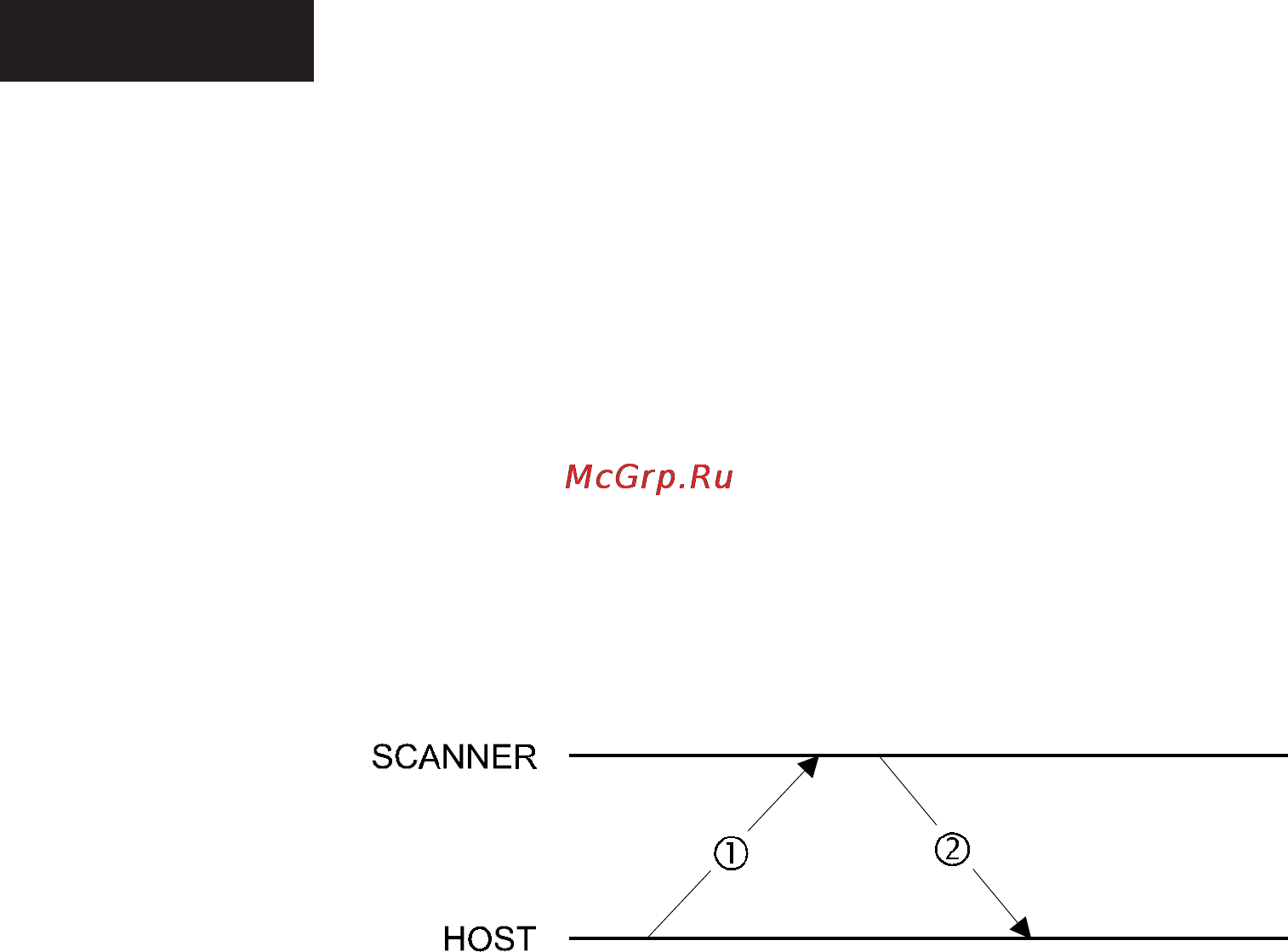

(3) Handshaking

1) ESC @ code

2) ACK( 06H )
