Epson GT-9500 [31/54] Set zooming

7/8/96-B 29

Set zooming

(1) Code: ESC H

ASCII: ESC H i1 i2

decimal: 27,72 i1 i2

hexadecimal: 1B,48 i1 i2

(2) Function: Sets zooming values of main scan and sub scan in a

unit of percent by 1% step.

50% ≤ i1, i2 ≤ 200%

Parameters:

i1: Main scan zooming data, in %

i2: Sub scan zooming data, in %

Default values: i1 = 100, i2 = 100(actual size)

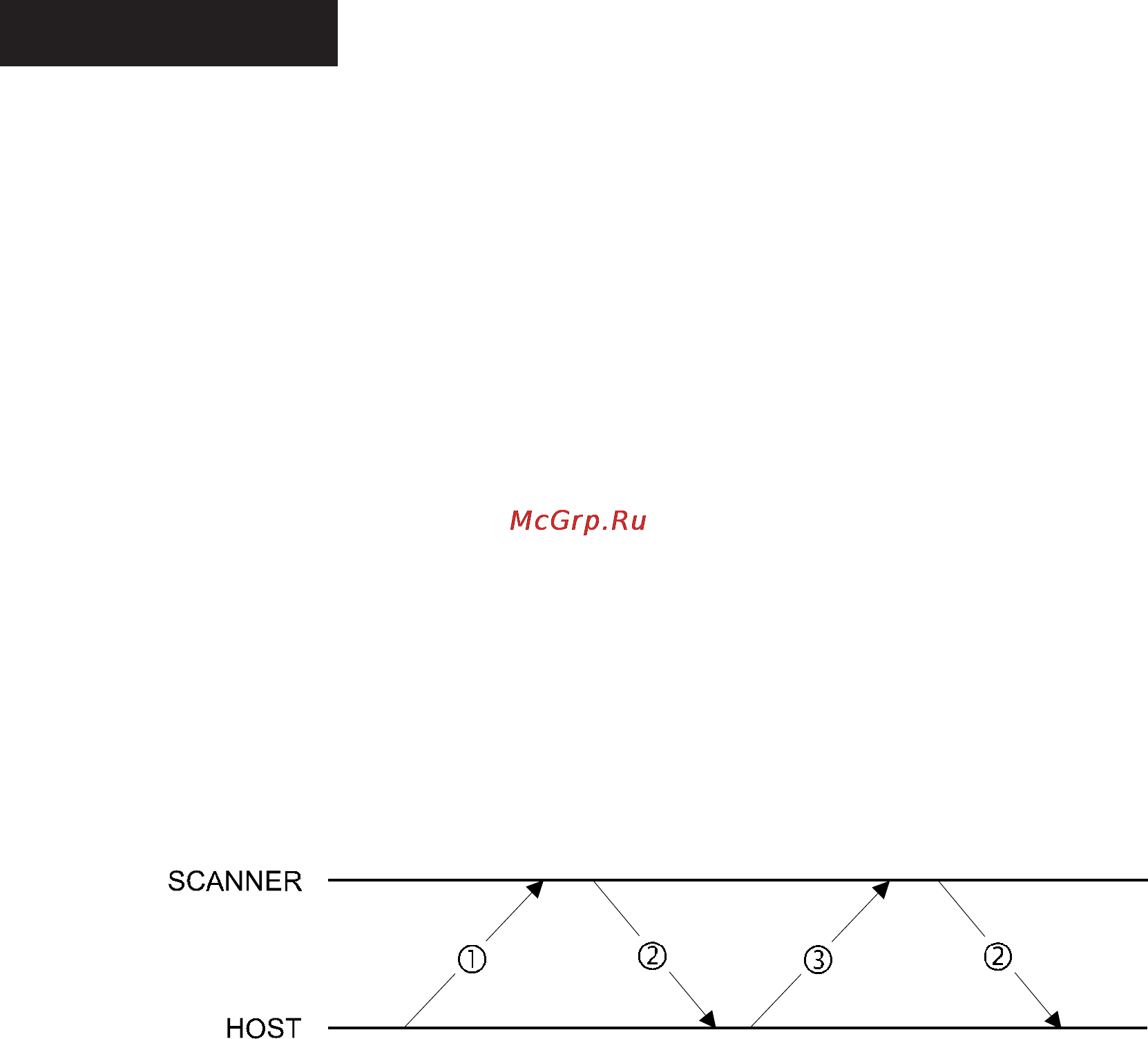

(3) Handshaking

1) ESC H code

2) ACK( 06H )

3) The zooming parameters i1 and i2

Note: When the scanner accepts this control code, the reading area is reset

to the maximum value allowed in the current resolution and zoom

settings. Therefore, zoom should be set before setting the reading area.

(Refer to ESC A)
