Epson GT-9500 [36/54] Mirroring

34 7/8/96-B

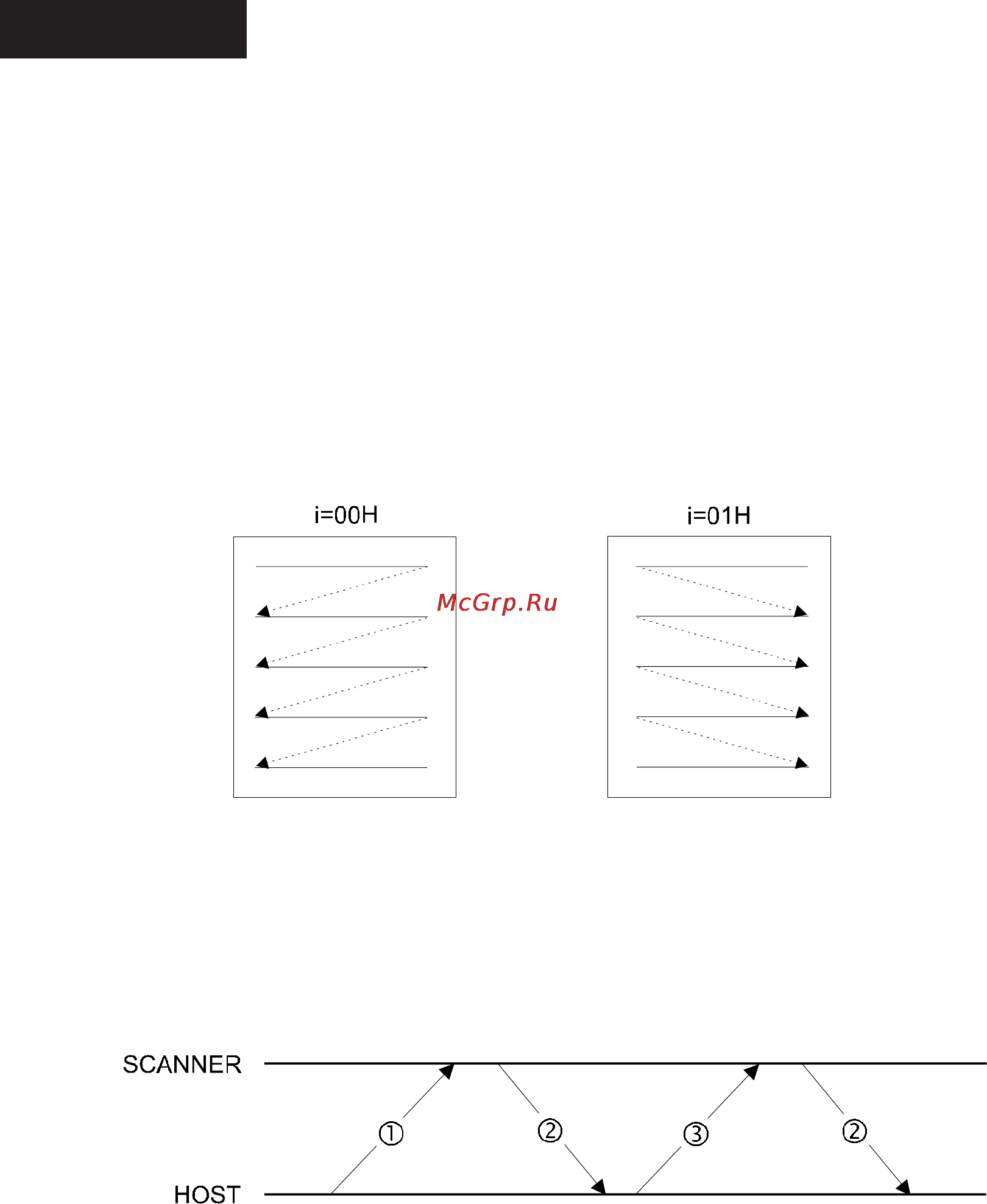

Mirroring

(1) Code: ESC K

ASCII: ESC K i

decimal: 27,75 i

hexadecimal: 1B,4B i

(2) Functions:

i = 00H : Left top first

i = 01H : Rigt top first

Default value : i = 00H

(3) Handshaking

1) ESC K code

2) ACK( 06H )

3) i

Note: Whether parameter “i”=1,or 0, the position of origin is not change.
