Epson GT-9500 [34/54] Set data format

32 7/8/96-B

DDDDDDDD

n n+1 n+2 n+3 n+4 n+5 n+6 n+7

D1 D0 D1 D0 D1 D0 D1 D0

n n+1

n+2

n+3

D3 D2 D1 D0 D3 D2 D1 D0

n+1

MSB LSB

D7 D6 D5 D4 D3 D2 D1 D0

Set data format

(1) Code: ESC D

ASCII: ESC D i

decimal: 27,68 i

hexadecimal: 1B,44 i

(2) Function: Specifies the number of bits per one pixel as the data format in the range from

1 to 8 bits.

Default value : i = 01H

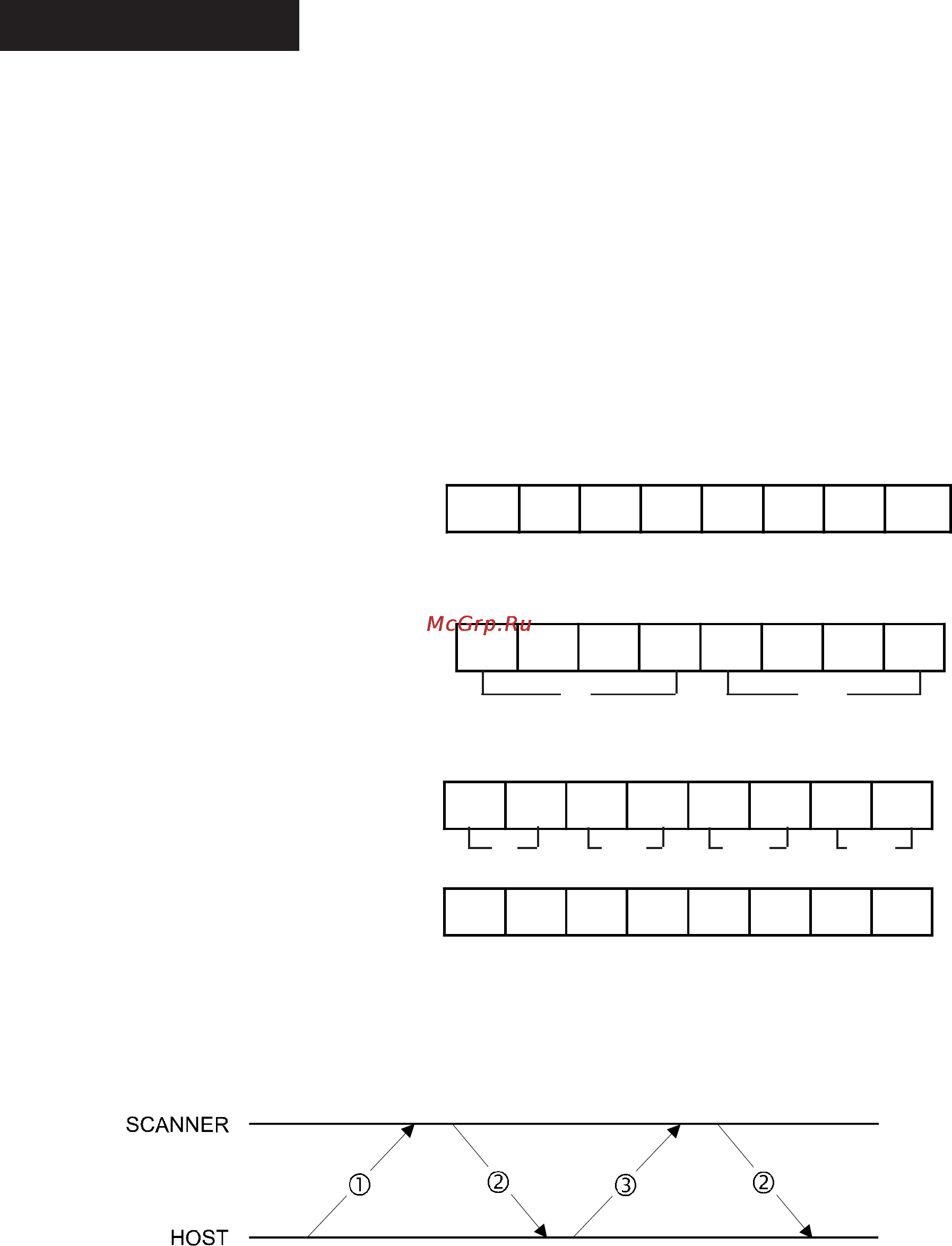

< Data format >

i=08H-05H : 8-5bit/pixel

(1pixel/byte)

*Upper 5 to 8 bits from MSB are valid. Lower bits are fixed to “0”.

i=04H-03H : 4-3bit/pixel

(2pixel/byte)

*Upper 3 to 4 bits from MSB are valid. Lower bits are fixed to “0”.

i=02H :2bit/pixel

(4pixel/byte)

i=01H :1bit/pixel

(8pixel/byte)

(3) Handshaking

1) ESC D code

2) ACK( 06H )

3) The parameter for the data format i.
