Epson GT-9500 [26/54] Set scanning mode

24 7/8/96-B

Set scanning mode

(1) Code: ESC g

ASCII: ESC g i

decimal: 27,103 i

hexadecimal: 1B,67 i

(2) Function: This command sets the scanning mode.

i=00h :Normal scan (Normal mode)

i=01h ;High speed scan (Draft mode)

Default values: i=00h

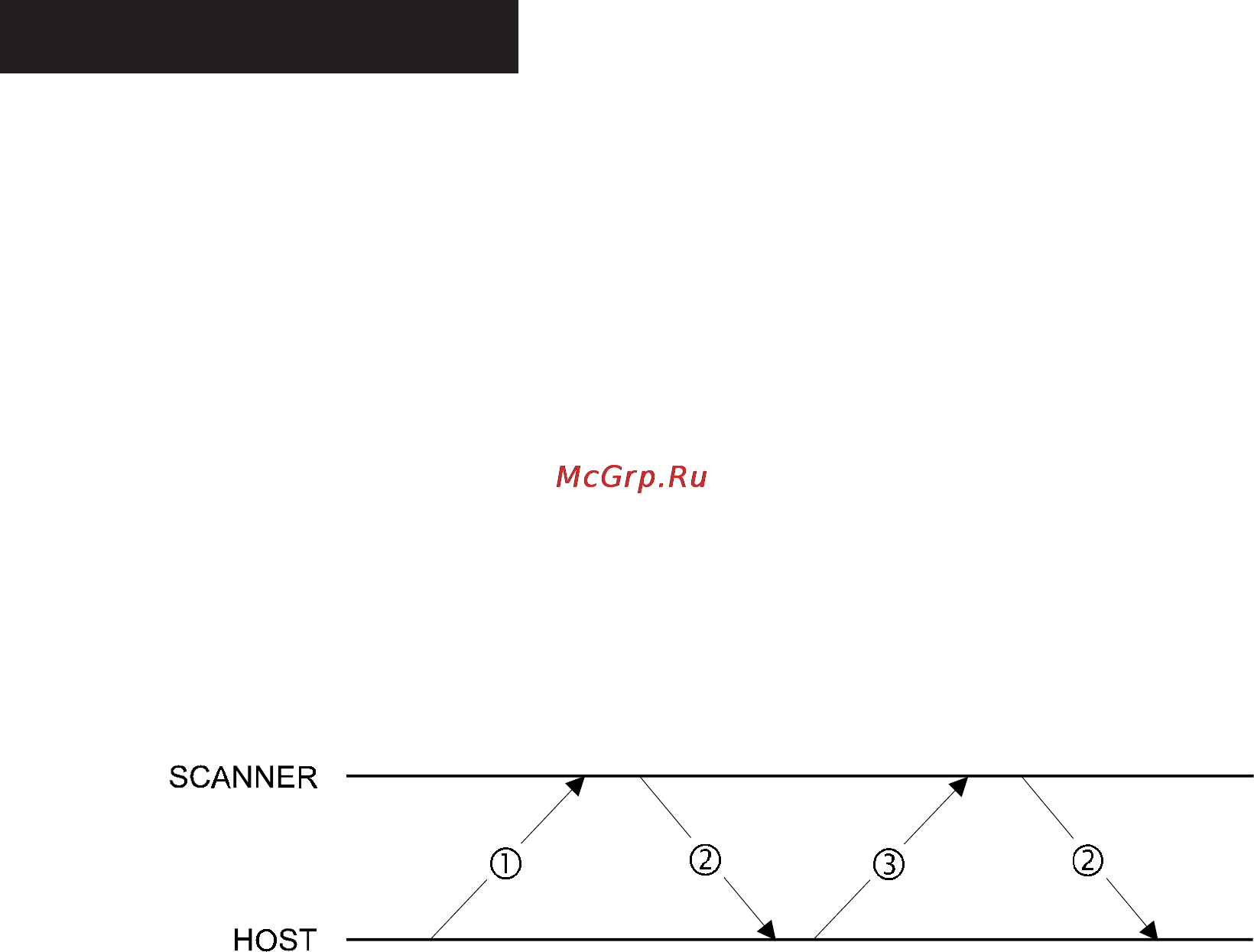

(3) Handshaking

1) ESC g code

2) ACK ( 06H )

3) i
