Epson GT-9500 [38/54] Set brightness

36 7/8/96-B

Set brightness

(1) Code: ESC L

ASCII: ESC L i

decimal: 27,76 i

hexadecimal: 1B,4C i

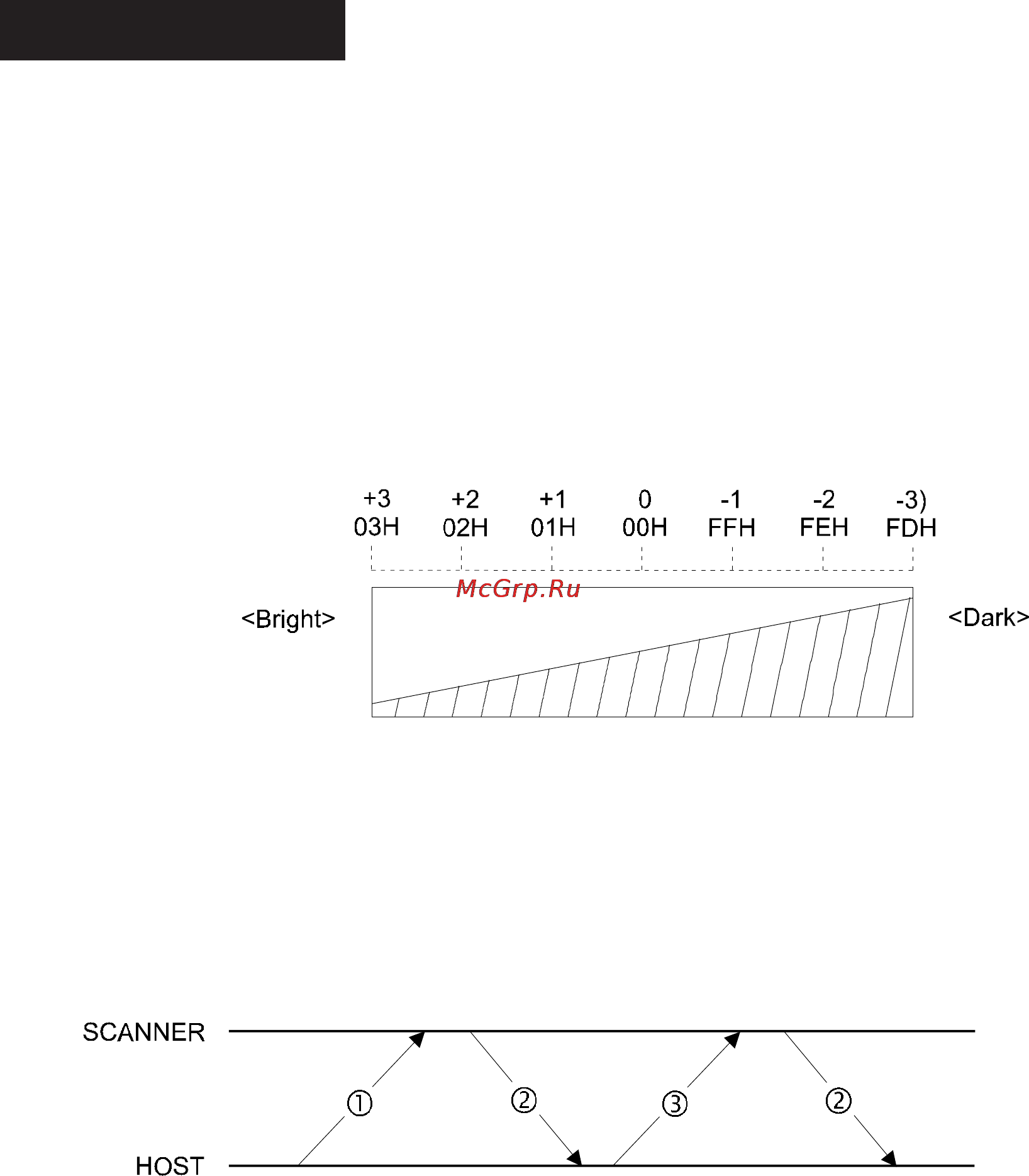

(2) Function: This command sets the brightness of the reading data.

Seven values for i are available:

00H, 01H, 02H, 03H, FFH(-1), FEH(-2) and FDH(-3).

Default value : i = 00H

(3) Handshaking

1) ESC L code

2) ACK( 06H )

3) The parameter for brightness i.

Note1: If a user defined table in the setting Gamma table code [ESC z] is

selected, the Brightness parameter is not available.
