Epson GT-9500 [37/54] Sharpness control

7/8/96-B 35

Sharpness control

(1) Code: ESC Q

ASCII: ESC Q i

decimal: 27,81 i

hexadecimal: 1B,51 i

(2) Function: This command sets the sharpness of the image data.

5 values for i are available:

i = FEH: Defocus

i = FFH: Defocus weakly

i = 00H: Normal

i = 01H: Sharpness weakly

i = 02H: Sharpness

Default value : i = 00H

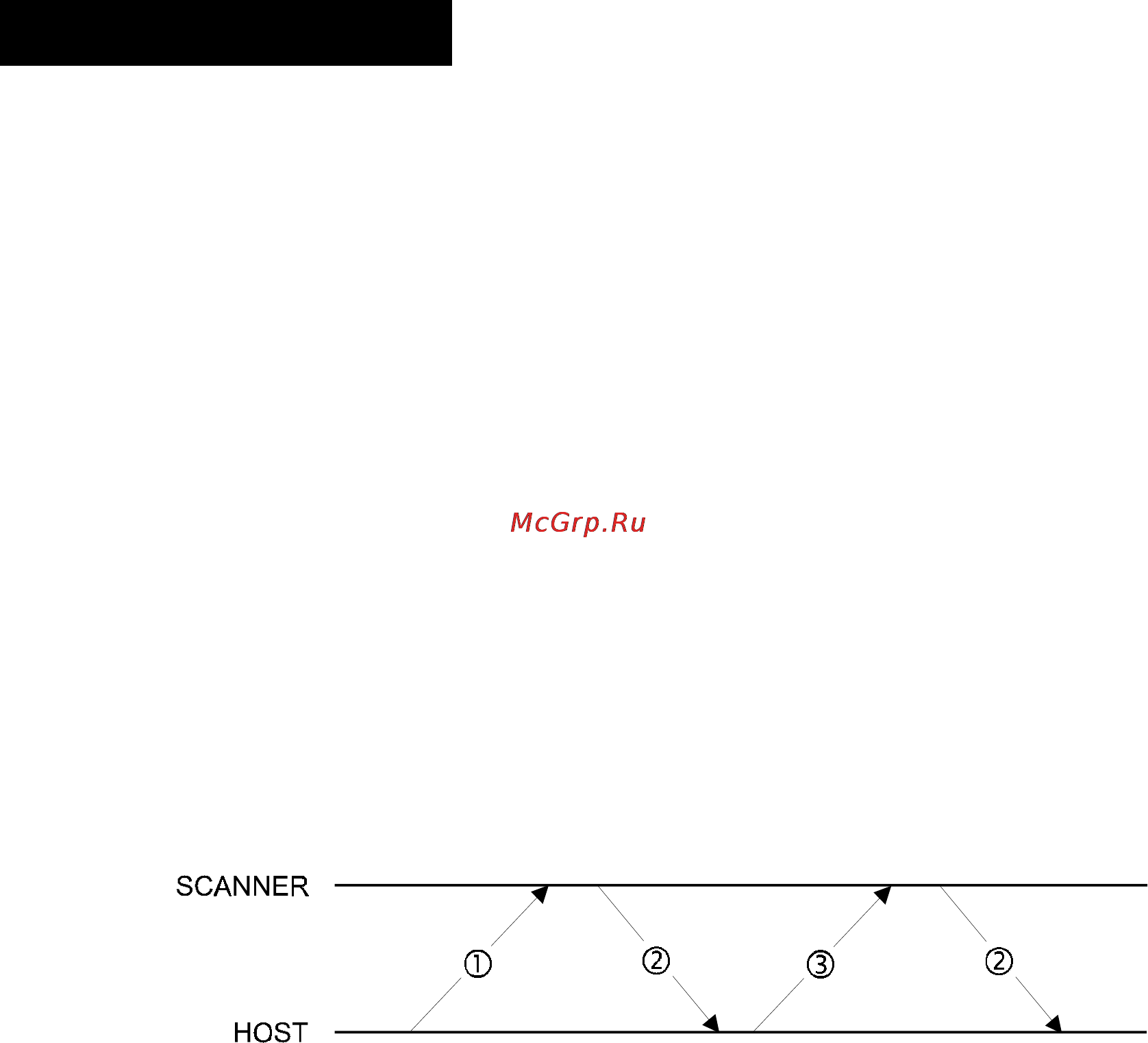

(3) Handshaking

1) ESC Q code

2) ACK( 06H )

3) i
