42 7/8/96-B
Set digital halftoning
(1) Code: ESC B
ASCII: ESC B i
decimal: 27,66 i
hexadecimal: 1B,42 i
(2) Function: This command specifies the mode of the half-tone of bi-level and
quad-level data.
i=01H:Fixed threshold.(Disable digital halftoning)
i=03H:TET(Text Enhanced Technology. Monochrome reading only.)
i=00H:Error diffusion mode A.(Hard)
i=10H:Error diffusion mode B.(Soft)
i=20H:Error diffusion mode C.(Net-screen)
i=80H:Dither mode A.
i=90H:Dither mode B.
i=A0H:Dither mode C.
i=B0H:Dither mode D.
i=C0H:Down load pattern A
i=D0H:Down load pattern B
Default values : I = 01H

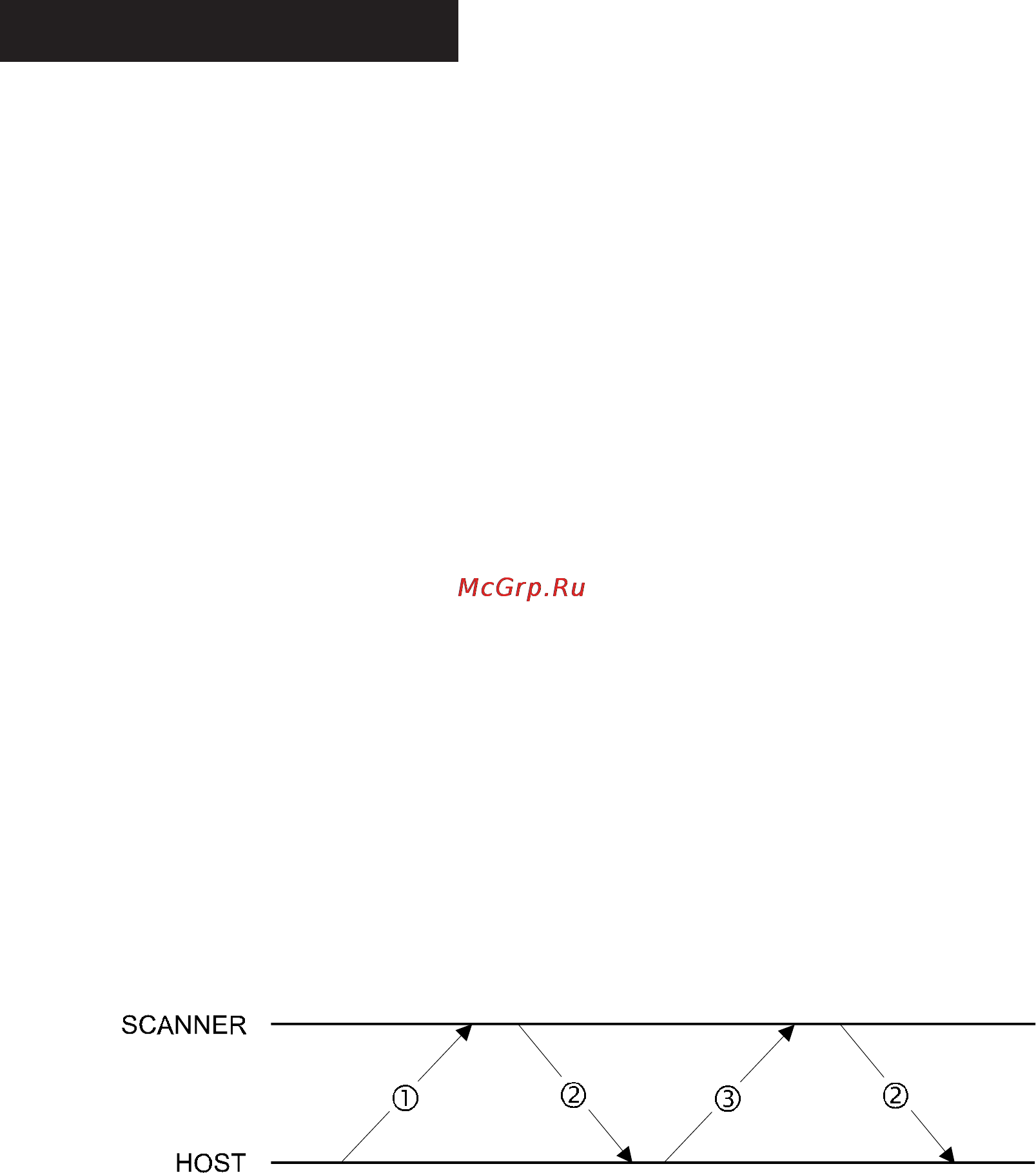

(3) Handshaking
1) ESC B code
2) ACK( 06H )
3) i (1 byte)
Note1:This setting is available only when ESC D 01H or 02H is specified.
Note2:Fixed threshold and TET is available only when ESC D 01H is specified.
Note3:TET is available only when monochrome reading mode is specified.
Resident Dither pattern
