Epson GT-9500 [41/54] Download color correction coefficients

7/8/96-B 39

Download Color correction coefficients

(1)Code: ESC m

ASCII: ESC m+d1.....d9

decimal: 27,109,d1....d9

hexadecimal: 1B,6D,d1.....d9

(2) Functions: Download 9 coefficient data for color correction.

G’ d1 d4 d7 G

R’ = 1/32 d2 d5 d8 x R

B’ d3 d6 d9 B

G’R’B’ : Corrected data

G R B : Original data

d1...d9 : Coefficient values

di:

ex) +7 = 07h, +127 = 7Fh

- 7 = 87h, -127 = FFh

Default values: d1, d5, d9=32 d2, d3, d4, d6, d7, d8=0

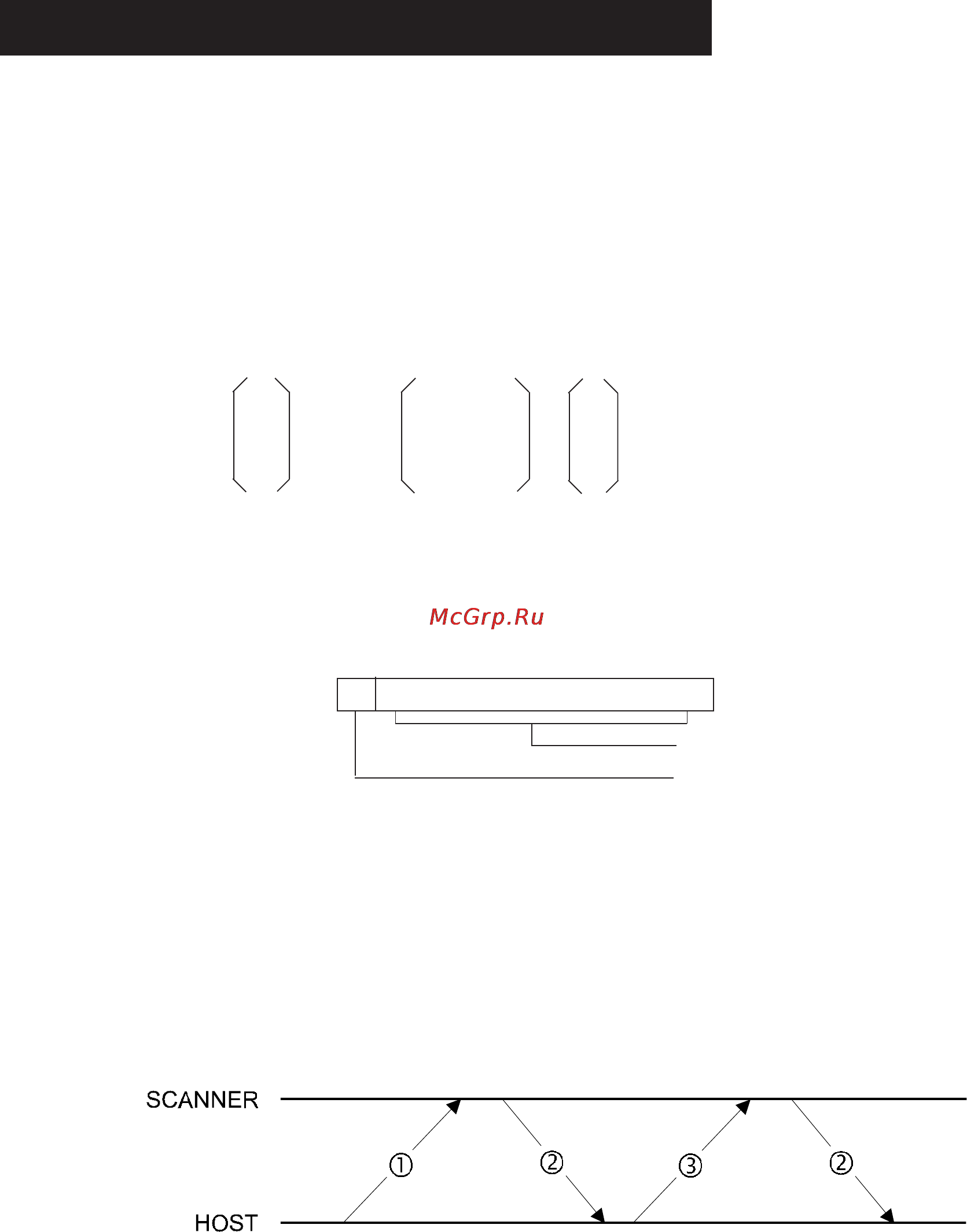

(3) Handshaking

1) ESC m code

2) ACK( 06H )

3) The parameter for the correction d.

x x x x x x x

MSB LSB

Absolute bits

Sign bit

0/1 : +/-
