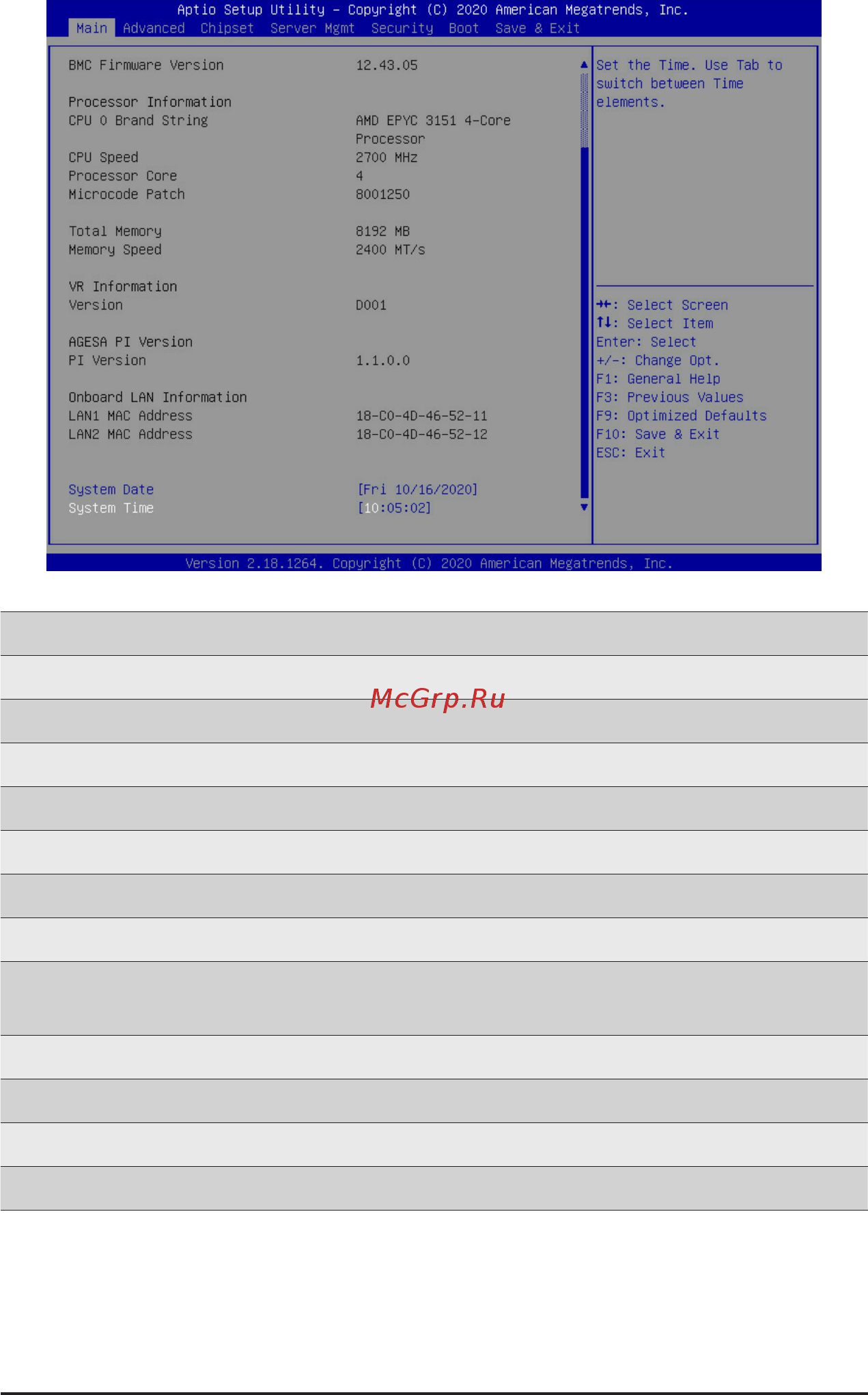

- 27 - BIOS Setup
Parameter
Description
BIOS Information
ProjectName
Displaystheprojectnameinformation.
ProjectVersion
Displays version number of the BIOS setup utility.
Build Date and Time
Displays the date and time when the BIOS setup utility was created.
BMC Information
(Note1)
BMC Firmware Version
(Note1)
DisplaysBMCrmwareversioninformation.
Processor Information
CPU0 Brand String/ CPU Speed /
Processor Core / Microcode Patch
Displaysthetechnicalspecicationsfortheinstalledprocessor(s).
Total Memory
(Note2)
Displays the total memory size of the installed memory.
Memory Speed
(Note2)
Displays the frequency information of the installed memory.
VR Information
Version Displays VR version information.
(Note1) Functions available on selected models.
(Note2) This section will display capacity and frequency information of the memory that the customer has
installed.
