BM-525 Bandwidth Management Gateway User’s Manual

- 133 -

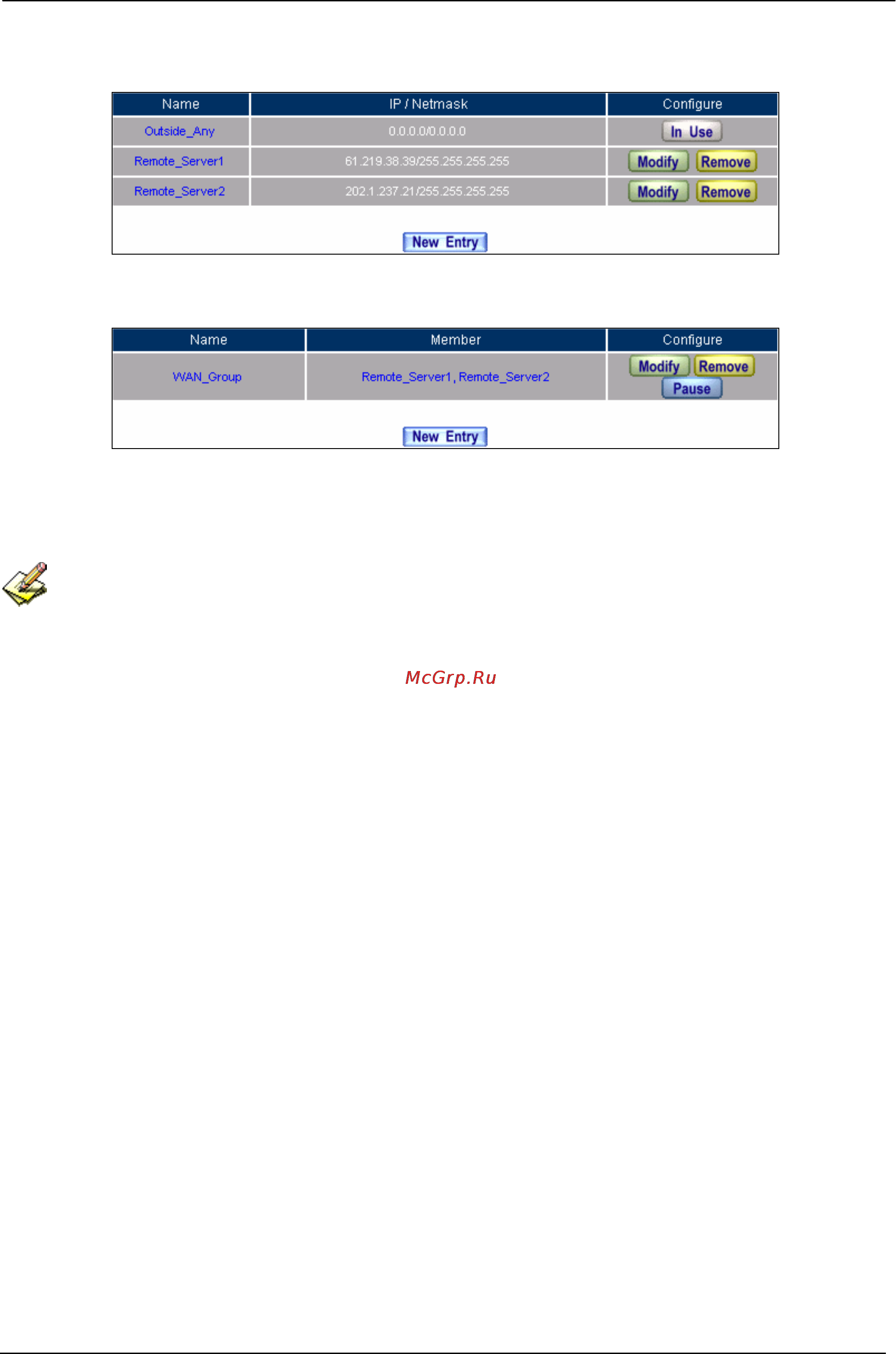

STEP 2﹒Enter as following in WA N and WAN Group of Address function.

Setting the WAN IP that going to block

WAN Address Group

The Administrator can group the custom address in Address. It is more convenient when setting

policy rule.
