BM-525 Bandwidth Management Gateway User’s Manual

- 134 -

STEP 3﹒Enter the following setting in Outgoing Policy:

 Click New Entry

 Destination Address: Select WAN_Group that set by STEP 2. (Blocking by IP)

 Action, WAN Port: Select DENY ALL

 Click OK

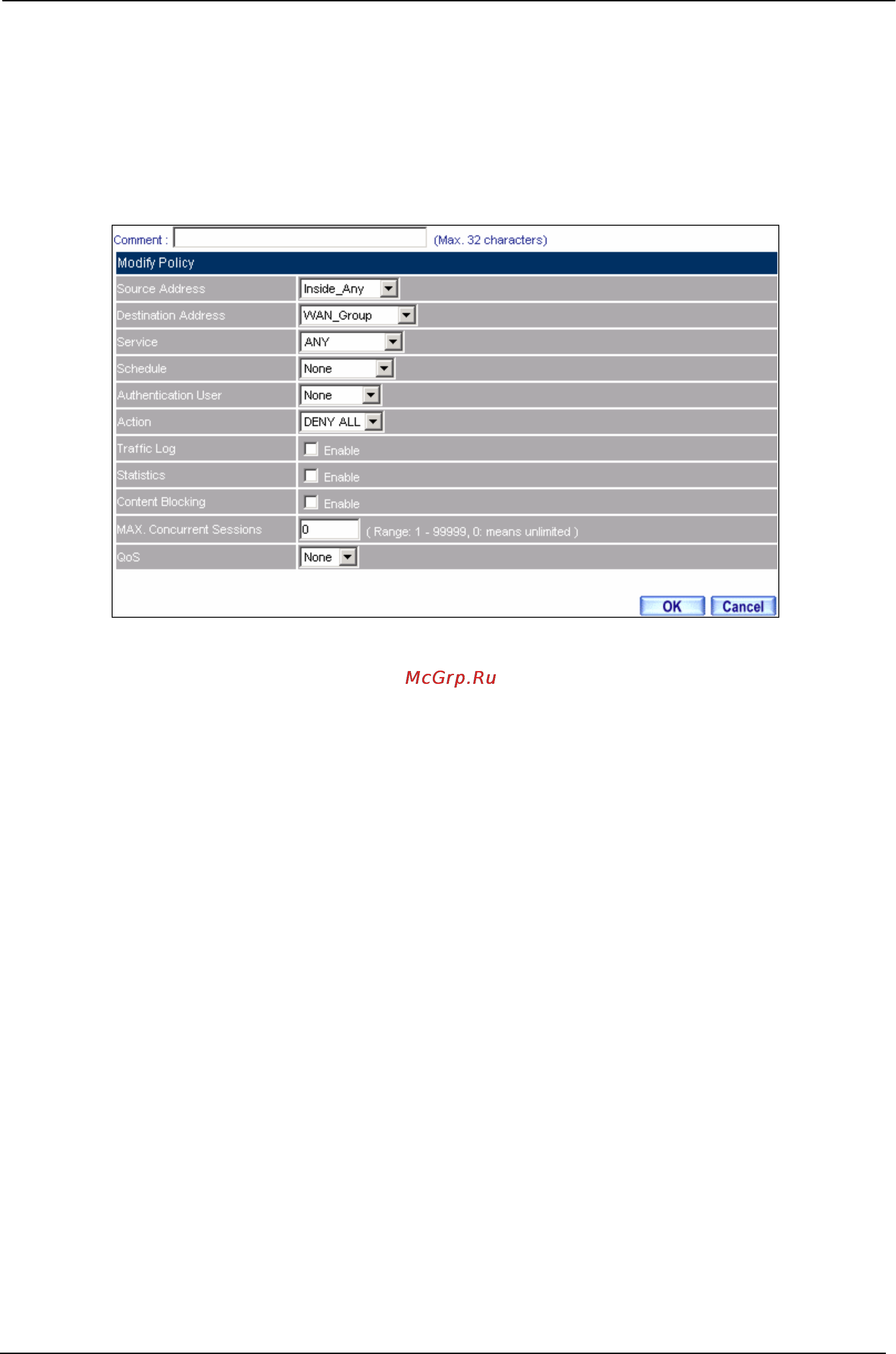

Setting Blocking Policy
