BM-525 Bandwidth Management Gateway User’s Manual

- 143 -

STEP 4﹒Enter the following setting in WAN to DMZ Policy:

 Click New Entry

 Destination Address: Select Mail_Server

 Service: Select E-mail

 Click OK

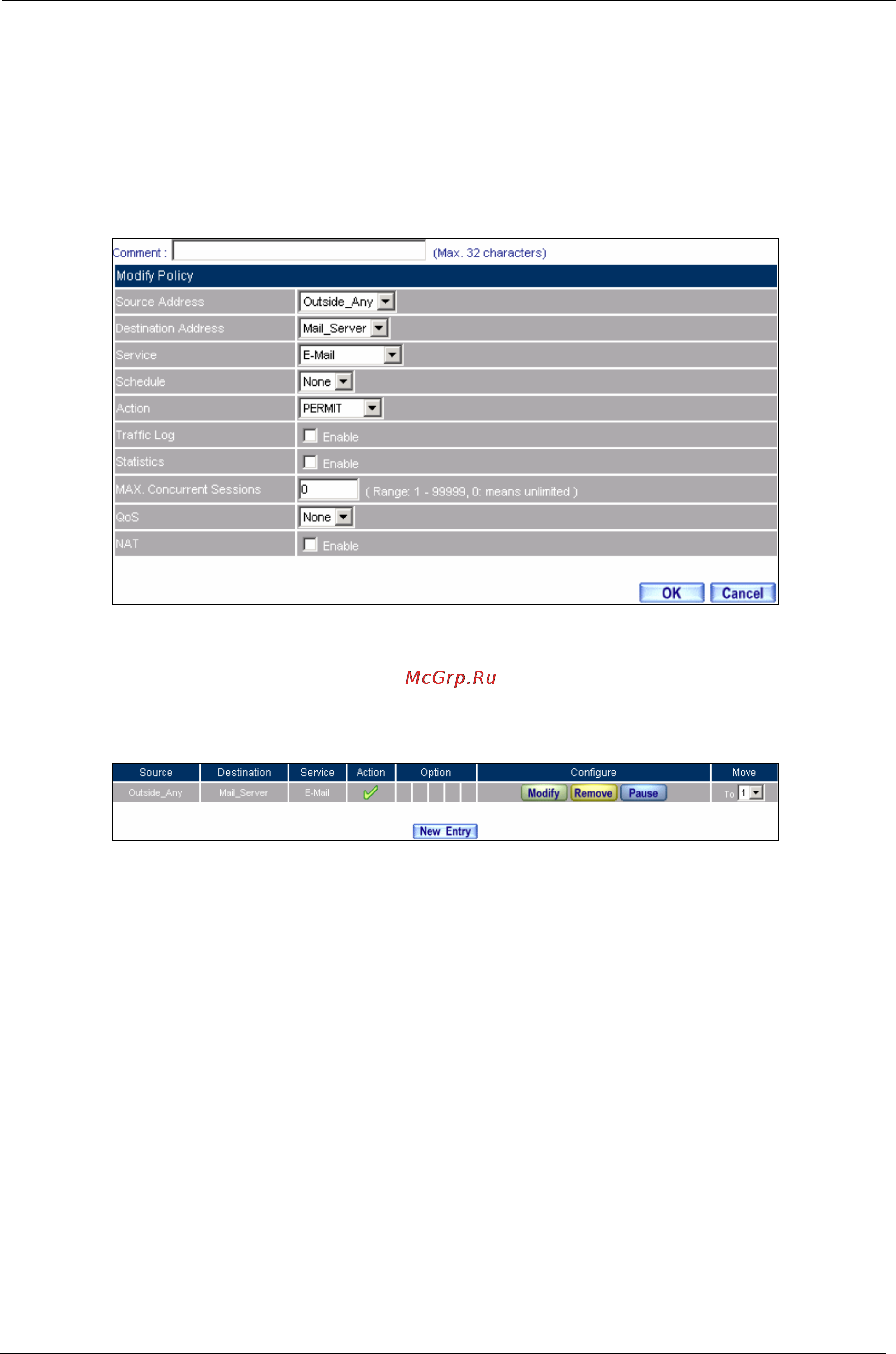

Setting a Policy to access Mail Service by WAN to DMZ

STEP 5﹒Complete the policy to access mail service by WAN to DMZ.

Complete the Policy to access Mail Service by WAN to DMZ
