BM-525 Bandwidth Management Gateway User’s Manual

- 144 -

STEP 6﹒Add the following setting in LAN to DMZ Policy:

 Click New Entry

 Destination Address: Select Mail_Server

 Service: Select E-mail

 Click OK

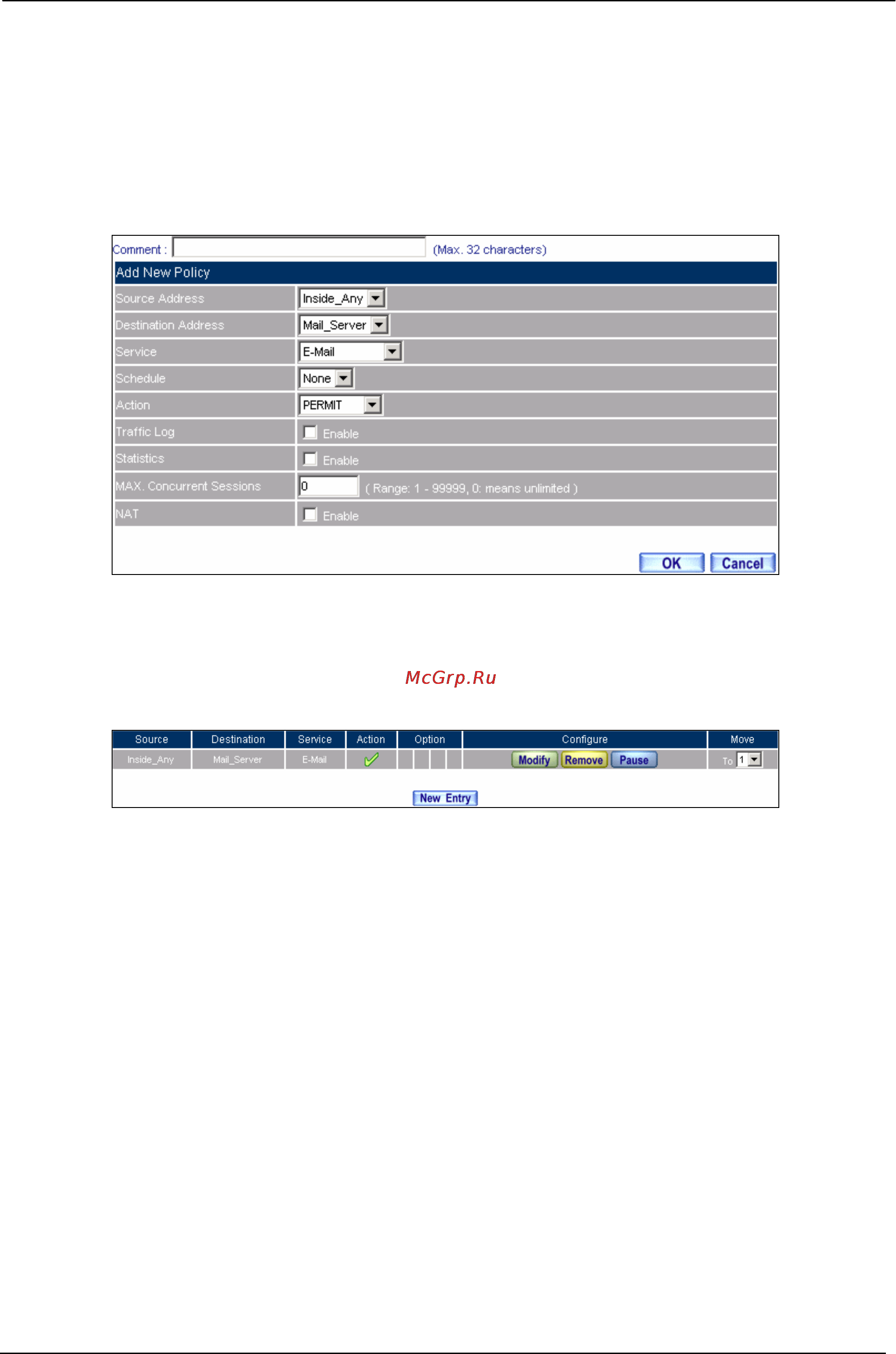

Setting a Policy to access Mail Service by LAN to DMZ

STEP 7﹒Complete the policy to access mail service by LAN to DMZ.

Complete the Policy to access Mail Service by LAN to DMZ
