BM-525 Bandwidth Management Gateway User’s Manual

- 155 -

Step3. Enable the System Æ E-Mail alert notification, and then the BM-525 will send the

mail notice to the MIS engineer.

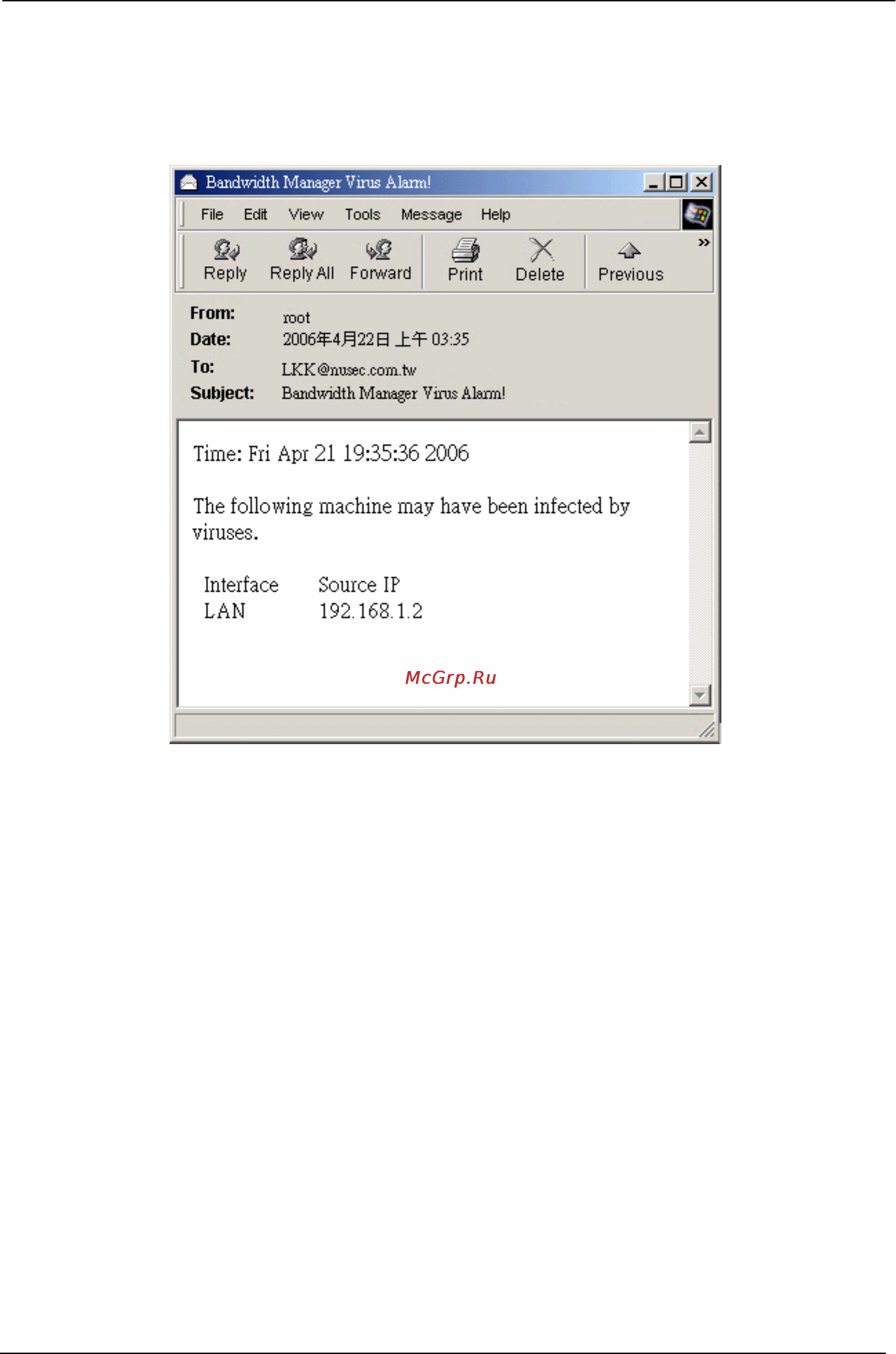

Send the e-mail alert notification
