BM-525 Bandwidth Management Gateway User’s Manual

- 156 -

Step4. Enable the Anomaly Flow Æ Attack Event , then the BM-525 shows the attack

information in detail.

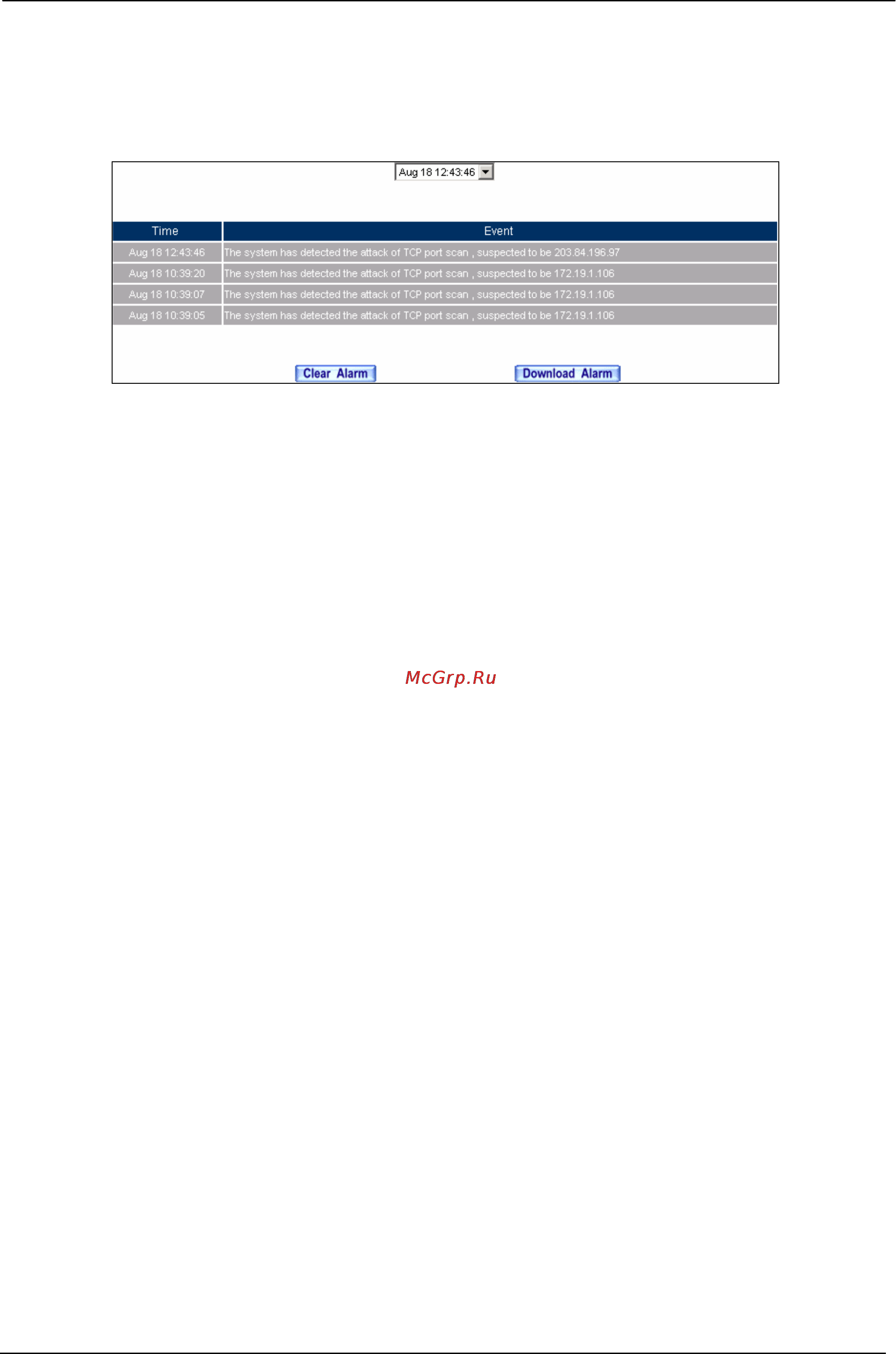

Anomaly Flow IP attack event
