BM-525 Bandwidth Management Gateway User’s Manual

- 190 -

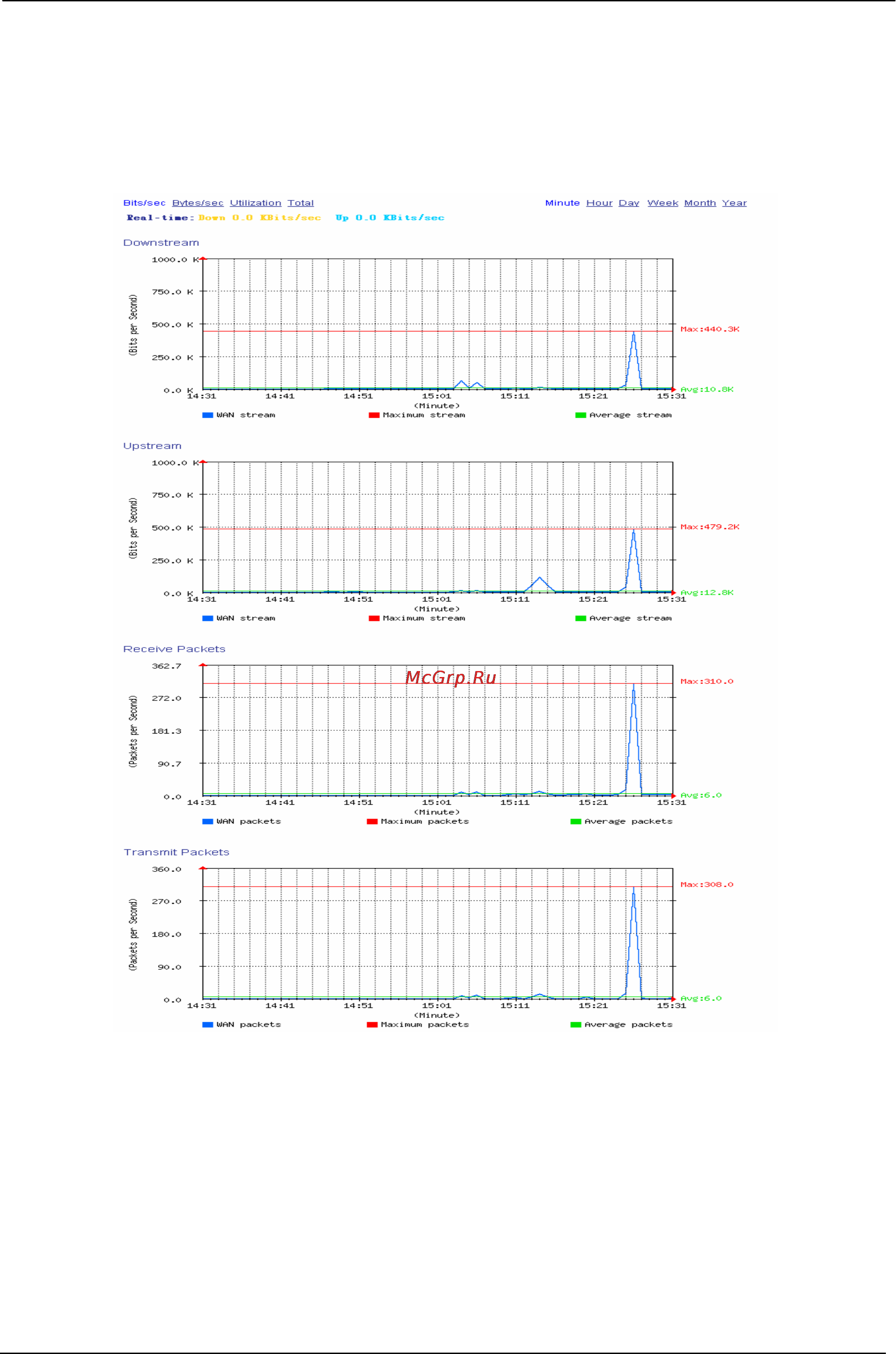

STEP 2﹒Statistics Chart

 Y-Coordinate：Network Traffic（Kbytes/Sec）

 X-Coordinate：Time（Hour/Minute）

WAN Statistics
