2-11

ASUS RS300-E10 Series

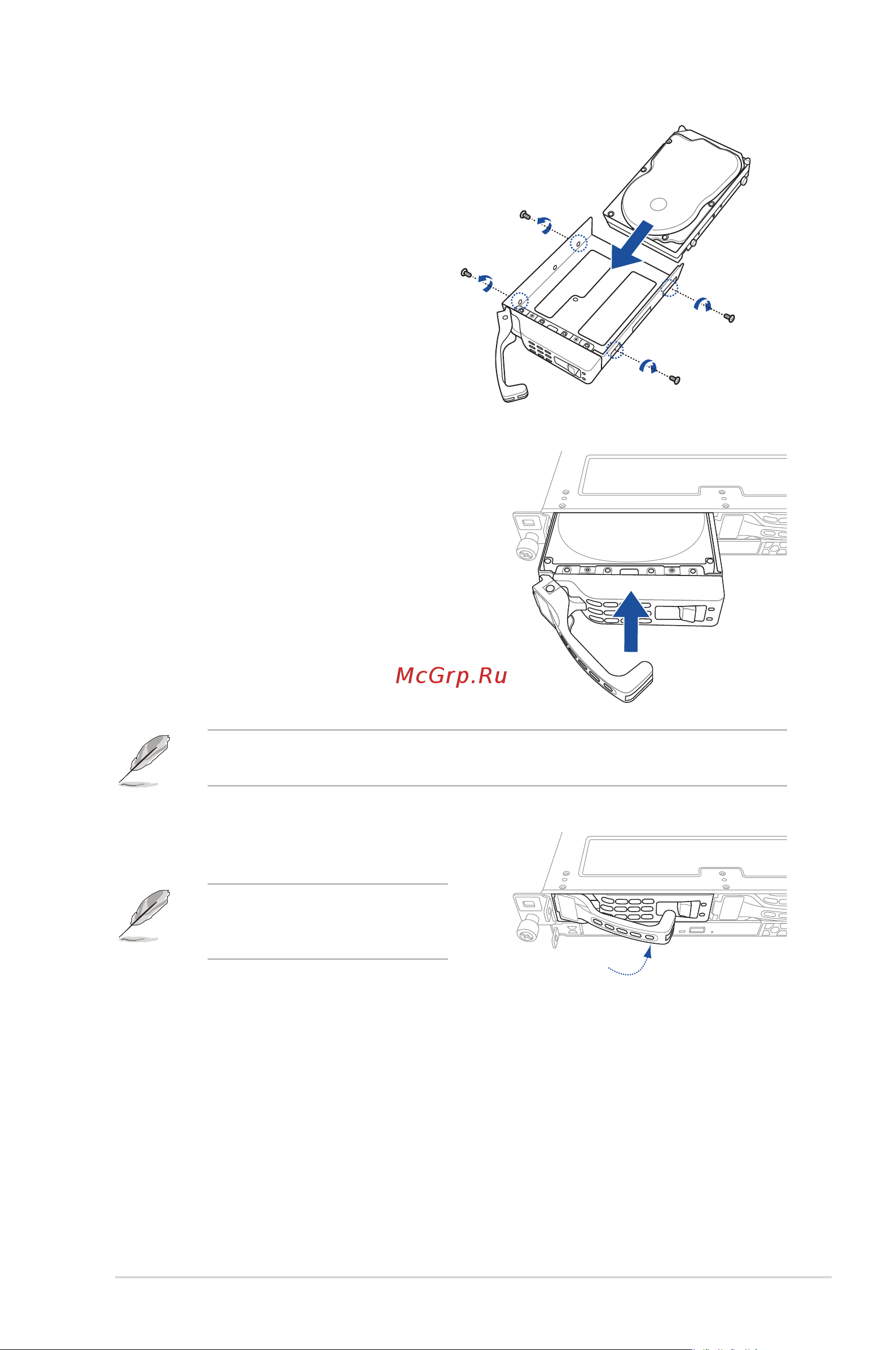

5. Place the 3.5” SATA/SAS HDD into the

tray then secure it with four screws.

6. Insert the drive tray and HDD assembly

all the way into the depth of the bay

until just a small fraction of the tray

edge protrudes.

7. Push the tray lever until it clicks and

secures the drive tray in place.

The drive tray is correctly placed

when its front edge aligns with the

bay edge.

8. Repeat steps 1 to 7 to install the other

SATA/SAS HDDs.

When installed, the SATA/SAS connector on the drive connects to the SATA/SAS interface

on the backplane.
