Chapter 2: Hardware Information

2-12

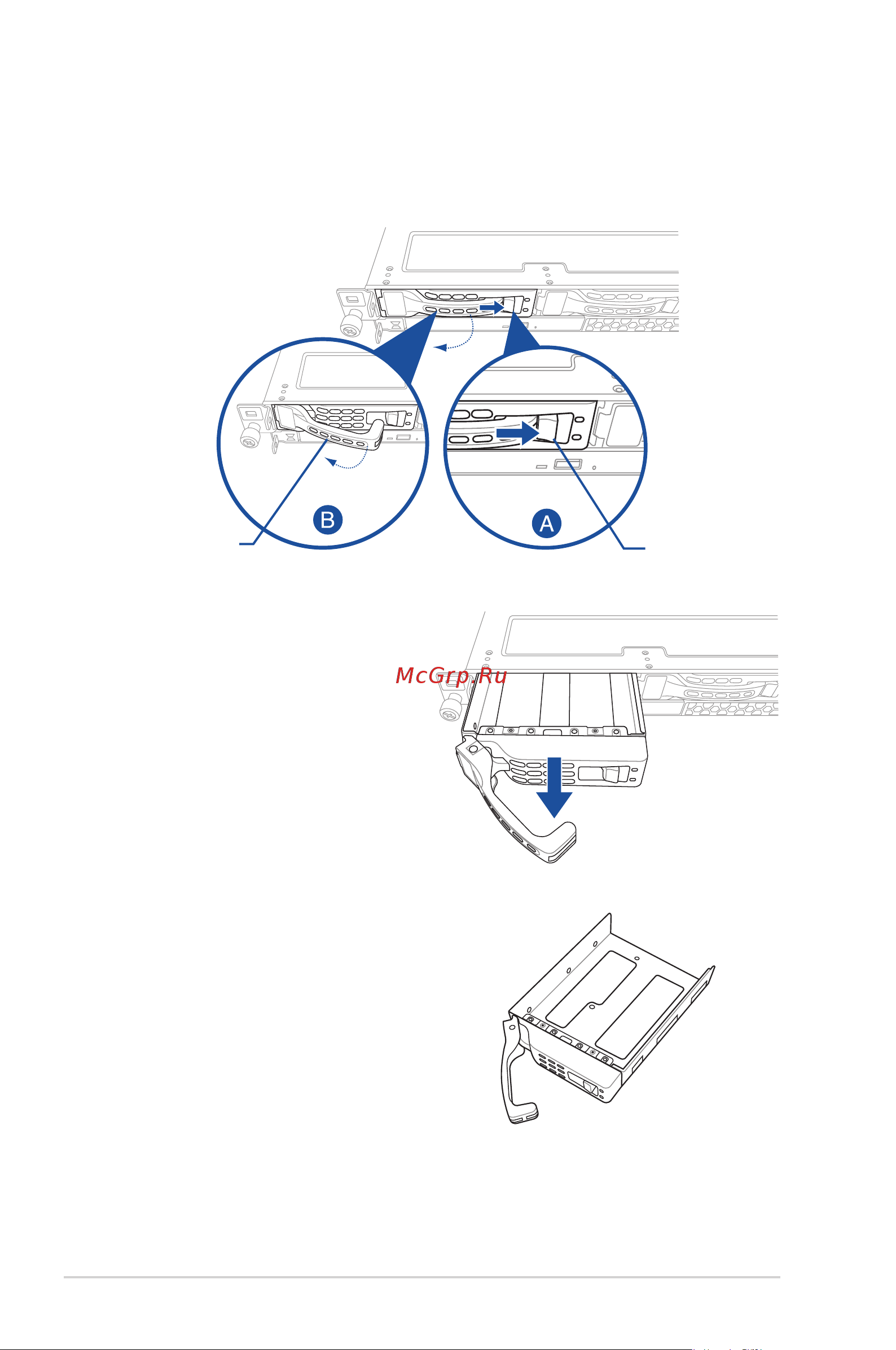

To install a 2.5” storage device to the front panel:

1. Push the spring lock to the right (A) then pull the tray lever outward (B) to release the

drive tray. The drive tray ejects slightly after you pull out the lever.

spring lock

tray lever

2. Firmly hold the tray lever and pull the

tray out of the bay.

3. Place the tray on a at and stable

surface.

4. Prepare the 2.5” storage device and

the bundled set of screws.
