Outdoor Unit (50/60 class) Si21-205A

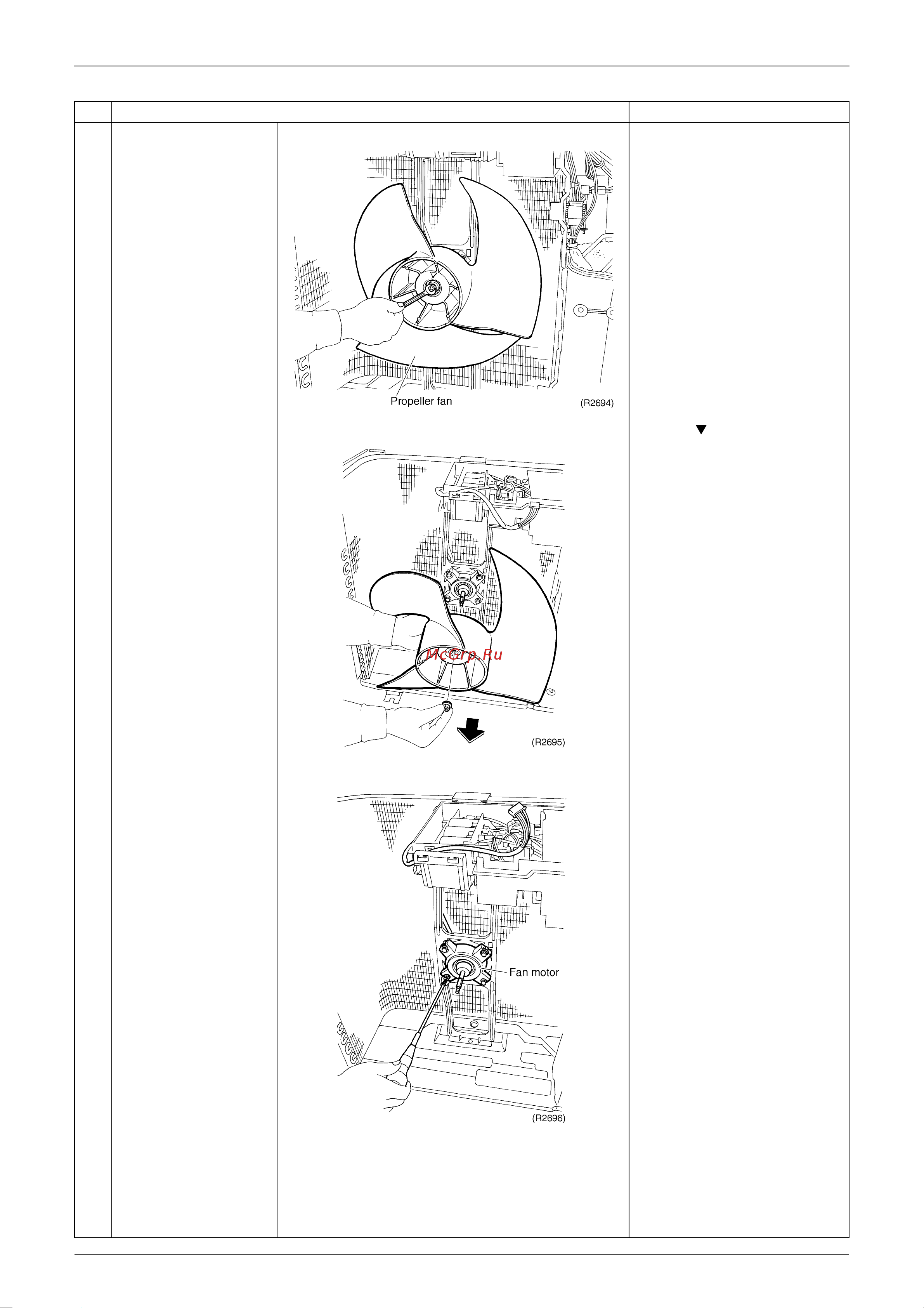

292 Removal Procedure
3
Unscrew the washer-
fitted nut (M10) of the
propeller fan with a
spanner.
Align mark of the
propeller fan with D-cut
section of the motor shaft
when reassembling.
4
Remove the four
screws from the fan
motor.
Step
Procedure Points
