14
HCD-DZ720

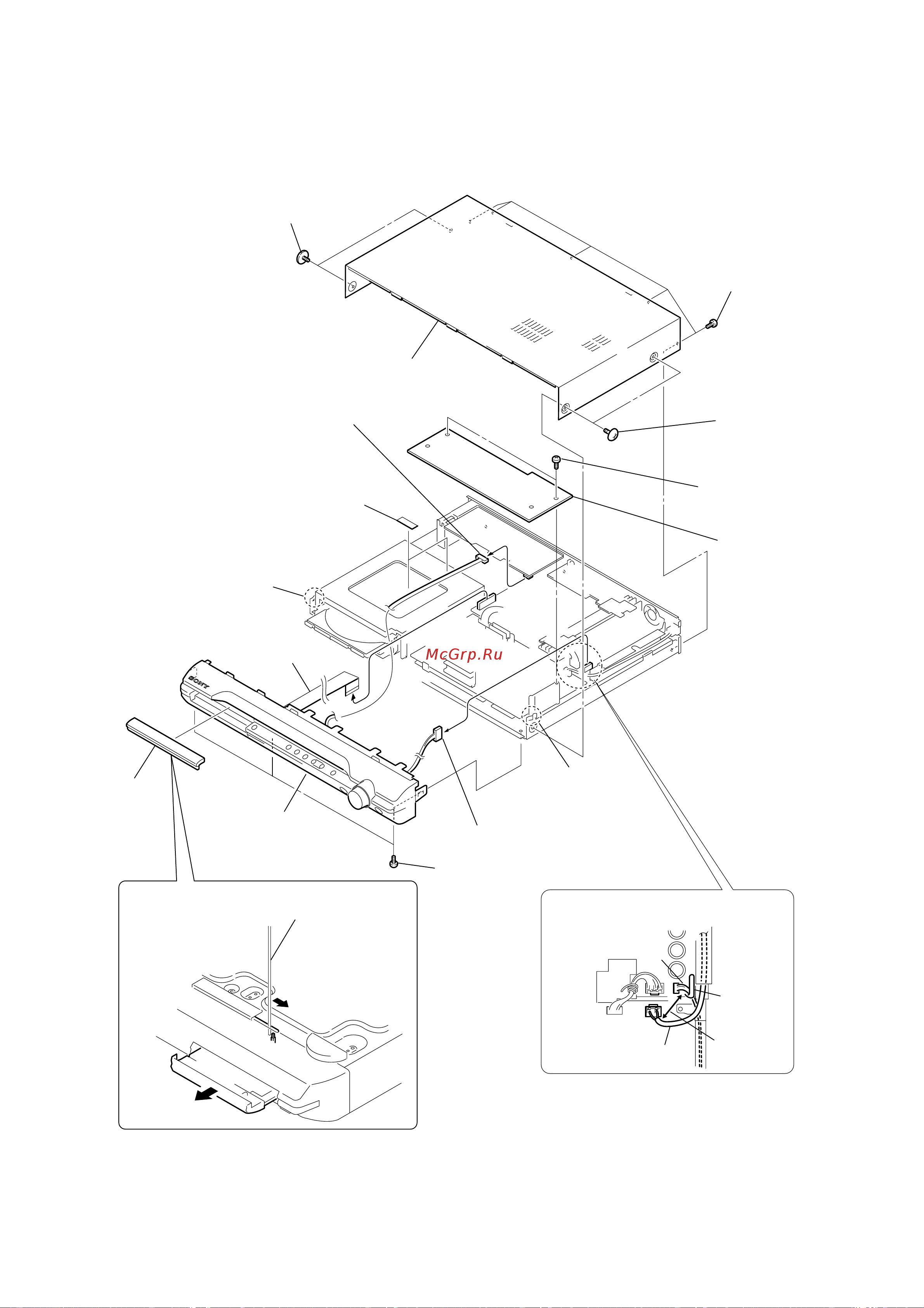

3-2. CASE, FRONT PANEL ASSY
Note: Follow the disassembly procedure in the numerical order given.
1
The lever is moved in the direction
of the arrow with the thin rod.
2
3
loading panel
4
two screws (CASE3 TP2)
5
two screws
(CASE3 TP2
)
7
case
qj
front panel assy
qf
three screws (+BV 3
×
6)
qs
connector (CN302)
qd
connector (CN3001)
qa
wire (flat type)
23core (CN501)
qh
claw
qg
claw
6
five screws
(+BVTP 3
×
8)
9
two screws
(+BVTP 3
×
8)
When re-assembling, leave 30 mm between
harnesses A and B for safety.
q;
cover (top)
8
two sheets
harnesses A
harnesses B
clamp
30mm
