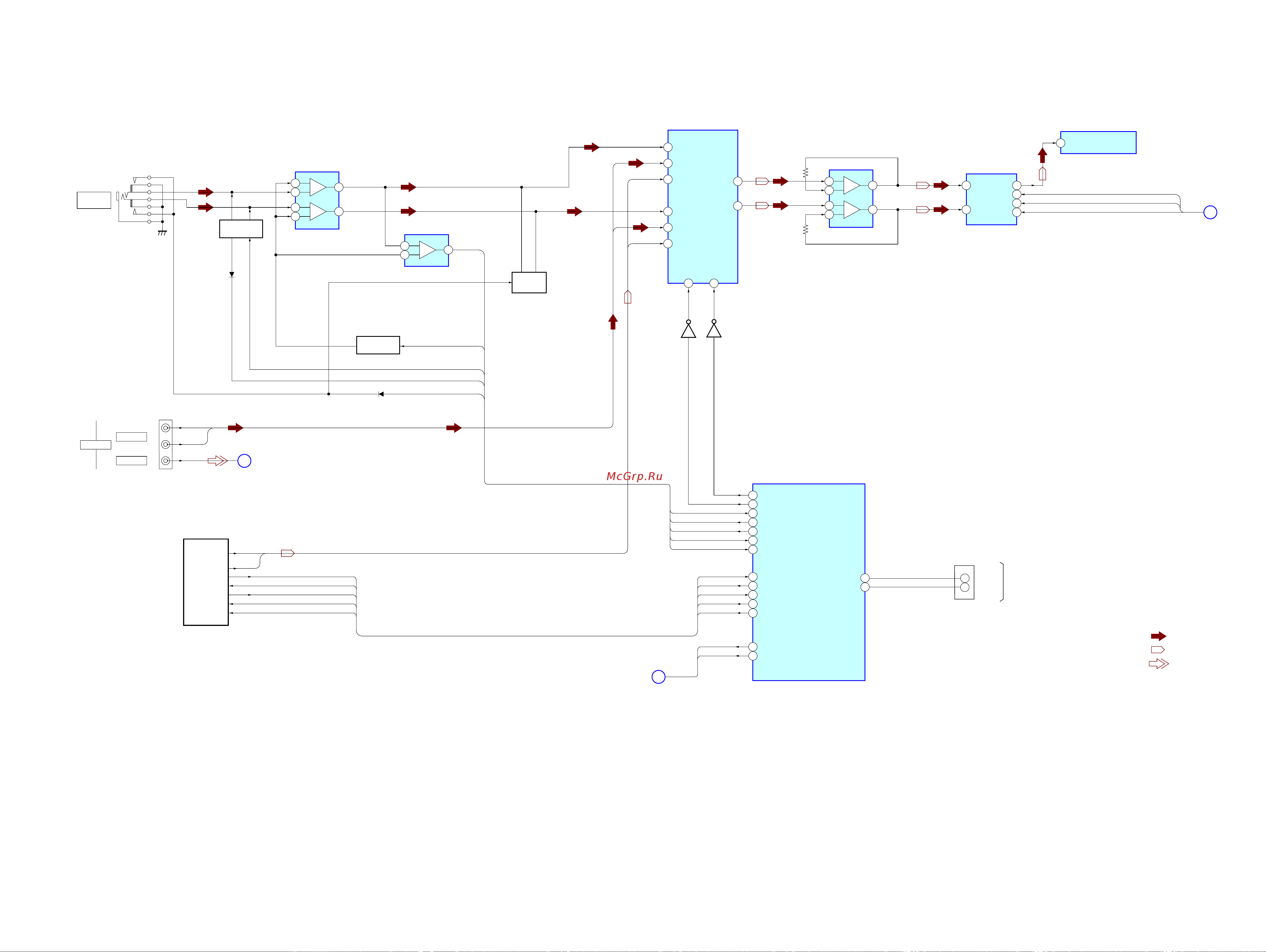

6-2. BLOCK DIAGRAM – AMP SECTION –
• Signal Path
: AUDIO IN
: TUNER
: VIDEO
J401
AUDIO IN/
A. CAL MIC
IC401
AMP
+
–
6
5
7
+
–
3
2
1
Q470-473,476
MO/ST DETECT
IC402
AMP
+
–
5
6
7
GAIN CONT
A.CAL
DC CONT
MO/ST DET
PLUG DET1
Q474,475
GAIN CONT
MUTING
Q360-362
IC350
AUDIO INPUT SELECTOR
4
Y3
2
Y2
5
Y1
13
X
3
Y
A
A SEL1
A SEL0
10
B
9
11
X3
15
X2
L-CH
R-CH
14
X1
Q353
Q354
IC360
AMP
+
–
3
2
1
+
–
5
6
7
IC4601
A/D CONVERTER
1
LIN
LIN
12
DOUT
10
LRCK
2
RIN
RIN
11
BCK
15
SCKI
IC101 (2/3)
DVD SYSTEM PROCESSOR
220
SPDATA
ACLK
ABCK
ALRCK
IC501 (2/4)
SYSTEM CONTROL
82
A-SEL0
83
A-SEL1
69
TUNED
TUNED
70
ST_CLK
PLL CK
PLL DO
PLL CE
PLL DI
71
ST_DO
72
ST_CE
73
ST_DI
91
ACAL MIC LEVEL
26
MIC GAIN
28
DC CONT
90
MONO/ST DET
100
MIC/A CALSW
ACAL
GAIN CONT
MO/ST DET
PLUG DET1
79
V_SEL0
80
V_SEL1
V_SEL0
V_SEL1
J203(1/2)
AUDIO IN
TUNER
UNIT
TV/VCR
L-CH
R-CH
L
L
R
R
TUNED
PLL CK
PLL DO
PLL CE
PLL DI
A
AUDIO
SECTION
(Page 30)
VIDEO
SECTION
(Page 31)
B
VIDEO
SECTION
(Page 31)
D433
D470
DC CONT
29
30
I2C CLK
I2C CLK
I2C DATA
I2C DATA
3
4
CN502
SOFT JIG
VIDEO IN
F
VIDEO
SECTION
(Page 31)
