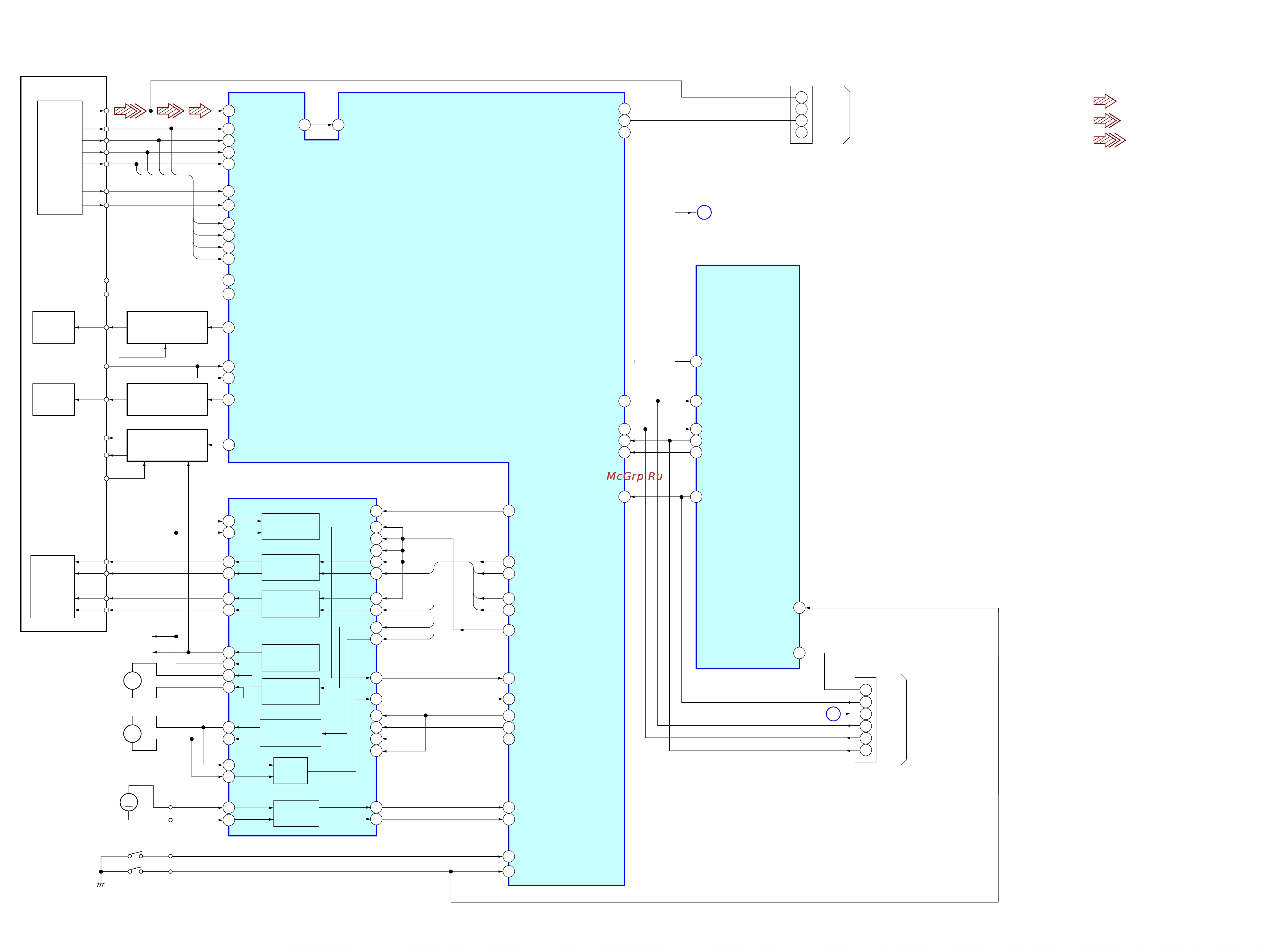

6-1. BLOCK DIAGRAM – RF SECTION –
CKSW
OCSW
S001
(CHUK/TRAY DETECT)
MM
(LOADING)
LDM+
LDM-
: CD PLAY
: DVD PLAY
: SACD PLAY
• Signal Path
DETECTOR
6
2
3
4
5
11
10
19
18
252 253
DVDRF IP
DVDA
DVDB
DVDC
DVDD
TPI
TNI
MC
MD
29
V2O
D
C
LD01
MD12
LD02
MSW
IOP
MD11
OSP
OSN
IC101 (1/3)
CD/DVD RF AMP,
FOCUS/TRACKING ERROR AMP
DVD SYSTEM PROCESSOR
DIGITAL SERVO PROCESSOR
OPTICAL PICK-UP
BLOCK
(KHM-310CAA)
2AXIS
DEVICE
FOCUS/
TRACKING
COIL
23
20
LI NY SW
136
22
21
36 48
43
15
37 1
Q102 (2/2)
AUTOMATIC POWER
CONTROL (FOR DVD)
Q101, Q103
VOLUME CONTROL
Q102 (1/2)
AUTOMATIC POWER
CONTROL (FOR CD)
LASER
DIODE
(FOR CD)
LASER
DIODE
(FOR DVD)
FOCUS COIL
DRIVE
42
41
BUFFER
35 3
34 4
TRACKING COIL
DRIVE
32
31
38
42
39
37
41
30
47
REGULATOR
IC201
FOCUS/TRACKING COIL DRIVER,
SPINDLE, SLED MOTOR DRIVER
27
28
SPINDLE MOTOR
DRIVE
MM
(SPINDLE MOTOR)
47
46
24
25
FMO
TROPENPWM
FOO
DMO
TRO
VREFO
SPFG
40
IOPMON
FOO
RF
A
B
C
D
F
E
VC
LIMIT
CD LD
PD
VR650
VR780
MSW
DVD LD
FCS+
FCS–
TRK+
+3.6V
+5V
TRK–
SP+
SP–
SL+
SL–
D
C
B
A
VREFO
9
MB
B
8
MA
A
30
29
SLED MOTOR
DRIVE
MM
(SLED MOTOR)
48
BUFFER
19
20
22
21
17
16
LOADING
MOTOR
49
50
40
45
IC501 (1/4)
SYSTEM
CONTROLLER
99
IFSCK
DVD_SCO
33
100
XIFCS
DVD_XIFCS
37
MTK_RST
SCO
SCD
SID
98
IFSDO
DVD_SOD
32
101
IFSDI
CDM_OPEN_SW
114
XIF5SY
DVD_XIFBUSY
34
DVD_SID
31
TRO
FMO
FOO
DMO
TRO
10
13
FMO
DMO
211
MUTE123
210
MUTE
170
TSDM
28
V2REFO
106
RXD
107
TXD
5
6
2
1
RFMON
CN105
TO DIAG JIG
V2REFO
RXD
TXD
185
REW
186
FWD
CKSW
OCSW
REG02
REG01
9
12
38
27
VIDEO SECTION
(Page 31)
D
9
CNVss
CN503
3
7
2
5
4
8
E
CNVss
RTS1
RESET
CLK1
RXD1
TXD1
TO WRITE JIG
POWER SECTION
(Page 32)
