8
HCD-DZ720
MAIN BOARD
POWER BOARD

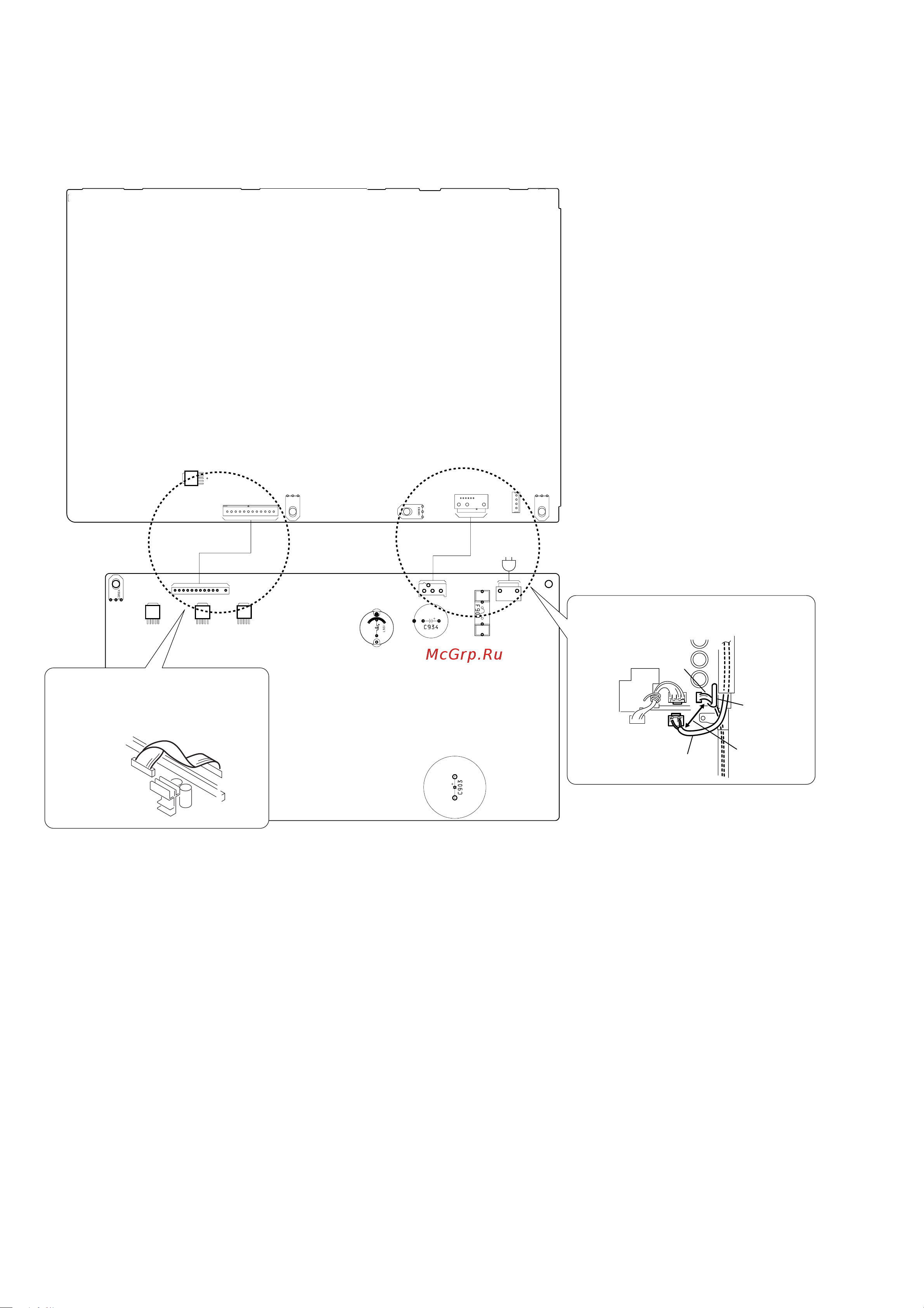

Precaution on the connector processing of the POWER board.
AC IN
1
3
1
12
After twist the harness once,
install the connector.
POWER board
MAIN board
(Parts face side)
(Parts face side)
IC504
CN506
CN3002
CN3001
CN902
CN901
CN904
IC941
IC942
IC943
When re-assembling, leave 30 mm between
harnesses A and B for safety.
harnesses A
harnesses B
clamp
30mm
