Sony HCD-DZ720 [72/92] 2 front panel section
![Sony HCD-DZ720 [72/92] 2 front panel section](/views2/1793005/page72/bg48.png)
72
HCD-DZ720
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 2-652-983-01 KNOB (VOL)
52 2-652-982-01 RING (VOL)
53 2-652-981-01 ORNAMENT (RIGHT)
54 2-652-980-01 ORNAMENT (PLAY)
55 2-652-984-01 WINDOW, INDICATION
56 2-652-979-01 ORNAMENT (POWER)
57 2-661-952-01 SHEET (WINDOW), ADHESIVE
58 3-943-995-31 EMBLEM (NO.5), SONY
59 2-652-977-01 BUTTON BASE (POWER)
60 2-661-871-11 PANEL, FRONT (SB)
61 3-087-053-01 +BVTP2.6 (3CR)
62 2-652-978-01 BUTTON BASE (PLAY)
63 A-1144-767-A JACK BOARD, COMPLETE
64 A-1144-764-A FL BOARD, COMPLETE
65 1-828-384-11 WIRE (FLAT TYPE)(23 CORE)
66 1-828-325-11 WIRE (FLAT TYPE)(13 CORE)
67 2-652-973-01 CAP (POWER)
68 2-652-975-01 CAP (FUNC)
69 2-652-974-01 CAP (PLAY)
70 2-652-976-01 CAP (AMS)
71 3-531-576-01 RIVET

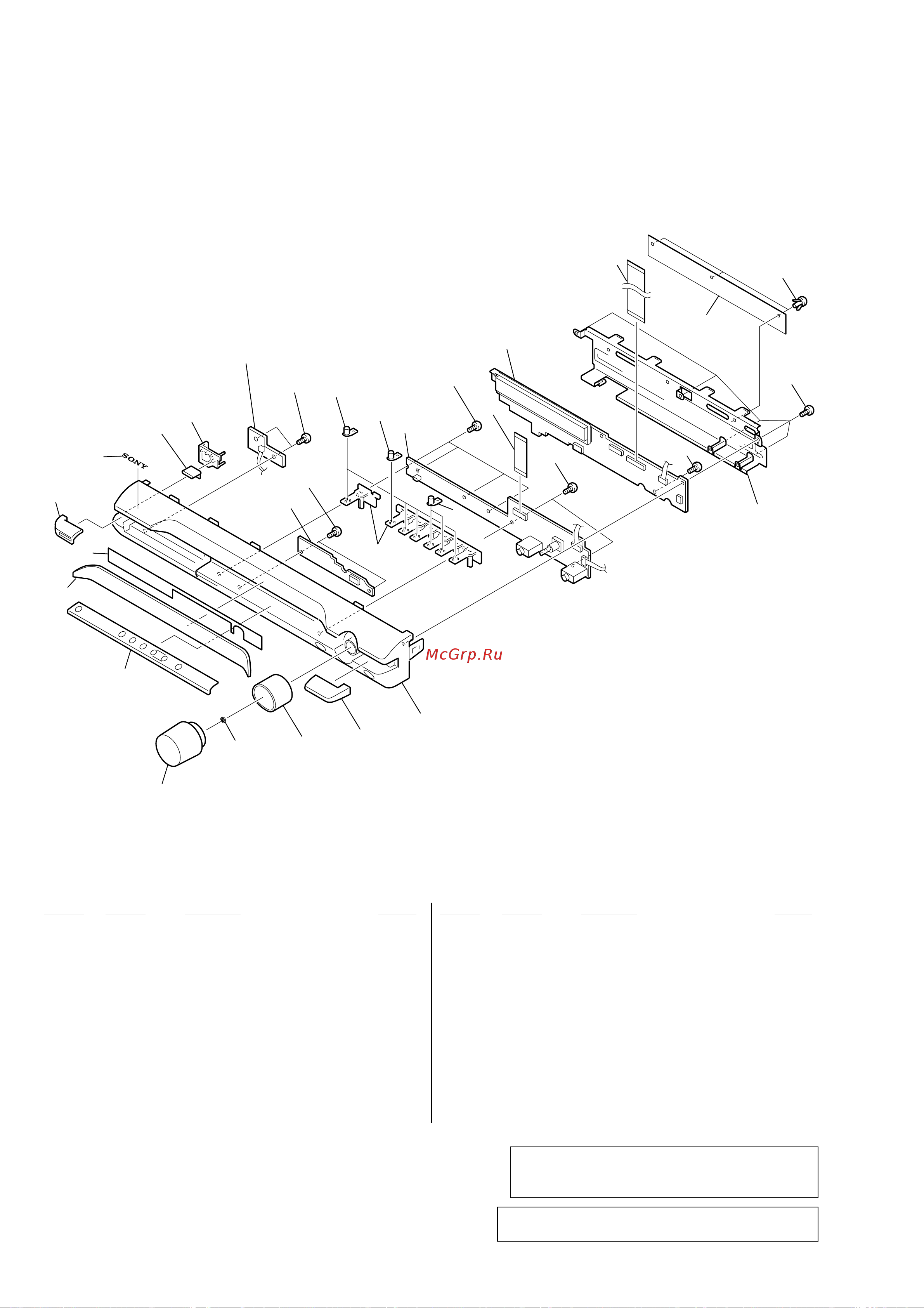

7-2. FRONT PANEL SECTION
61
61
67
68
69
70
62
61
64
61
63
51
54
55
52
53
60
not
supplied
not
supplied
including
S800
56
57
59
58
not
supplied
not
supplied
61
71
61
66
65
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
Refer to “Precaution when replacing the CAP” when
replacing the CAP (PLAY) or CAP (FUNC) or CAP (AMS)
or CAP (POWER). (See page 7)
