![Sony HCD-DZ720 [19/92] Two claws](/img/pdf.png)
Sony HCD-DZ720 [19/92] Two claws
![Sony HCD-DZ720 [19/92] Two claws](/views2/1793005/page19/bg13.png)
19
HCD-DZ720

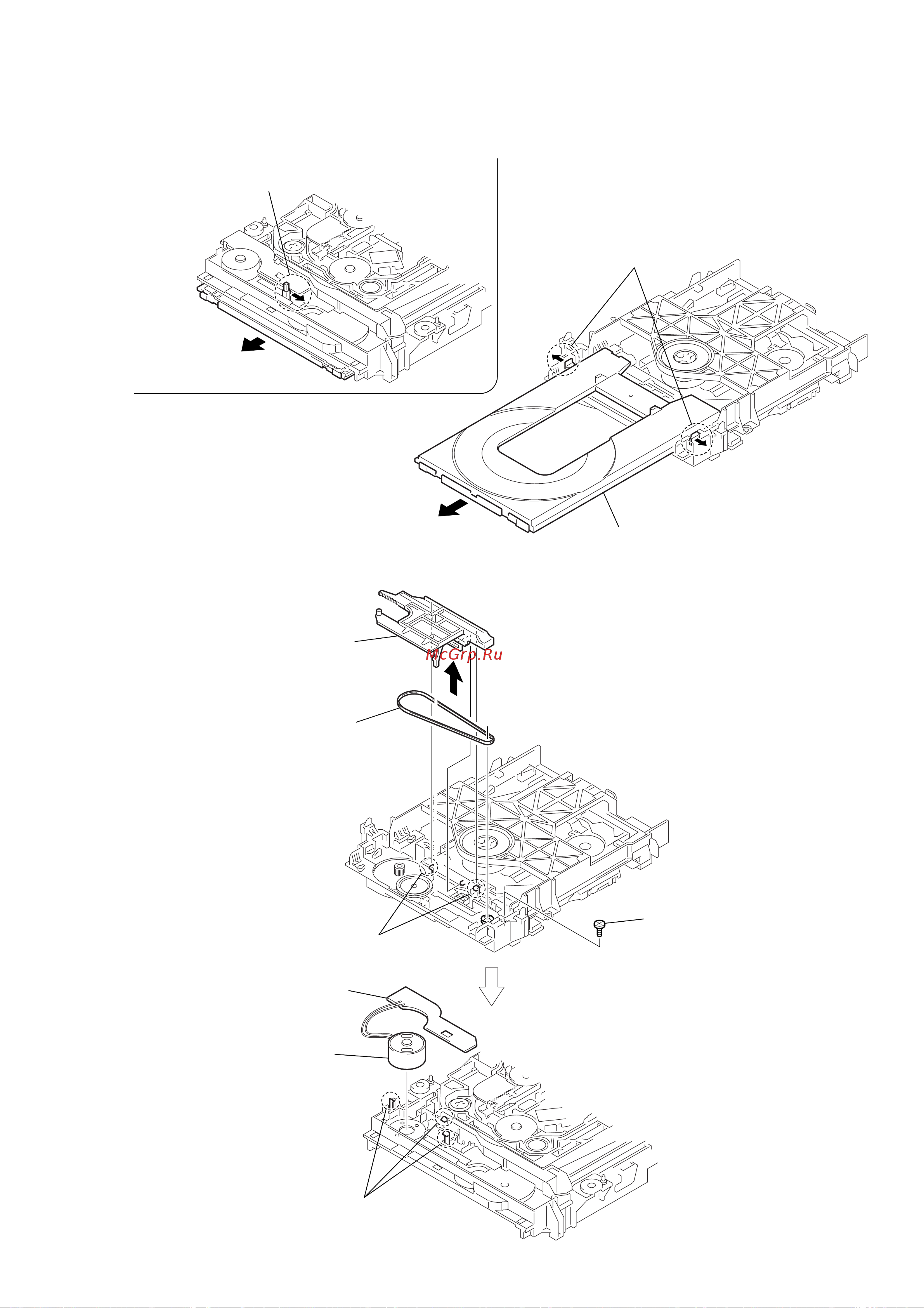

3-11. TRAY
4
2
3
two claws
5
tray
1
Move the chuck cam
in the direction of the arrow.
bottom side
1
two claws
5
three claws
7
MS-203 board
6
DC motor
3
belt
2
chuck cam
4
screw
(M 1.7
×
2.5)
3-12. BELT, MS-203 BOARD
