Sony HCD-DZ720 [7/92] Hcd dz720
![Sony HCD-DZ720 [7/92] Hcd dz720](/views2/1793005/page7/bg7.png)
7

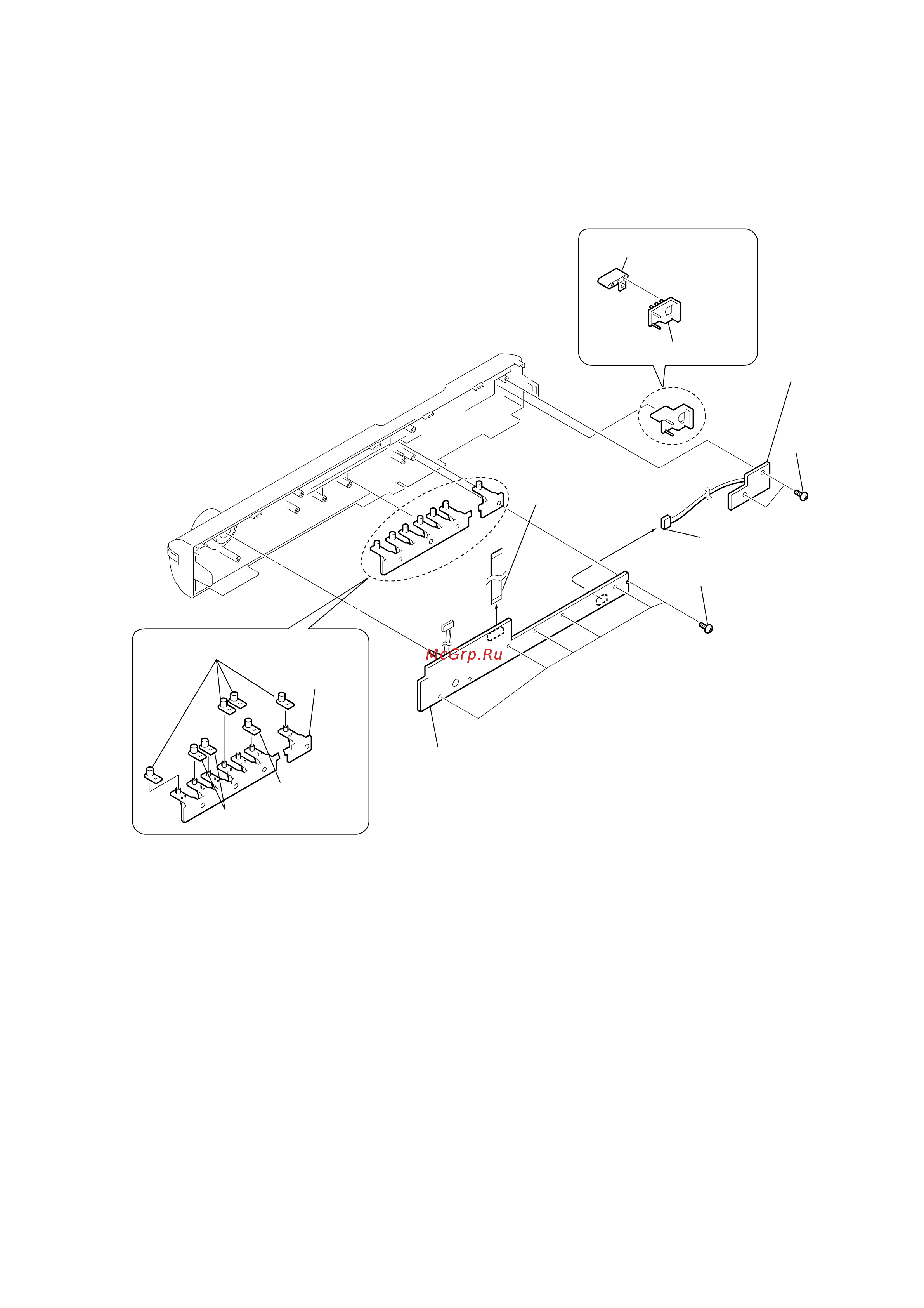

HCD-DZ720
JACK board
BUTTON BASE
(PLAY)
CAP (POWER)
wire (flat type)
13core (CNP802)
connector (CNP801)
six screws (+BVTP 2.6)
two screws
(+BVTP 2.6)
BUTTON BASE (POWER)
SW board
CAP (PLAY)
CAP
(AMS)
CAP
(FUNC)
Precaution when replacing the CAP
Please apply the adhesive agent to the BUTTON BASE (PLAY) when replacing the CAP (PLAY) or CAP (FUNC) or CAP (AMS).
Please apply the adhesive agent to the BUTTON BASE (POWER) when replacing the CAP (POWER).
