9
HCD-DZ720

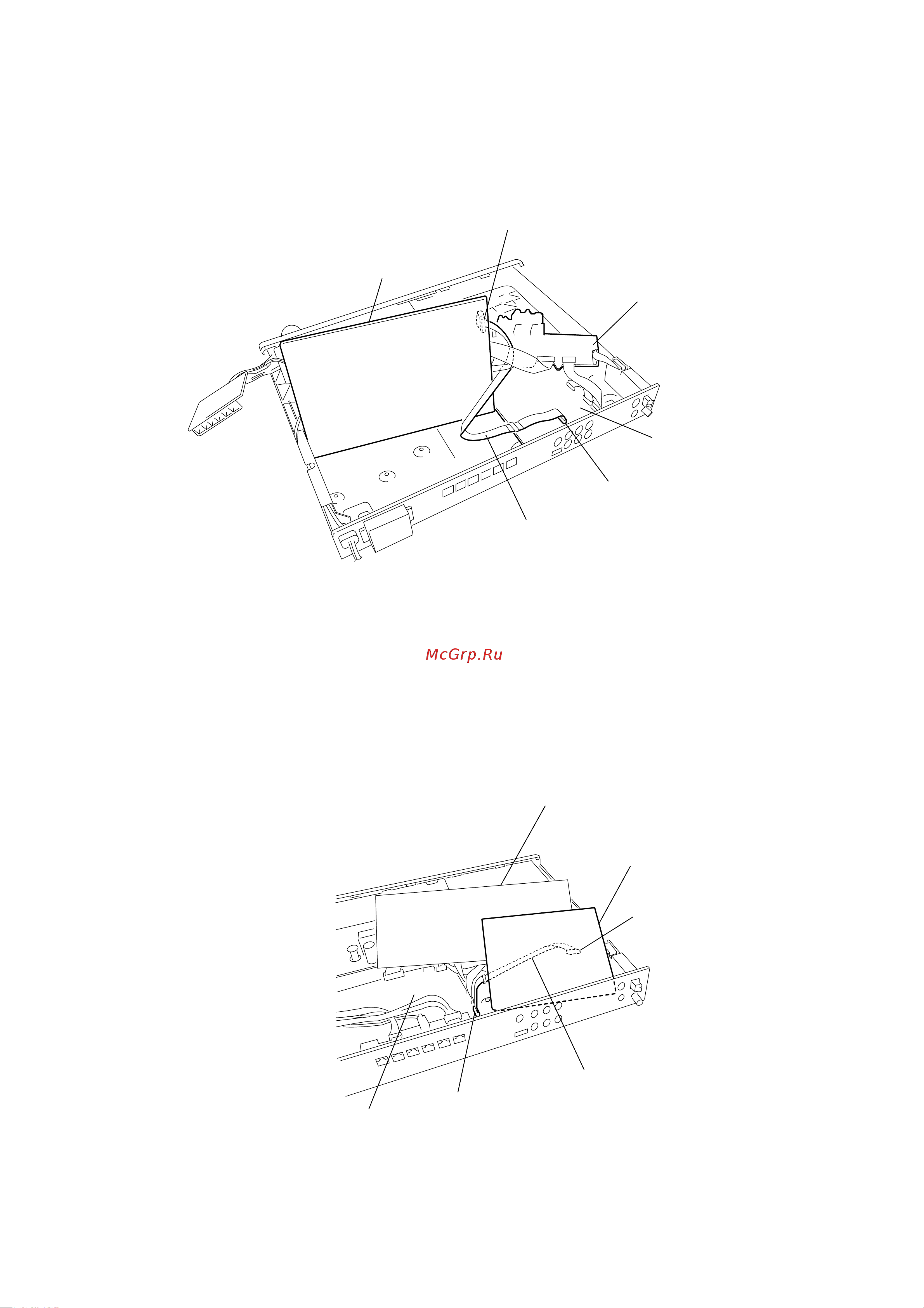

• MAIN board service position
IO-S TERMINAL board
DMB12 board
MAIN board
CN701
Extension cable
J-2501-225-A
(1mm/9pin/L300)
CN4501
insulation sheet
Extension cable
J-2501-225-A
(1mm/9pin/L300)
DMB12 board
MAIN board
CN4501
CN701
• DMB12 board service position
