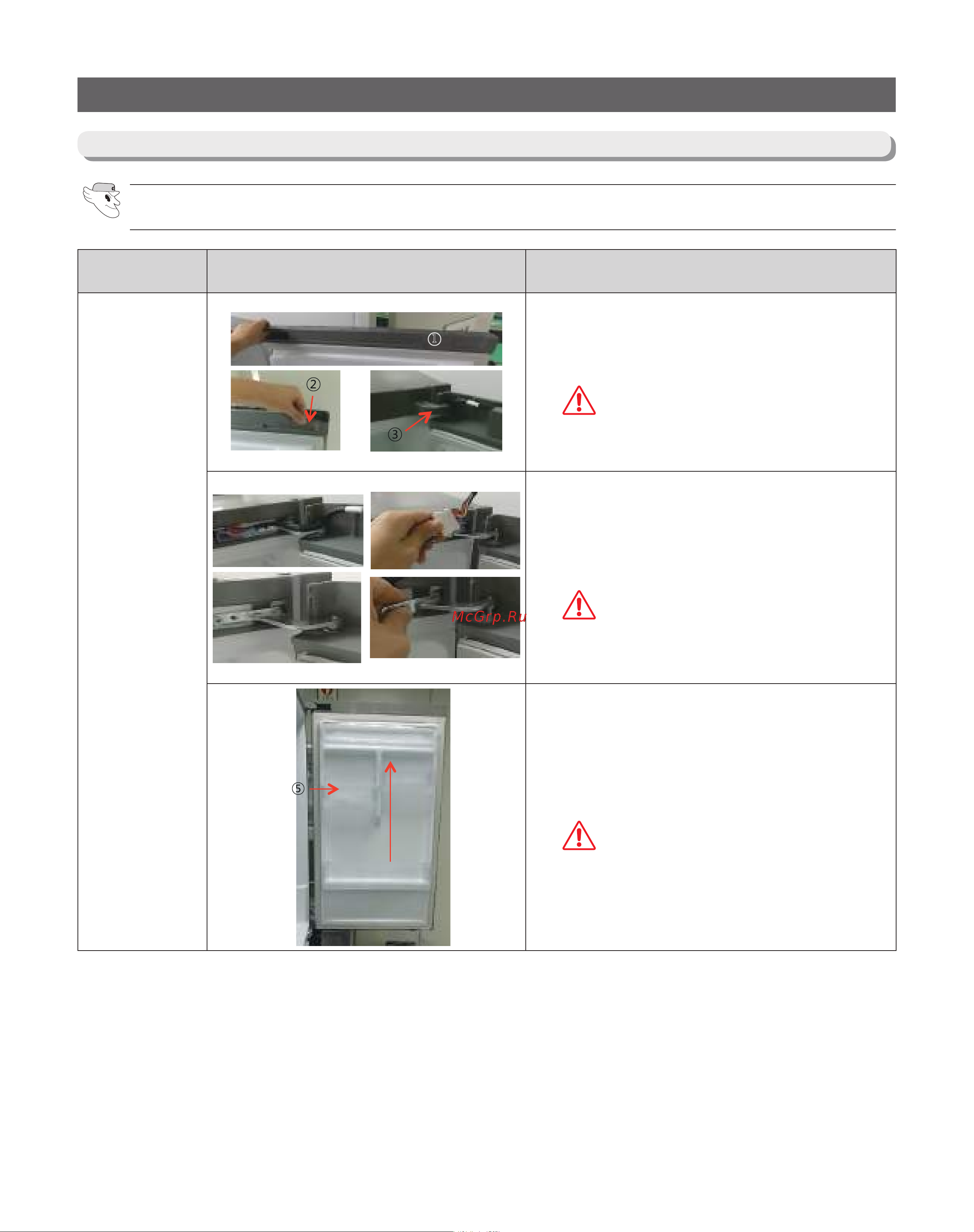

3. DISASSEMBLY & REASSEMBLY
Removing the Refrigerator Door
3-2) Assy Door
PART NAME FIGURE DESCRIPTION
Removig the
Refrigerator
Door
1. Remove the Cover Wire(①), Cap Space Door(②),
Cover Hinge(③) using a flathead screwdriver.
Be careful of injury.
2. Remove hinge screws (③) by turning to
counterclockwise, and take off the cover hinge
(④) along the arrow.
Take care when removing the
door to ensure that it does not
fall on you.
3. Remove the door from the middle hinge by
carefully lifting the door (⑤).
Be careful not to scratch.
