56
4. TROUBLESHOOTING

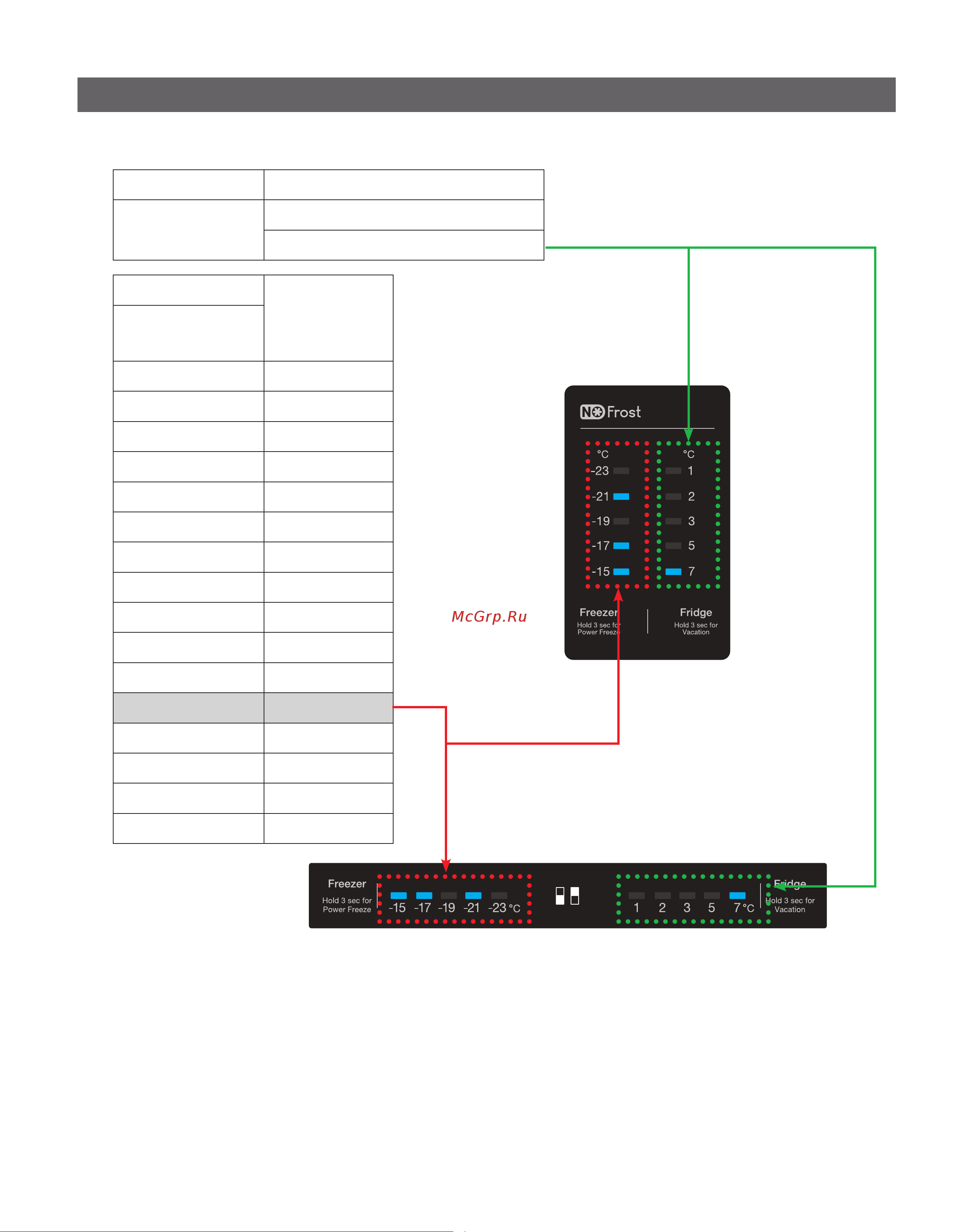

2) Fridge Temp Shift Table
Setting Item Fridge Temp Shift
Option Item
Location : Fridge Temp Display
1
Setting Value
Option Value
Fridge
Temp Display Panel
Set Value
0 0
1 -0.5℃
2 -1.0℃
3 -1.5℃
4 -2.0℃
5 -2.5℃
6 -3.0℃
7 -3.5℃
8 +0.5℃
9 +1.0℃
10 +1.5℃
11 +2.0℃
12 +2.5℃
13 +3.0℃
14 +3.5℃
15 +4.0℃
Ex) When shifting the Fridge default temp by +2.0℃
