Samsung RB37A52N0SA [28/101] Disassembly reassembly
![Samsung RB37A52N0SA [28/101] Disassembly reassembly](/views2/2003577/page28/bg1c.png)
28

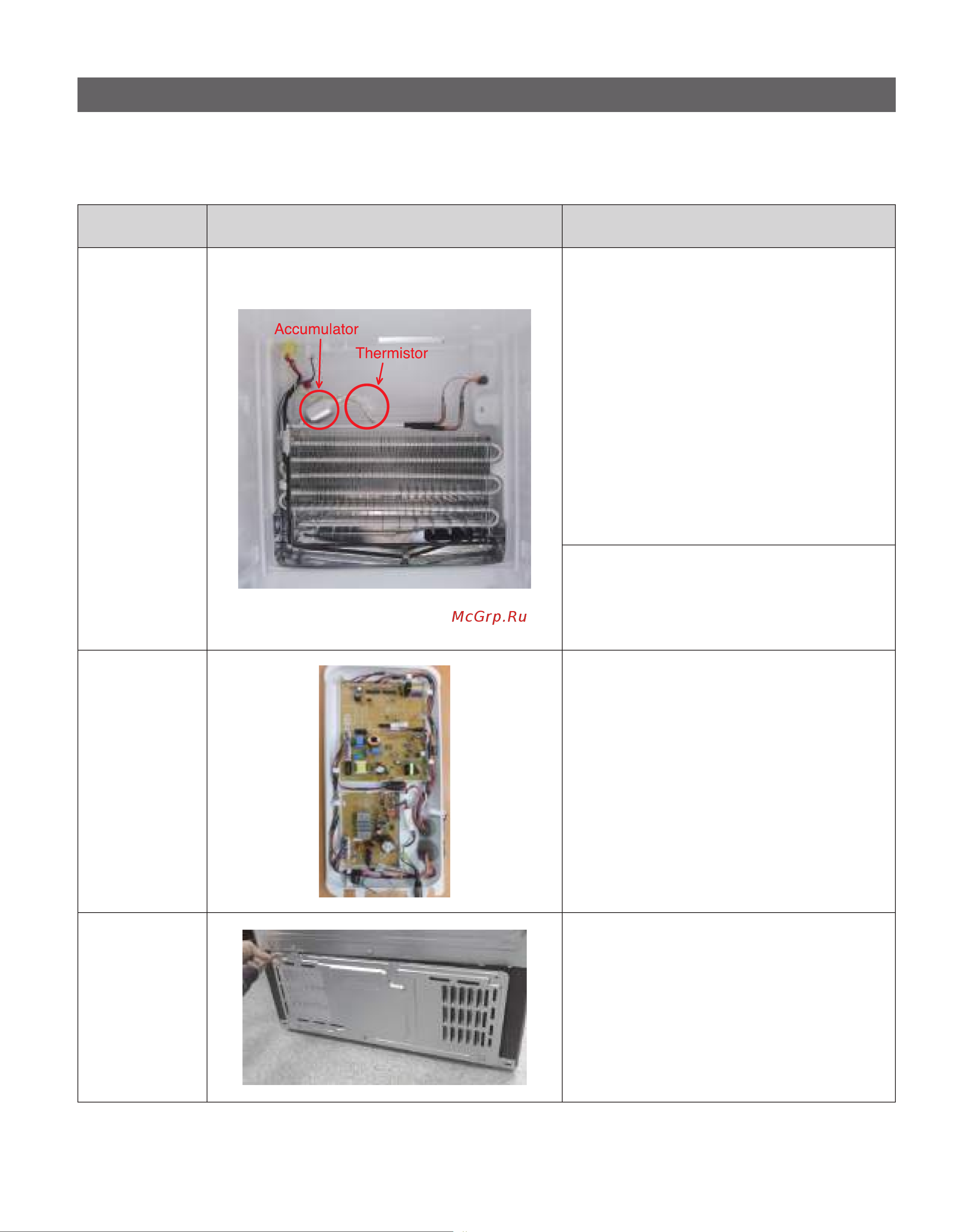

3. DISASSEMBLY & REASSEMBLY
PART NAME FIGURE DESCRIPTION
Evaporator In
Freezer
Evaporator is located in the bottom of
freezer to produce cold air driven across the
evaporator Coils.
1. Take off the ductwork in Freezer.
2. Disconnect the wire connector.
(Heater, thermal fuse and Thermistor.)
3. Cut the pipes, desoldering is dangerous
with R600a or R134a charged appliances.
4. Remove the evaporator.
5. Take the same steps to seal the system as
mentioned earlier.
The freezer thermistor is located at the upper
left of freezer vent.
It sends temperature signals to the
microprocessor.
Cover Case
Junction
Remove screw by turning to counterclockwise,
and take off the Cover case junction by
pulling out.
Cover
Compressor
Remove 3 screws by turning to
counterclockwise, and take off the Cover
Compressor by pulling out. (It's only for A+++
Model.)
