Samsung RB37A52N0SA [35/101] Disassembly reassembly

3. DISASSEMBLY & REASSEMBLY

PART NAME FIGURE DESCRIPTION

Removing

the

Refrigerator

Door

(Reversible)

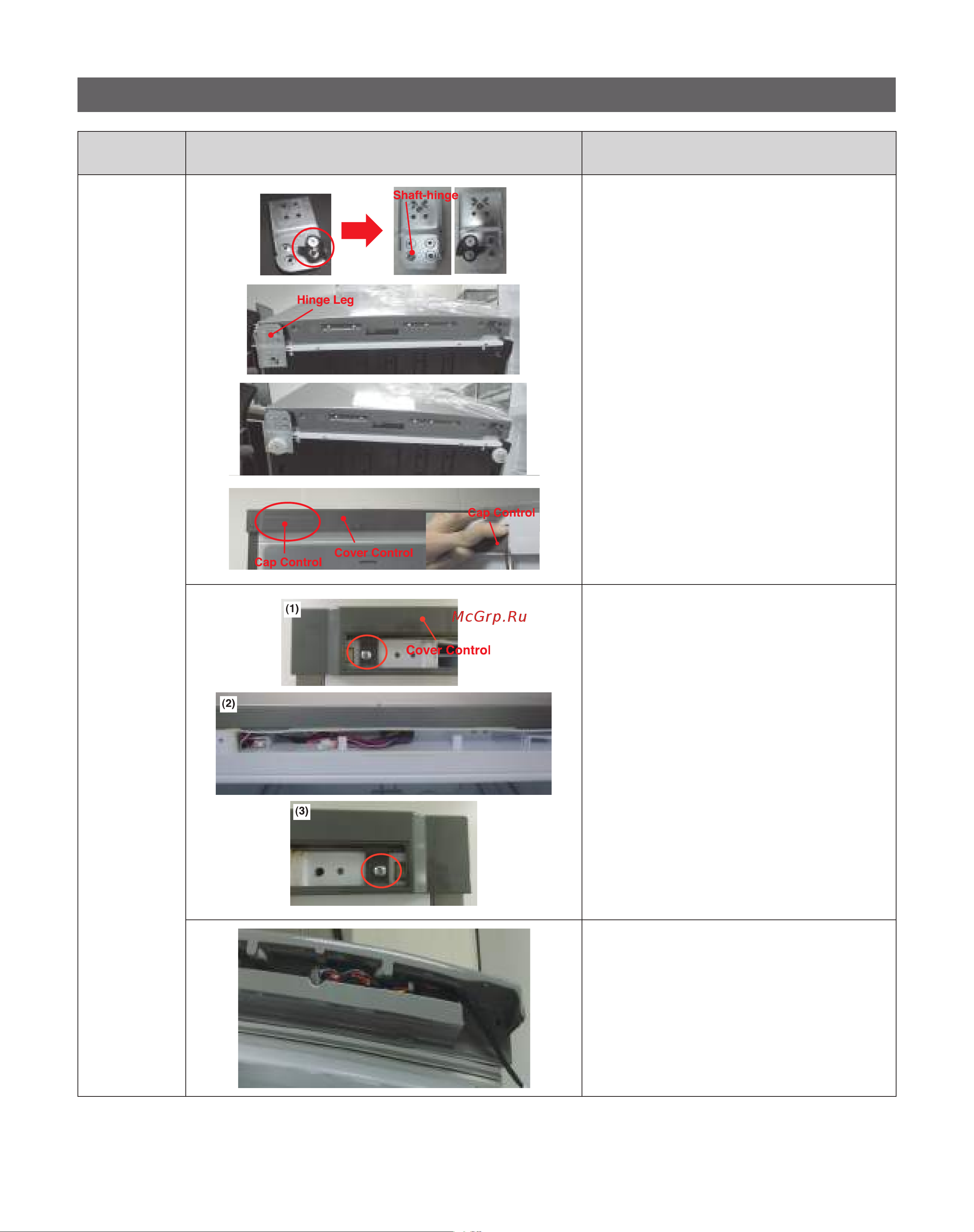

13. Switch the position of Bottom hinge and

Leg. (Right -> Left)

Assemble the Hinge Low after putting

the Freezer Door in the middle hinge.

• Disassemble the Guide auto close and the

Shaft-hinge.

• Assemble the Shaft-hinge and the the

Guide auto close like this Picture.

The loosening power of HINGE SHAFT

should be 30 Kg/cm or more.

• Put the Cap-Control out from the Cover

Control like the Picture.

14. Remove the Screw and disassemble the

Cover control (1), Switch the Wire door

(2) direction to opposite side on Fridge

Door (Door Display type only).

Assemble the Cover-Control with Screw

like a Picture (3).

15. Switch the Wire-Door Direction to

opposite side like the Picture.
