29
3. DISASSEMBLY & REASSEMBLY
3-6) Machine Compartment

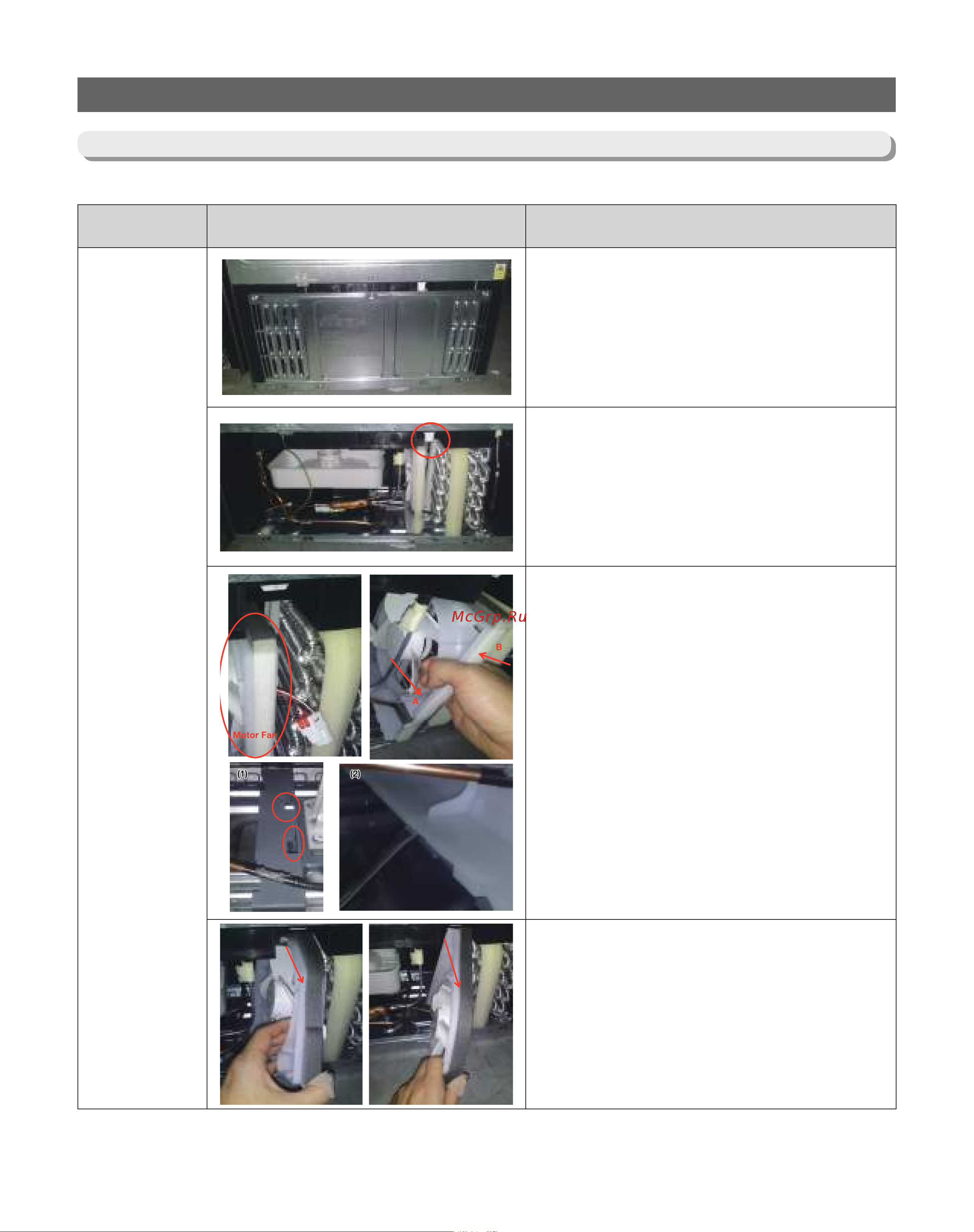

PART NAME FIGURE DESCRIPTION
Motor Fan
1. Remove the Cover Comp.
2. Disconnect the Wire Connector.
3. After pulling the ASSY MOTOR FAN UNIT in the
“A” direction and push it in the “B” direction.
If it is hard to take it out, (1) insert a flat-head
screwdriver (2) along the locking tabs located
under the ASSY MOTOR FAN UNIT.
And then, leverage it up and remove it.
4. Remove it by pulling.
