Samsung RB37A52N0SA [68/101] Troubleshooting
![Samsung RB37A52N0SA [68/101] Troubleshooting](/views2/2003577/page68/bg44.png)
68
4. TROUBLESHOOTING
Defrost Sensor is normal?
(Check it with Self-Diagnosis)
The Sensor Temperature Value
is lower than 8℃.
After heating up
for a while, it goes back to
Cooling Operation
MAIN PCB
Connection is normal?
Power is applied to
F-Defrost Heater.
Start
Do Forced Defrost
Normal
Check Bimetal, Heater Wire Cut or
Wire Contact
Repair Defective Relay or
replace PCB Assy
Replace the Sensor
Forced Operation for a while
Repair Connector
Check the related sensors
if they are defective.
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Temp vs. Resistance Table
30℃ 4.22㏀
For more
detail data,
refer to
DATA1. Temp
Table
20℃ 6.05㏀
10℃ 8.87㏀
0℃ 13.29㏀
-10℃ 20.42㏀
-20℃ 32.23㏀
-30℃ 52.41㏀
** Sensor Resistance Reading Location **
F-DEF : Between CN30 #4 (RED) ↔ CN30 #7 (GRU)
** 0Ω : Short / ∞Ω : Open
** Sensor Voltage Reading Location **
F-DEF : Between PCB COMMON Ground
and CN30 #4 (or SEN_2)
** 0V : Short / 5V : Open
Note When the temperature of the F DEF Sensor
goes over 8℃ with the Defrost Heater heating up, it
stops heating and it goes back to Cooling Operation.
After pressing the Freezer and the Fridge
buttons simultaneously for 4 seconds,
push the Freezer button to enter the
Test Mode. And then, when any one of
the buttons is pressed twice, the Forced
Defrost will start and the relevant LED
Lamp will light up on the display panel.
** Heater Resistance Reading Location **
F-DEF : Resistance between CN70 #5 (BRN) ↔
CN77 #3 (ORG) should be 260 ohm ± 10%.
** 0Ω : Short / ∞Ω : Open
(Bimetal / Thermal Fuse / Heater Defect)
Refer to Self-Diagnosis
Check Bimetal, Heater
Continuity or Wire Connection
All Defrost Heaters
are normal?
Yes
No

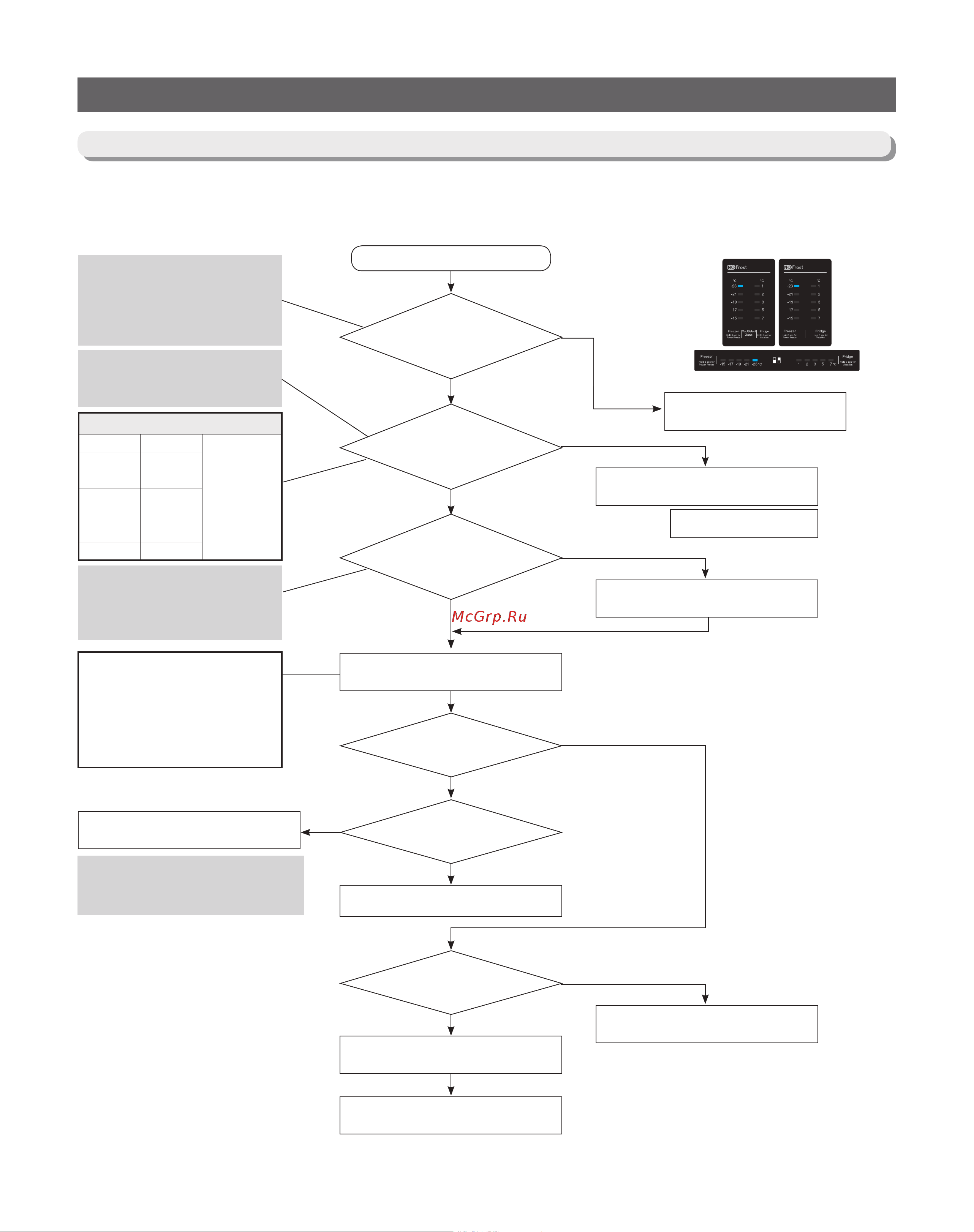

4-2-5) When Defrost does not work (F DEF Heater)
- When there is a trouble in defrosting, select the Self-Diagnosis function before turning off the unit.
And, check if there is any defect in the Defrost Heater. If not, plug out the unit and do the Trouble-Shooting.
(Refer to the Self-Diagnosis function and check the details)
☞ When checking with the Self Diagnosis
