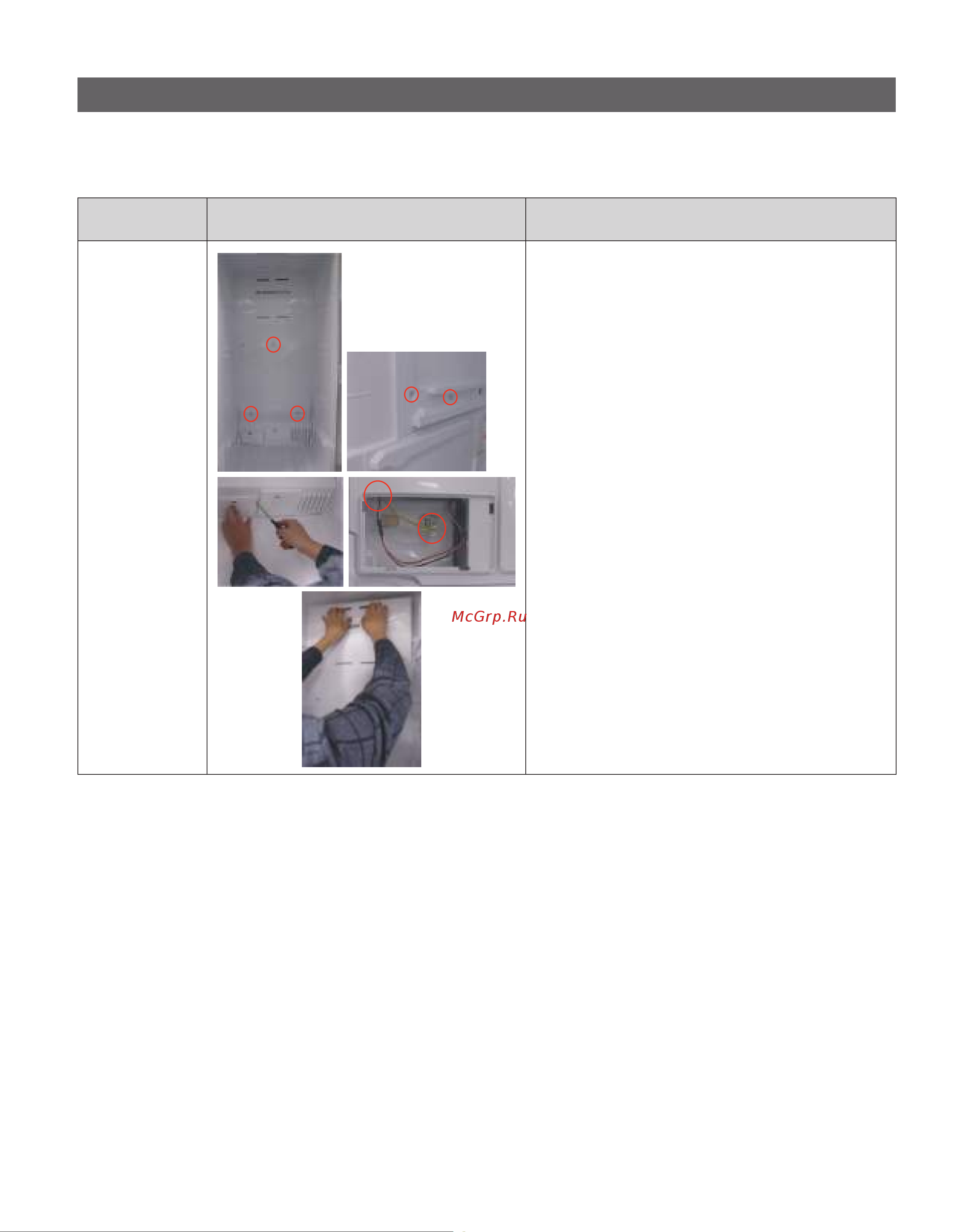

3. DISASSEMBLY & REASSEMBLY
PART NAME FIGURE DESCRIPTION
Assy Cover
Multi
1. Remove all shelves, plastic drawer.
2. Remove 7 screws, side of refrigerator as shown
3. Open Cover conv multi by using tool and
remove housing connector.
When disassembling, make sure the unit turned
off.
4. Catch outlet part and Pull assy cover multi REF
on one side of refrigerator as shown.
- Refrigerator assembly order is the reverse of
disassembly.
