Samsung RB37A52N0SA [27/101] Disassembly reassembly
![Samsung RB37A52N0SA [27/101] Disassembly reassembly](/views2/2003577/page27/bg1b.png)
27

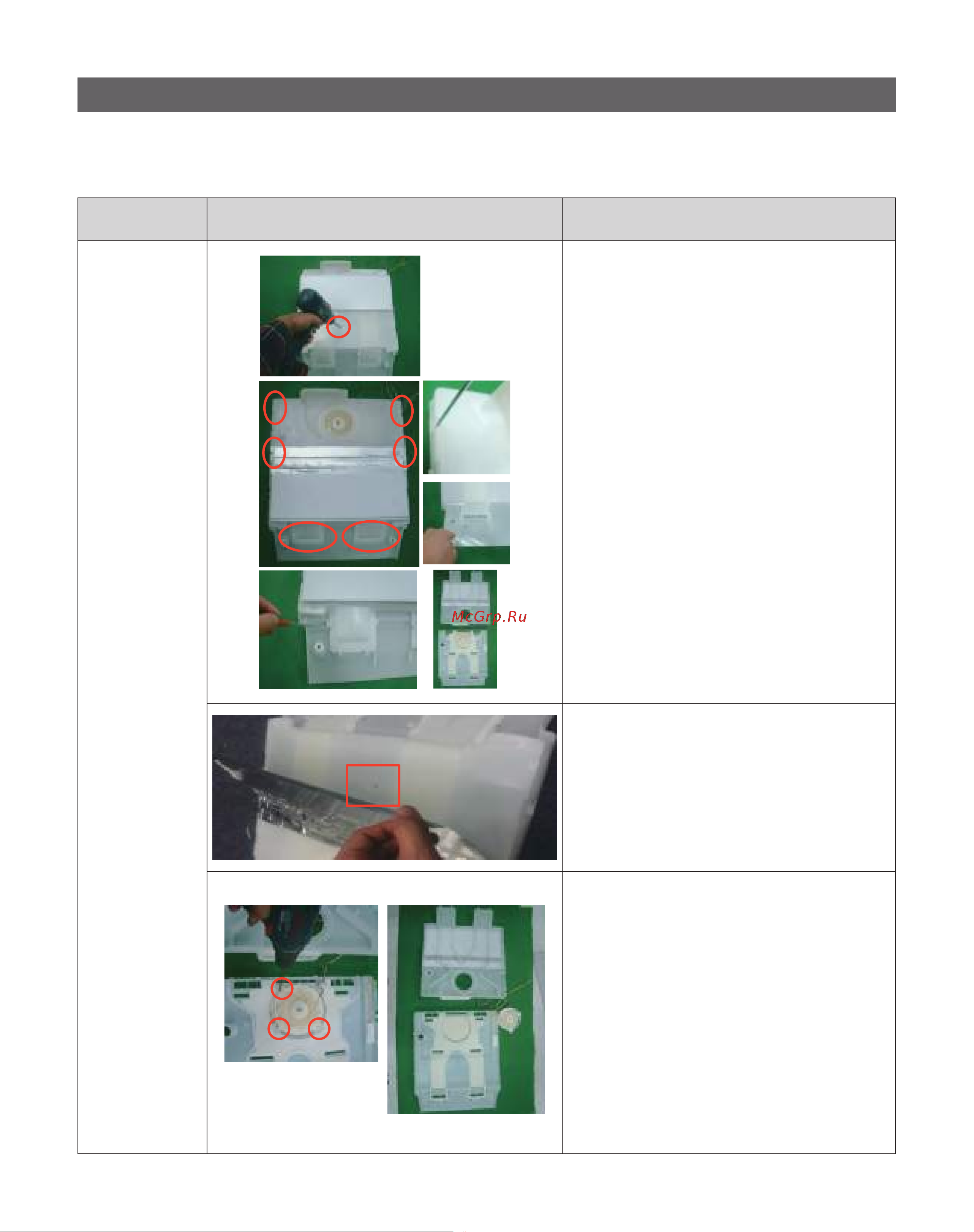

3. DISASSEMBLY & REASSEMBLY
PART NAME FIGURE DESCRIPTION
Fan Motor In
Freezer
1. Pull back the plate and remove 1 screw.
2. Disassemble the Cover Evap Front
and Cover Evap REAR with flat-head
screwdriver.
Be careful in disassembly.
The Screw is covered by Plate Cover Evap
Rear.
Remove 3 screws.
