3. DISASSEMBLY & REASSEMBLY
3-4) Refrigerator Compartments

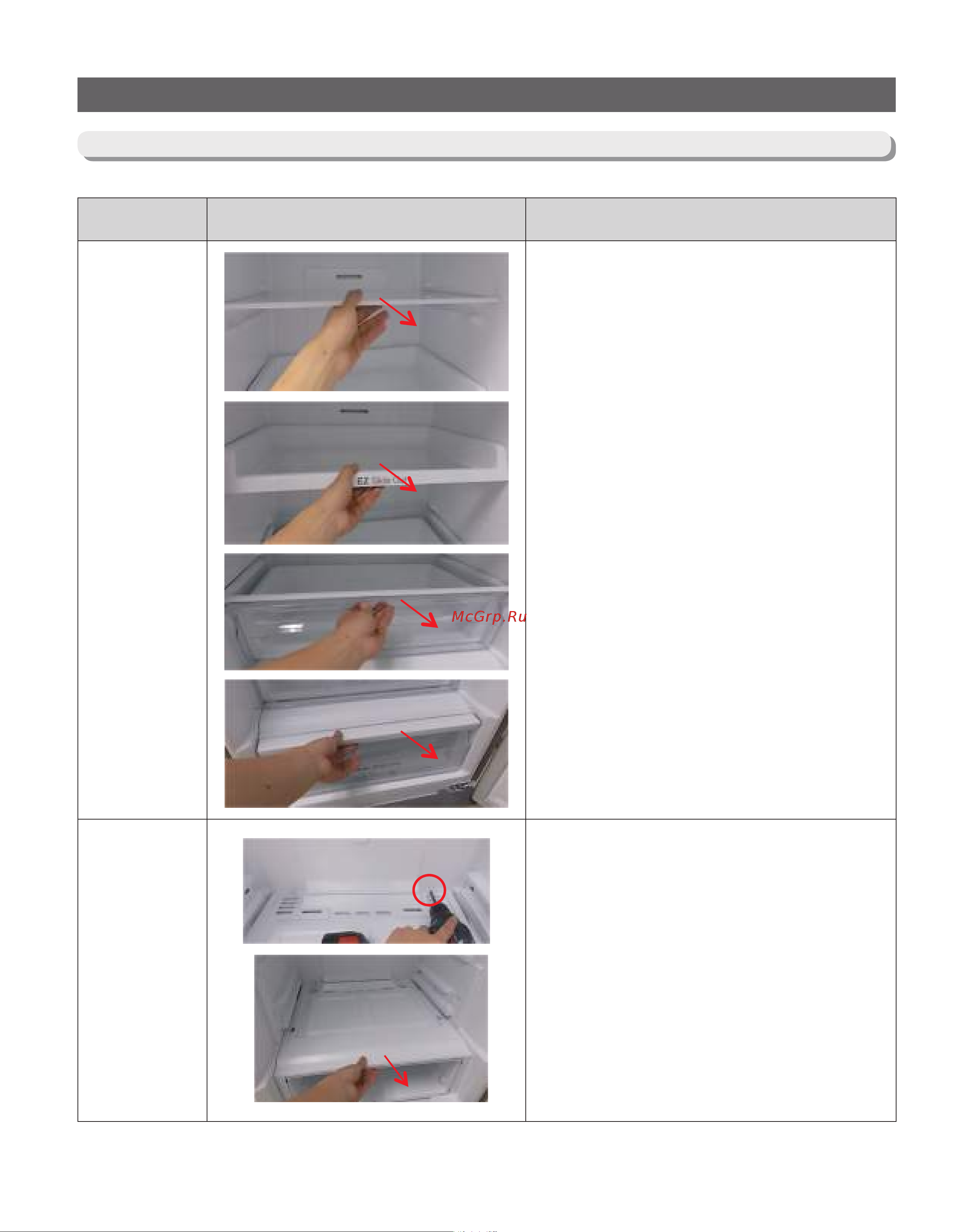

PART NAME FIGURE DESCRIPTION
Shelf
These shelves allow the storage of larger items
and pull out for easy access.
1. Lift it up and pull the shelf out to the front.
Plastlc Drawers
In
Refrlgerator
Drawers are designed for storage of fruits,
vegetables and deli items.
The drawers are located in the lower portion of the
refrigerator.
1. Remove 1 screw.
2. Pull out the drawer as far as it goes.
3. Tilt the drawer up and pull it out until it is
removed.
