4. TROUBLESHOOTING
4-1-6) Option Setting Function

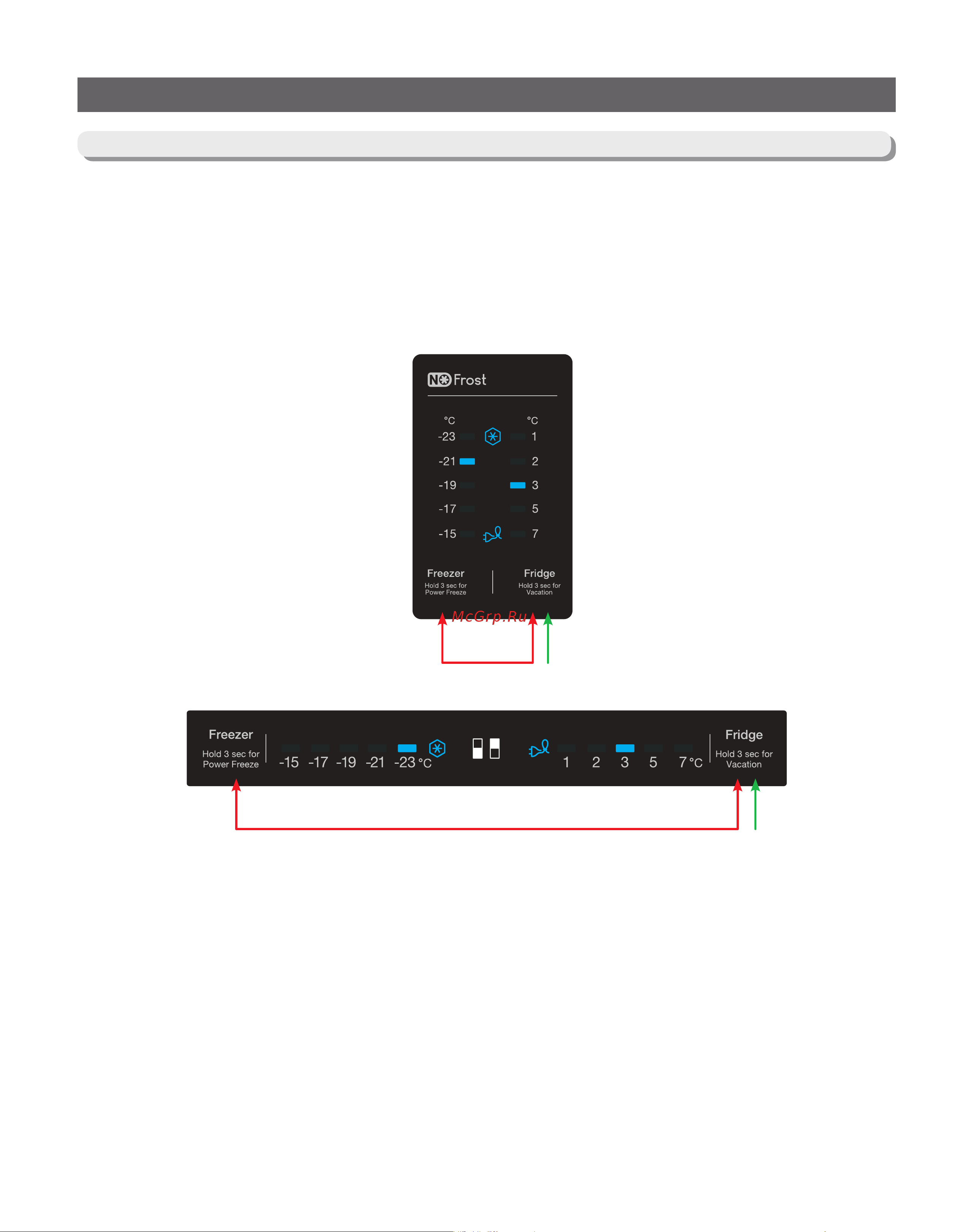

1) During the Normal Operation, press the Freezer + Fridge buttons for 4 seconds.
Then, the entire Display Panel will blink at the interval of 0.5 seconds for 3 seconds.
2) At this time, release the Freezer + Fridge buttons and press the Fridge button (it sends out "Ding Dong"
sound.) Then, it shifts to the Option Setting mode.
● When there is no button press for 20 seconds at the Option Setting Mode, it will go back to the normal
display mode.
① Press the Freezer + Fridge buttons for 4 seconds at the same time.
Then, the Display LEDs will blink for 3 seconds. At this time, release the buttons
② and, press the Fridge button once.
① ②
① ②
