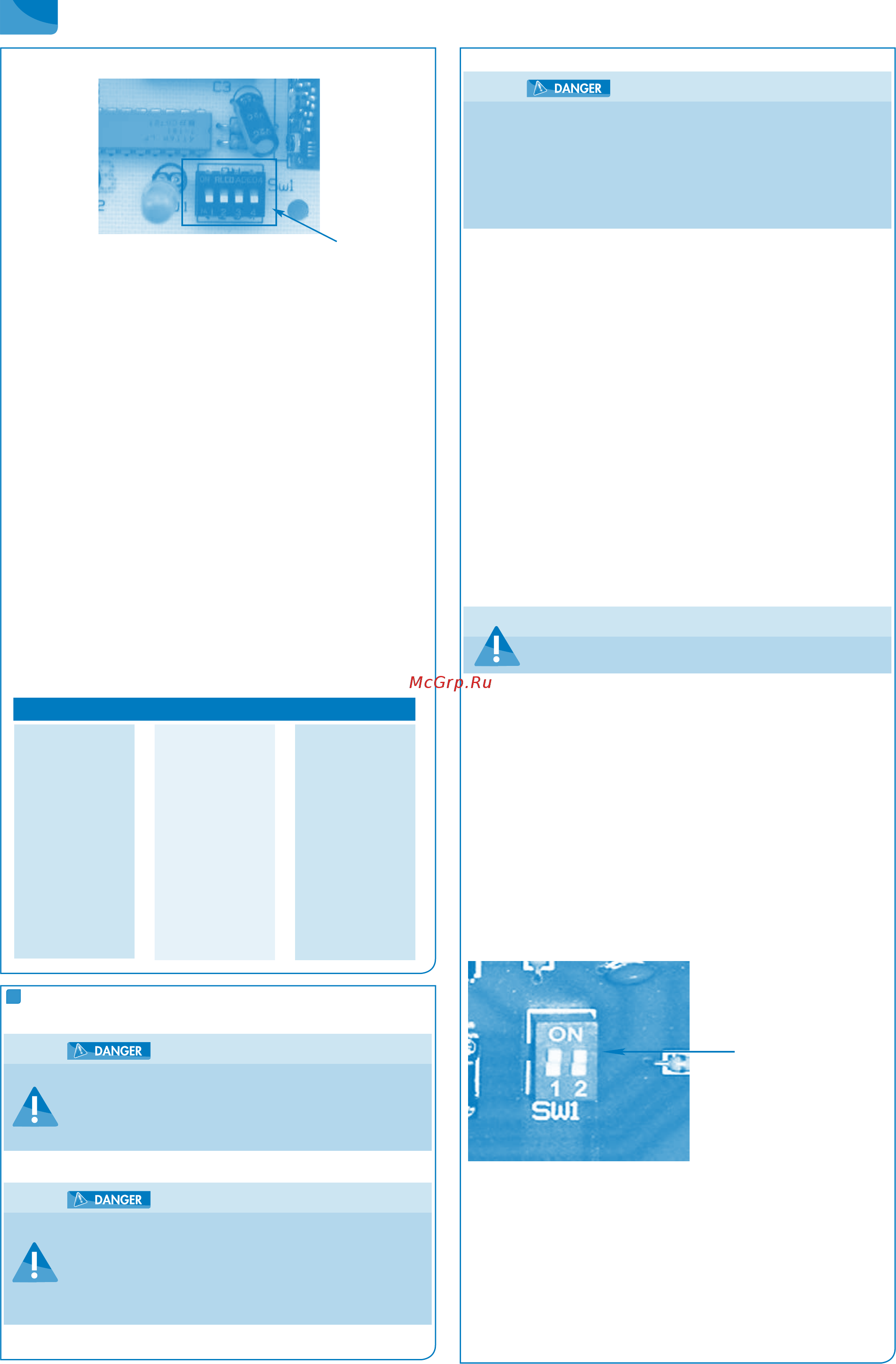

27
UK
Alarm unit card
Warning: the code must be the same for both cards.
The alarm unit has 3 LEDs and 1 buzzer.
1/ The red «general alarm» LED reproduces the operation of the red LED on
the base card.
2/ The yellow «HF reception» LED reproduces the operation of the base
card’s yellow mains LED:
- steady = transmission OK, live base card
- ashing = transmission OK, but mains fault on the base card (which then
operates on battery)
- o = no HF reception (make sure the code is the same as the one on the
base card) or loss of HF signal (too far away) discharge, discharged battery
or failure of the base card.
3/ The green «mains» LED indicates the power status of the remote alarm
unit:
- steady = live unit
- ashing = mains fault on the unit (which then operates on battery)
- o = failure of the unit or the unit’s battery is discharged
4/ The buzzer sounds continuously during an alarm. It stops buzzing if the
alarms disappear or if you press the general alarm reset button.
6.3 Messages and faults
Table 7: Messages and faults:
Alarm on the device SANICUBIC® 1 and SANICUBIC® 1 WP:
Green LED: station live
Alarm on the device SANICUBIC® 2 Classic and SANICUBIC® 2 Pro and
SANICUBIC® 2 XL: Yellow LED: station live
ANOMALY DETECTED
Flashing red alarm LED
Steady red alarm LED
LED off
CAUSES PROBLEMS
• Water level detection
system faulty
• Clogged vent pipe
• Clogged drain line
• Blocked or out of order
pump
• Discharge too high or
excessive inflow
• Mains failure
• Faulty electronic board
SOLUTIONS
• Consult SFA after-sales
service
• Check that air flows freely
in both directions in the
vent pipe
• Go over the installation
again
• Consult SFA after-sales
service
• Check the electrical system
• Consult SFA after-sales
service
7
MAINTENANCE
7.1 General information / Safety instructions
Work performed on the pumping station by unqualied sta. Risk
of injury!
w Repairs and maintenance must be performed by specially
trained sta
w Observe the safety and basic instructions.
Pumped uids and secondary consumable materials that are har-
mful to health. Dangerous for people and the environment!
w Pumping stations used to discharge uids that may be harmful
to health must be decontaminated.
If necessary, wear a mask and protective clothing.
w Observe current legal provisions for the discharge of uids
harmful to health.
7.2 Maintenance and inspection operations
Work on the pumping station without adequate preparation.
Risk of injury!
w Properly stop the pumping station and secure it against inad-
vertent operation.
w Close the inlet and discharge valves.
w Drain the pumping station.
w Close any auxiliary connections.
w Allow the pumping station to cool to room temperature.
In accordance with EN 12056-4, pumping stations must be maintained and
repaired to ensure the proper disposal of wastewater and to detect and
eliminate malfunctions at an early stage.
The proper functioning of pumping stations must be checked by the user
once a month by observing at least two operating cycles.
The inside of the tank should be checked from time to time and deposits,
especially around the level sensor, should be removed, if necessary
In accordance with EN 12056-4, maintenance of the pumping station must be
performed by qualied sta. The following intervals should not be exceeded:
• 3 months for pumping stations for industrial use
• 6 months for pumping stations for small communities
• 1 year for domestic pumping stations
7.3 Maintenance contract
As with any technical, high-performance equipment, SANICUBIC® pumping
stations must be maintained to ensure a sustainable level of performance. We
recommend you take out a maintenance contract with a qualied company
to carry out regular inspection and maintenance work. For more information,
please contact us.
7.4 Emergency service with a single pump
NOTE
If emergency service must be ensured during maintenance and
inspection work, perform the following steps.
1. Close the valves on the inlet and discharge sides.
Warning: The incoming feed for inlets must be minimised while performing
maintenance
2. Turn o the power supply.
7.5 Checking the hydraulics of each motor
• Make sure its blade and plate are not blocked or damaged (excluding
SANICUBIC® 2 XL)
• Make sure the turbine rotates freely
• Make sure the hydraulic parts are clean. Clean them if necessary.
In case an motor is not working properly, it is possible to “disable” the use of
this motor by switching the corresponding “switch” on the main card to in-
dicate the absence of the corresponding motor. The card will only work with
the valid motor - SW1: switch 1 and 2 for motor 1 (left) and 2 (right).
NOTE: If both switches are
lowered (off position), abnor-
mal situation, the card will be
in alarm mode when power is
restored
7.5.1 General information
Inspect the tank, check for possible deposits, the presence of grease and
foreign bodies. Thoroughly clean the tank and remove foreign bodies.
7.5.2 Disassembling the motor
1. Unscrew the motor hatch from the tank cover (10 screws).
2. Use the handle to gently lift the motor. If the defective motor is to be
returned to the manufacturer, the pumping station can provide a minimum
service with one single motor.
3. Unscrew the screws of the faulty motor from the hatch.
4. Put the hatch back in position.
