00.31
•

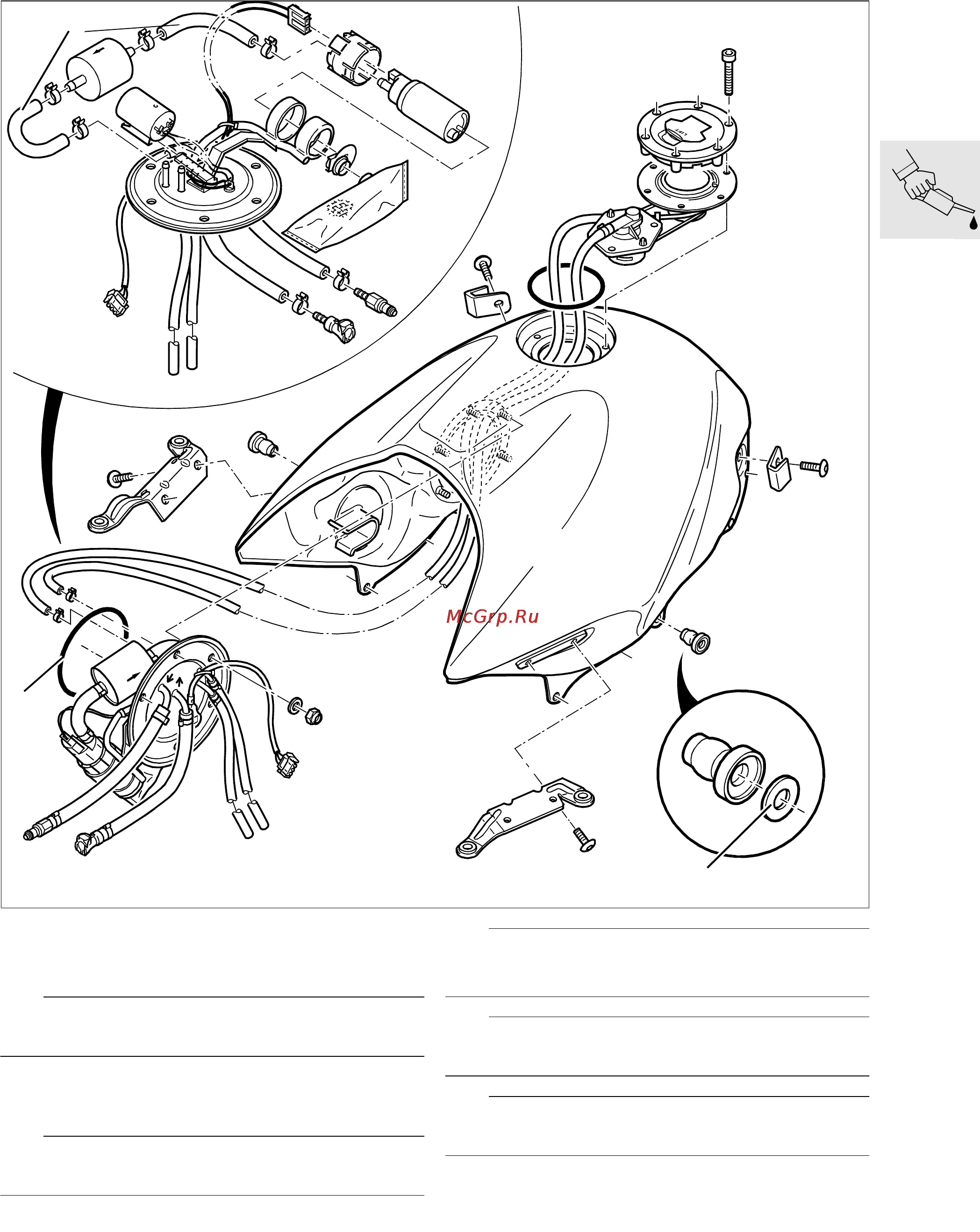

Disconnect hoses from fuel filter (1).
•
Replace the fuel filter
e Important:
Note correct direction of flow through fuel filter.
•
Tighten one-time hose clips with pliers,
BMWNo.131500.
e Important:
Make sure that O-ring (2) is in perfect condition.
•
Installation is the reverse of the removal proce-
dure.
X Tightening torque:
Fuel pump unit .............................................. 5 Nm
e Important:
After installing, check fuel pump unit for leaks.
L Note:
Make sure that breather lines are correctly routed.
L Note:
Pay attention to washers (3).
R28160010
3
11
2
