00.32

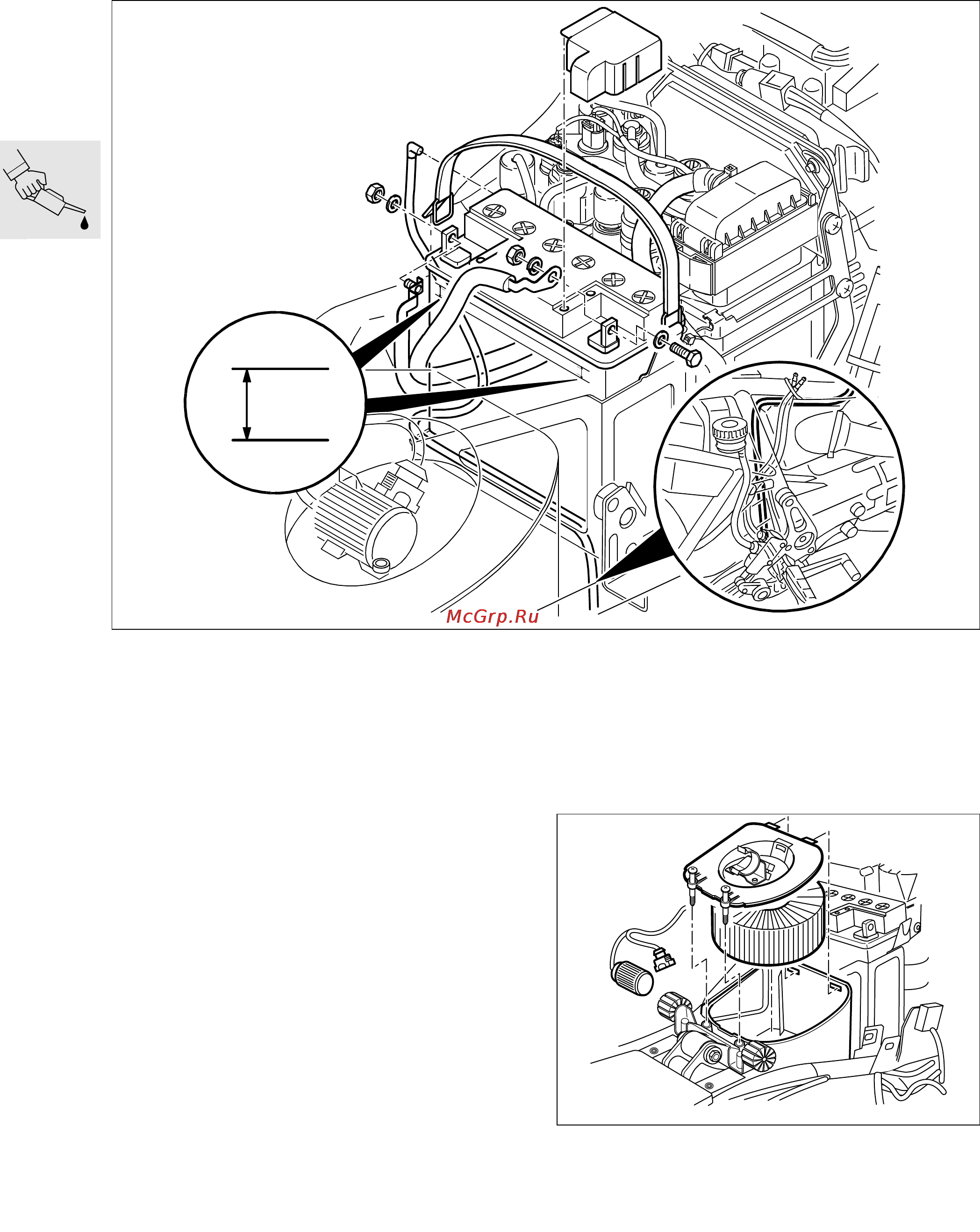

61 20 029 Checking battery fluid level
and topping up if necessary; clean-
ing and greasing the battery termi-
nals
(Inspections III and IV)
•
If necessary, disengage fuel tank and lift it at rear.
•
Disengage the rubber strap holding the battery.
•
Check the battery fluid level.
•
Top up the acid level to the “MAX” mark with dis-
tilled water.
•
Grease the battery terminals.
Acid proof battery-terminal grease:
................................................e.g. Bosch Ft 40 V1
13 72 000
Replacing intake air filter
element
(Inspection III)
In very dirty and dusty operating conditions,
replace every 10,000 km (6,000 miles) or even
more frequently if necessary
•
Open clips securing air filter cover.
•
Replace air filter element.
•
Close air filter cover.
•
Install fuel tank.
•
Make sure that breather lines are correctly rout-
ed.
X Tightening torque:
Fuel tank to frame ........................................ 22 Nm
MAX
MI N
MI N
R28000020
R28000240
