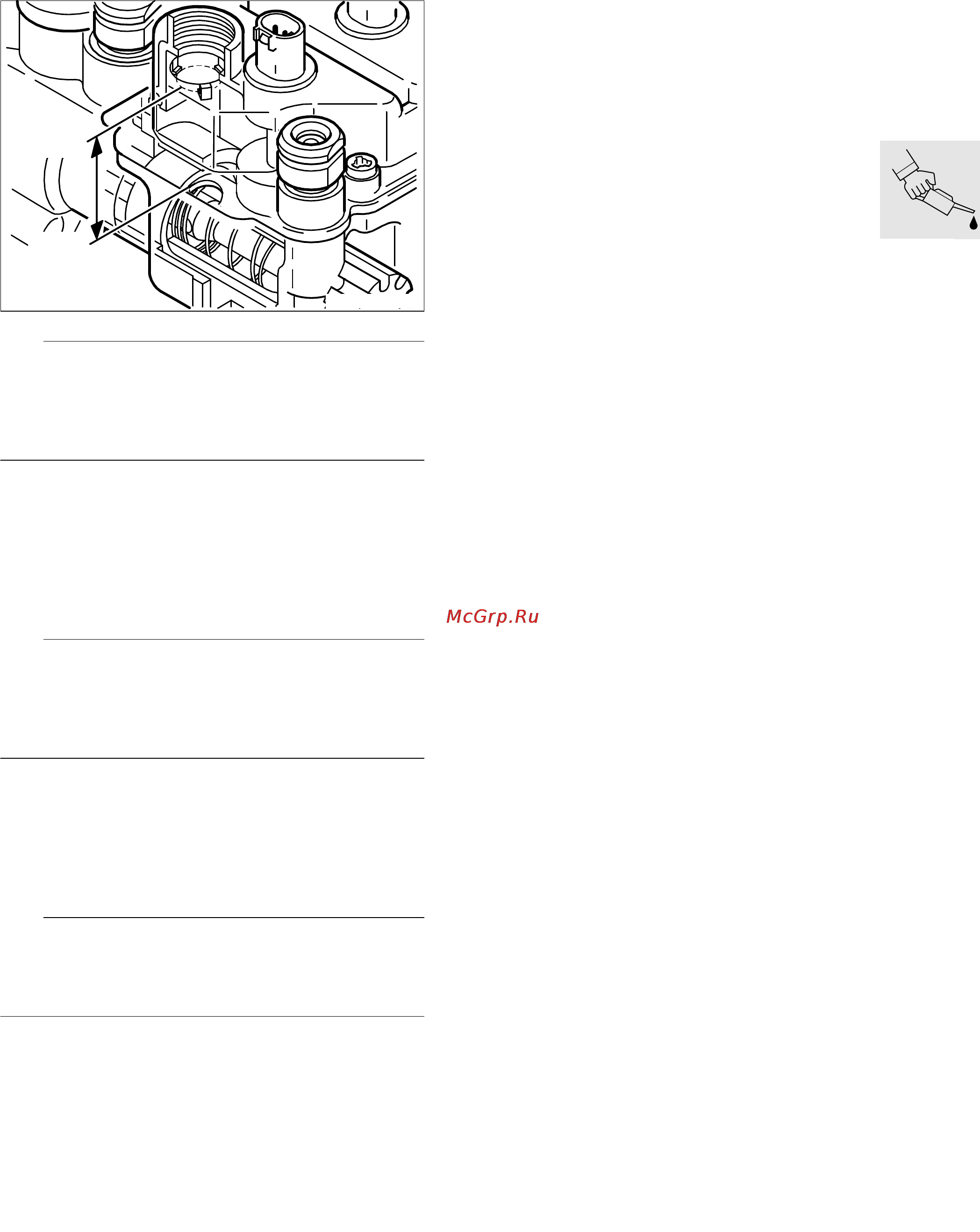

e Important:
The piston in the base of the wheel circuit reservoir
must always be covered by the fluid, as otherwise air
can be drawn into the brake system.
Bleed the system again if this happens.
•
Very gently press the footbrake until the pump
just starts up.
•
Open the bleed screw, while continuously top-
ping up the wheel circuit reservoir with new
brake fluid.
•
Pump out the brake fluid under virtually no pres-
sure to begin with, then vary the brake pressure.
L Note:
The higher the brake pressure, the faster the fluid is
pumped through the system, which means that the
level in the wheel circuit reservoir drops all the more
rapidly.
•
Pump off brake fluid until it emerges clear and
free from air bubbles.
•
Close the bleed screw.
•
Release the brake and switch off the ignition.
•
Disconnect the brake bleeding device from the
bleed screw.
e Important:
After changing and/or bleeding the brakes, always
top up the fluid in the wheel circuit reservoir to the
correct level in accordance with the instructions.
MAX
MI N
R28340090
