00.48
Rear wheel circuit reservoir filling instructions
•
Top up fluid in rear wheel circuit reservoir to
“MAX”.
•
Screw the reset device, BMWNo.341531, to
the adapter, BMWNo.341536.
e Important:
The piston in the base of the wheel circuit reservoir
must always be covered by the fluid, as otherwise air
can be drawn into the brake system.
Bleed the system again if this happens.
•
Switch on the ignition.
L Note:
Always wait for the BMW Integral ABS to complete
its self-diagnosis after the ignition is switched on.
Do not operate the brake lever until self-diagnosis is
complete.
•

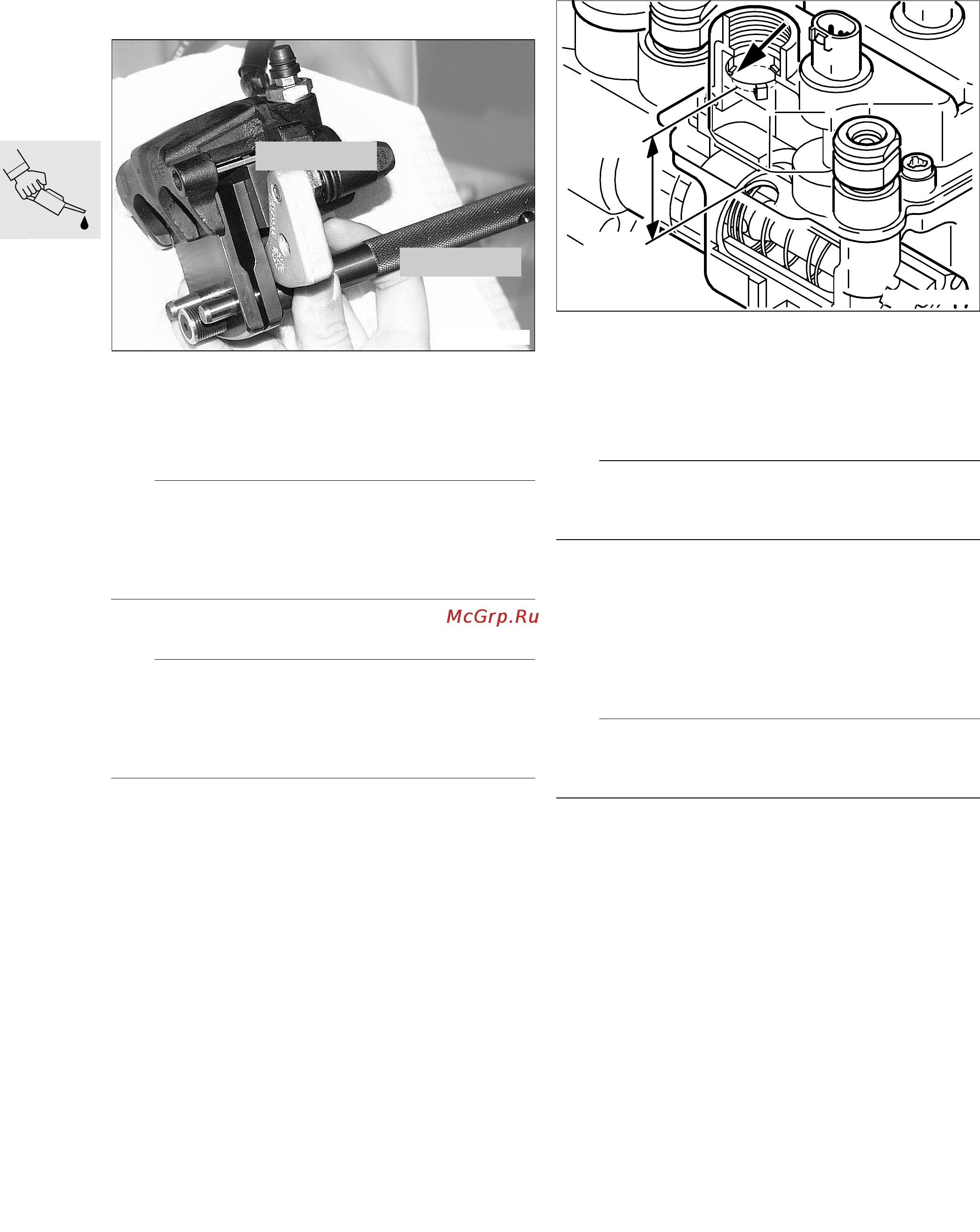

Press the foot brake lever until the rear brake cal-
iper pistons rest on the
reset device, BMWNo.341531, and the
adapter, BMWNo.341536.
•
Switch off the ignition.
•
Top up the fluid in the wheel circuit reservoir until
one of the three protrusions in the filler neck just
touches the surface of the fluid (arrow).
•
Remove the reset device, BMW No. 34 1 531
with adapter, BMWNo.341536.
d Warning:
The wheel circuit reservoir may not overflow while
the brake pads/brake calipers are being fitted.
•
If necessary, carefully press back the pistons un-
til the brake disc just fits between the brake
pads.
•
Fit the brake pads and brake caliper at the rear.
•
Hand-tighten rear wheel circuit reservoir cap.
•
Perform a function check on the brake system
with the ignition switched on.
e Important:
Once all the work has been completed, perform a
bleed test using the BMW MoDiTeC.
•
Performing a bleed test with BMW MoDiTeC.
(
a 00.27)
•
Install fuel tank.
Brake fluid ...................................................DOT 4
X Tightening torque:
Rear brake caliper bleed screw...................... 6 Nm
Brake caliper to rear wheel drive.................. 40 Nm
R28000170
34 1 536
34 1 531
MAX
MI N
R28340090
