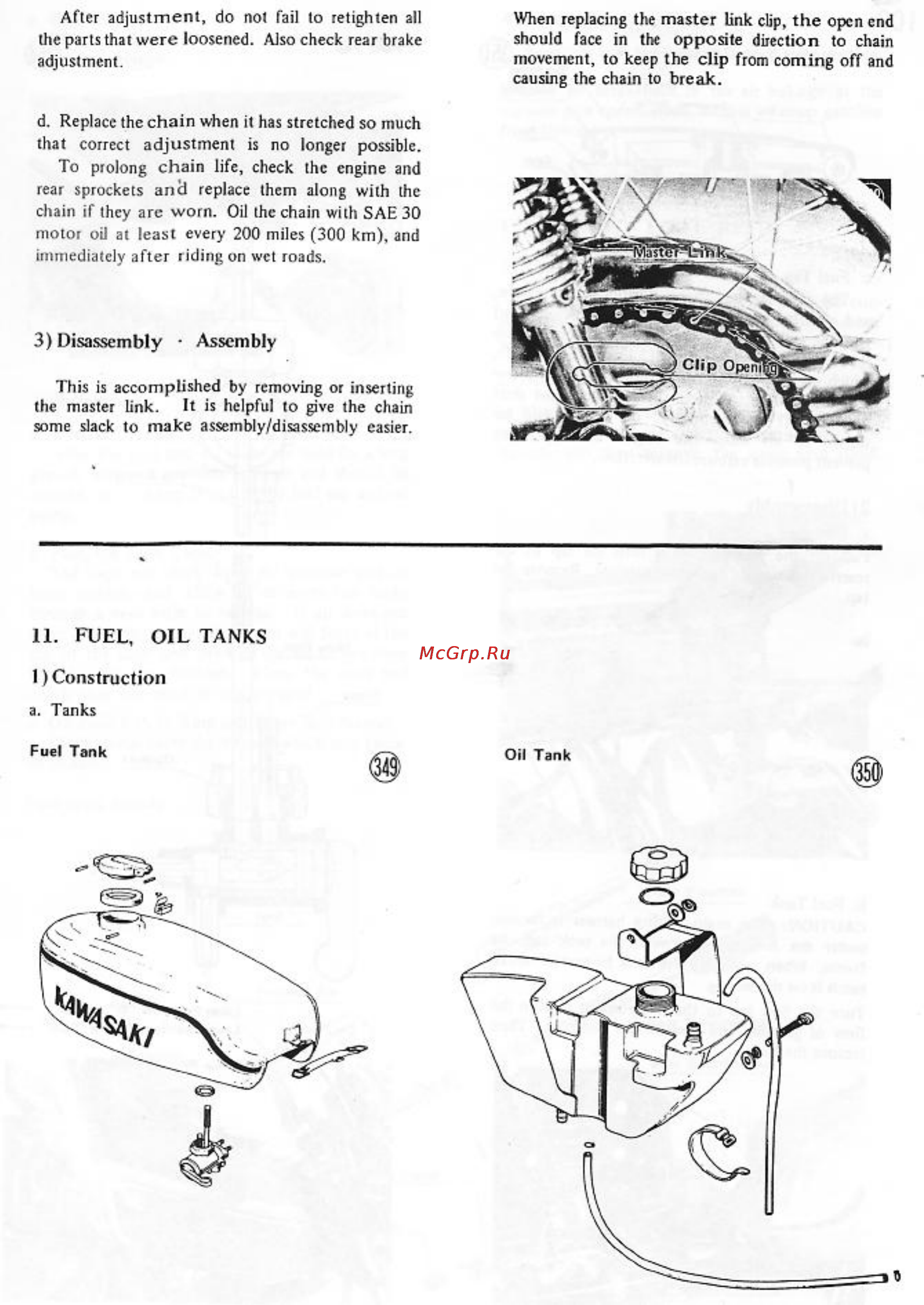

After adjustment do not fail to retighten all the parts that were loosened Also check rear brake adjustment d Replace the chain when it has stretched so much that correct adjustment is no longer possible To prolong chain life check the engine and rear sprockets and replace them along with the chain if they arc worn Oil the chain with SAE 30 motor oil at least every 200 miles 300 km and immediately after riding on wet roads 3 Disassembly Assembly This is accomplished by removing or inserting the master link It is helpful to give the chain some slack to make assembly disassembly easier 11 FUEL OIL TANKS 1 Construction a Tanks When replacing the master link clip the open end should face in the opposite direction to chain movement to keep the clip from coming off and causing the chain to break
