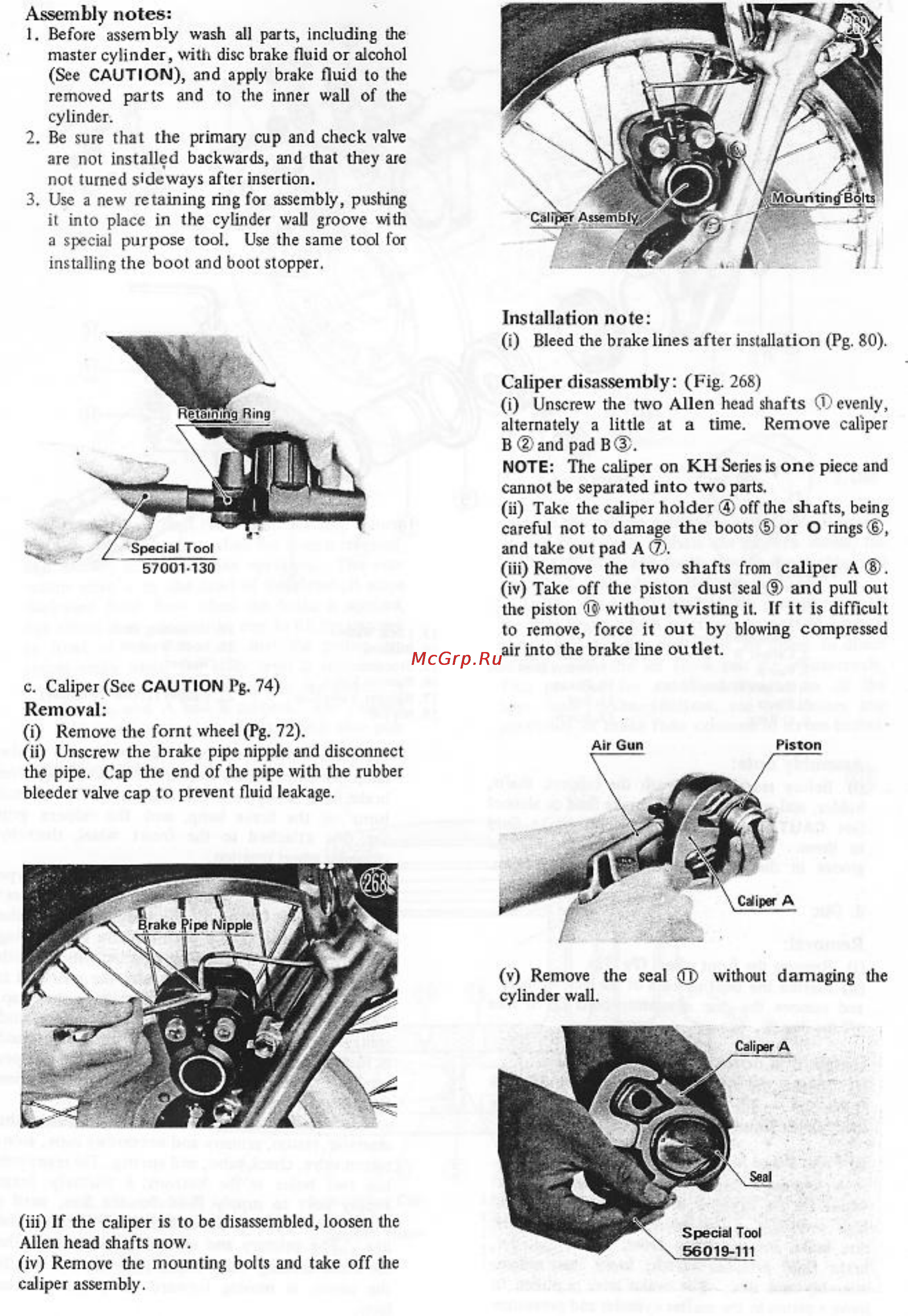

Assembly notes 1 Before assembly wash all parts including the master cylinder with disc brake fluid or alcohol See CAUTION and apply brake fluid to the removed parts and to he inner wall of the cylinder 2 Be sure that the primary cup and checkvalve are not installed backwards and that they are not turned sideways after insertion 3 Use a new retaining ring for assembly puslung it into place in the cylinder wall groove with a special purpose tool Use the same tool for installing the boot and boot stopper Installation note i Bleed the brake lines after installation Pg 80 Caliper disassembly Fig 268 57001 130 i Unscrew the two Allen head shafts eve alternately a little at a time Remove cal B and pad B NOTE The caliper on KH Scries is one piece cannot be separated into two parts ii Take the caliper holder off the shafts be careful not to damage the boots or O ring and take out pad A iii Remove the two shafts from caliper iv Take off the piston dust seal and pull the piston without twisting it If it is diffi to remove force it out by blowing compres air into the brake line outlet c Caliper Sec CAUTION Pg 74 Removal i Remove the form wheel Pg 72 ii Unscrew the brake pipe nipple and disconnect the pipe Cap the end of the pipe with the rubber bleeder valve cap to prevent fluid leakage Air Gun Piston v Remove the seal Q without damaging the cylinder wall iii If the caliper is to be disassembled loosen the Allen head shafts now iv Remove the mounting bolts and take off the
